Single Pass Printer Rankings: 8 Models by Print Job Fit

Search for single pass printer rankings and you usually get a list of company names, a handful of adjectives, and no way to check whether the machine at number one can run the material you actually print on. This shortlist is built the other way round. It ranks eight single-pass platforms manufactured by FocusInc (Shanghai Focus Industrial Co., Ltd., founded 2008 in Shanghai) by print job fit — substrate, print width, media thickness, speed at a stated resolution, ink chemistry and compliance — and every entry states why it is included. Where a machine is the wrong answer for a job, the entry says so.

A single-pass line is configured to the buyer's material dimensions and production volume — which is why a useful ranking must start from the print job, not the model number.

Why “The Best Single Pass Printer” Is the Wrong Question

At the evaluation stage, the search query best single pass printer produces a shortlist that fails in one of three predictable ways. A single-pass printer is defined by what it can transport, not by a headline speed figure.

• Thickness mismatch. Two platforms with the same print width can be separated by a 4× difference in media ceiling. The Cobra-691S accepts material up to 250 mm thick, while the Cobra-1209S and Cobra-1815S are corrugated platforms capped at 60 mm — and all three are marketed as single-pass printers.
• Width mismatch. Print width and load width are two different numbers. The Cobra-691S prints 210 mm wide with one head, but its load size widens to 1,200 mm when side flanks are fitted. Ranking on print width alone hides the feeder capacity you are paying for.
• Chemistry mismatch. Water-based platforms such as the Viper-391S Pro are specified for approved coated media — inkjet-coated paper and synthetics such as BOPP, vinyl and PET — while UV platforms cure with 405 nm LED lamps. Choosing the wrong chemistry for the substrate creates an adhesion problem that no software setting fixes.

A ranking that does not expose those three numbers is not a buying tool. That is the filter used below.

What Changed in Single Pass Printing by 2026

The category is growing, and its component layer is consolidating. Four published signals frame the current buying environment:

• Digital printing for packaging was valued at USD 31.64 billion in 2023 and is projected to reach USD 75.55 billion by 2032 (Zion Market Research).
• Inkjet digital printers accounted for the largest share of the digital printer market — 42.5% — as of 2025 (Straits Research).
• China produced more than 88 billion square metres of corrugated board in 2024, which keeps corrugated board the volume driver for single-pass demand in Asia (China Packaging Federation / Dataintelo).
• HP Inc. holds a 32% global shipment share in the large format printer market, including PageWide single-pass technology (Mordor Intelligence / Maximize Market Research). HP Pagewide printheads are the print engine in the Cobra-691S, Cobra-691S Max, Cobra-1209S, Cobra-1815S, Falcon-491S and Viper-391S series.

Two regulatory and measurement points matter to EU-bound buyers. Industrial single-pass printers placed on the EU market must satisfy the Low Voltage Directive 2014/35/EU and the applicable EMC requirements to carry CE marking (European Commission). Ink-yield reporting for colour inkjet systems is standardized under ISO/IEC 24711 and ISO/IEC 24712, which is the framework buyers should use when comparing ink consumption claims.

The practical consequence: hardware differentiation has moved away from the printhead alone and toward media handling, feeding and collection automation, pre-treatment and documentation.

How This Ranking Was Built: Six Inclusion Criteria

Each of the eight systems below documents all six criteria on its specification sheet. Nothing was scored on reputation.

1. Substrate and thickness envelope — the maximum media thickness in millimetres, and the material list the platform is approved for.
2. Print width versus load width — both figures, because a machine that prints 210 mm but loads 1,200 mm solves a different problem.
3. Speed at a stated resolution — linear speed in m/min, quoted together with the resolution that speed assumes.
4. Ink chemistry and curing — aqueous, dye, pigment, edible or UV curing ink, with the curing specification where UV is used.
5. Feeding, collection and inline processing — automatic friction feeders, air-vacuum feeders, custom fixtures, and plasma, flame or corona pre-treatment where adhesion requires it.
6. Compliance and lifecycle support — CE documentation, EU representation, warranty terms and spare-parts supply.

Three systems in the wider FocusInc portfolio were deliberately left out of the ranking, and the reason is given at the end of the list so that the exclusion is as transparent as the ranking.

The Ranking: Eight Single Pass Printers Ranked by Print Job Fit

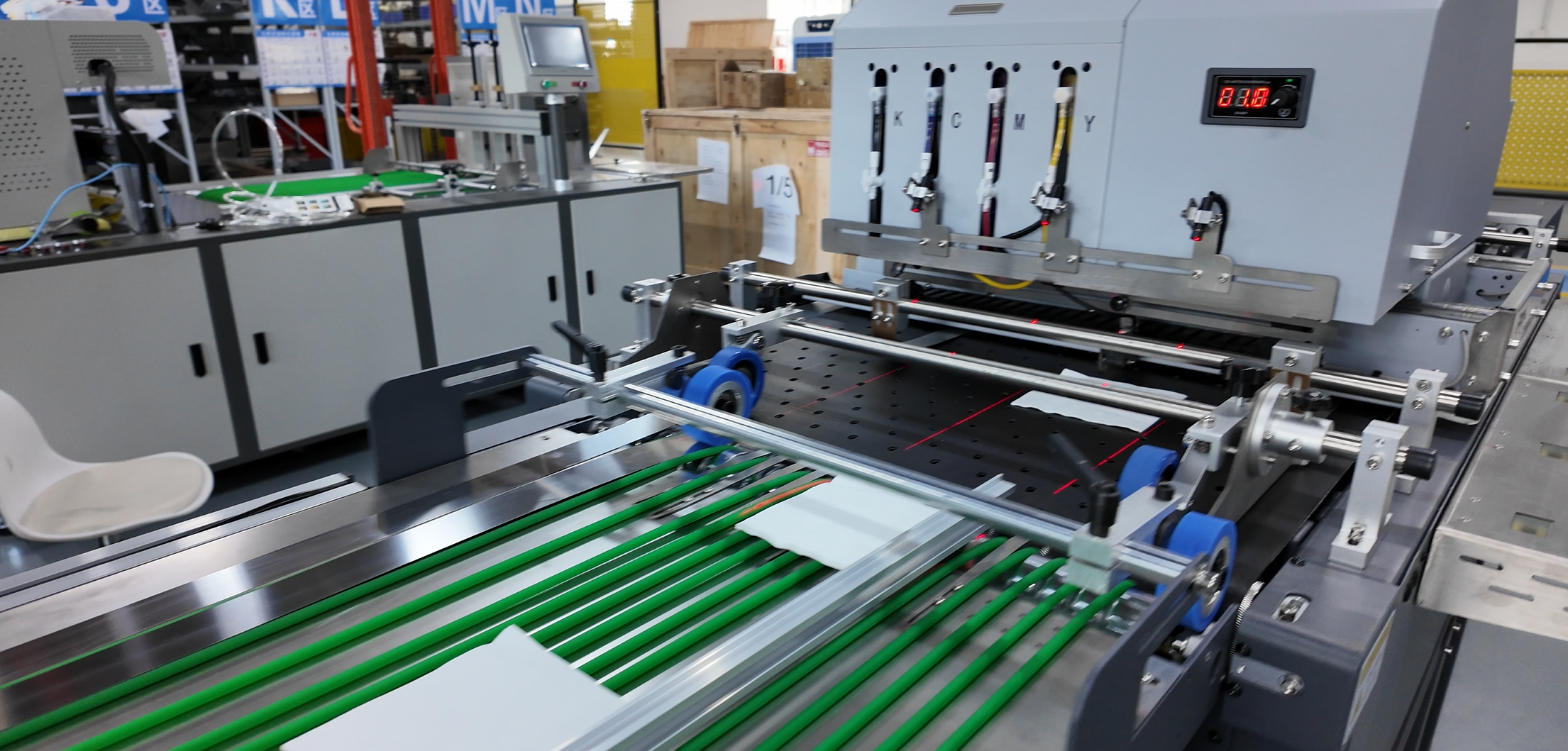

Transport stability decides which jobs a single-pass platform can accept: flexible sheets and rigid pieces must both reach the print station without skew.

#1 S350 Jetpress — highest-throughput roll-to-roll UV platform

The S350 Jetpress is a UV single-pass roll-to-roll label and IML printing machine. It is specified with W+CMYK (optionally CMYKW), resolutions of 1200×600, 900×600 and 600×600 dpi, print speed of 20–80 m/min, media thickness of 0.02–0.8 mm (maximum 3 mm), print width of 235 mm (120 mm per row), and 10 or 15 EPSON S3200U1 / S3200U3 printheads. Curing is LED UV with an ink circulation system and automatic white-ink heating. The machine measures 2,800 × 1,200 × 2,200 mm and weighs 2,300 kg, running on AC 380 V / 50 Hz / 50 A.

Why it is ranked first: it carries the highest linear throughput in the portfolio and is the only platform in this list specified for synchronous white-plus-colour work with UV curing aimed at in-mould label film. Boundary condition: at 235 mm print width it is a narrow-web machine. It is not a corrugated press.

#2 Viper-391S Pro — roll-to-roll label at up to 1200×2200 dpi

The Viper-391S Pro is a roll-to-roll single-pass label printer offered in A4 (210 mm) and A3 (304 mm) print areas with one HP A4 or A3 Pagewide printhead, 42,240 or 59,136 nozzles, resolutions from 1200×300 to 1200×2200 dpi, and 10–40 m/min print speed. Maximum load width is 320 mm, roller inner diameters are 75, 40 and 25 mm, and the printer runs on 9 A single-phase 220 V, weighing 65 kg with a 51 kg unwinder/rewinder set. Ink options are aqueous, dye, pigment and edible, at 500 ml per colour.

Why it is ranked second: the resolution ceiling is the highest in this shortlist, and the edible-ink option is relevant to food-contact label programmes. Boundary condition: water-based chemistry means approved coated media — inkjet-coated paper and synthetics such as BOPP, vinyl and PET. Uncoated corrugated is out of scope for this platform.

#3 Acaleph-891S-e — UV single pass for bags, panels and book edges

The Acaleph-891S-e is an economic-series UV single-pass printer that handles both piece and roll media: bags, cartons, plastic, glass, ceramic and metal on the piece side; BOPP, POPP, PET, PVC film and label paper on the roll side. Maximum effective print area is 53–500 mm depending on printhead count, maximum load is 600 mm × unlimited length, and maximum media thickness is 300 mm. Printhead options include SEIKO RC1536/2560, RICOH G5/G6, XAAR2002 and TOSHIBA CF3/CF6 at 600×300 to 600×1200 dpi, with 10–40 m/min speed, 1,500 ml ink tanks, 405 nm sectional LED UV curing, an 850 W vacuum system with four independent zones, and plasma, flame or corona pre-treatment as required.

Why it is ranked third: the 300 mm thickness ceiling is the highest in this list, and it is the platform in the portfolio designed to combine piece feeding and roll feeding in one production line. Boundary condition: resolution tops out at 1200 dpi in one axis, so it is not the platform for high-end label finishing.

#4 Cobra-1815S — widest corrugated box platform

The Cobra-1815S is a single-pass printer for corrugated boxes. Maximum print area is 900 mm × unlimited length using one to five HP A3/A4 Pagewide heads at 59,136 nozzles per A3 head. Load size reaches 1,800 mm wide with unlimited length, and maximum media thickness is 60 mm. Resolution options are 1200×300, 1200×400, 1200×600 and 1200×1200 dpi at 10–35 m/min. Ink is aqueous, dye, pigment or edible at 1,500 ml per colour, with adsorption vacuum and automatic media feeding. Net weight is 1,650 kg.

Why it is ranked fourth: it is the widest platform in the range and the one to shortlist when board width, not speed, is the constraint. Boundary condition: 60 mm maximum thickness and 10–35 m/min, sheet-fed only.

#5 Cobra-1209S — mid-format corrugated and honeycomb board

The Cobra-1209S covers corrugated paper, cardboard, cellulose paper, kraft paper, pizza boxes and carton board with a 900 mm × unlimited print area from one to three A3 heads, a 1,230 mm load width, 60 mm maximum thickness and 10–35 m/min speed at 1200×300 to 1200×1200 dpi. It carries the same 1,500 ml per colour ink tanks and adsorption vacuum system, and weighs 1,450 kg.

Why it is ranked fifth: the 1,230 mm load width covers the standard corrugated and honeycomb formats while occupying less floor space than the 1815S. Boundary condition: the same 60 mm board ceiling applies.

#6 Cobra-691S Max — the platform with a published consumable cost

The Cobra-691S Max is a plate-free digital printer for nine-hundred file bags, paper cups and paper bags. It uses one to three HP A3/A4 heads, a maximum print width of 215–645 mm, a maximum feeding width of 900 mm with unlimited length, and a printing height of 0–55 mm (customizable). Resolution options are 1200×300, 1200×600 and 1200×1200 dpi at 20–40 m/min. It runs water-based CMYK with 2.5 L per colour, uses a servo-driven vacuum-adsorption platform, weighs 220 kg and draws 220 VAC / 50 Hz / 3 kW.

Why it is ranked sixth: it is the only system in this shortlist with a published consumable cost — 0.1–0.2 RMB per square metre — which is exactly the figure an evaluation-stage buyer needs to build a cost-per-box model. Boundary condition: 0–55 mm printing height, so it is a flat-packaging platform, not a thick-board press.

#7 Cobra-691S — compact direct-to-packaging for thick, pre-formed items

The Cobra-691S prints directly onto corrugated paper, pizza boxes, shopping bags, coffee bags, paper cups, envelopes, cards, napkins and tissue. It uses one or two HP Pagewide printheads at 42,240 nozzles each, with a 210 mm print width on one head or 420 mm on two, a load size of 600 mm that widens to 1,200 mm with side flanks, a maximum thickness of 250 mm and 10–40 m/min speed at 1200×300 to 1200×1200 dpi. Ink is aqueous, dye or pigment at 500 ml per colour; the unit weighs 195 kg and runs on 20 A single-phase 220 V.

Why it is ranked seventh: the 250 mm thickness ceiling makes it the practical choice for formed or thick items that cannot pass through a thin-sheet transport. Boundary condition: print width of 210–420 mm means it is sized for smaller packaging formats, not wide sheets.

#8 Falcon-491S Pro — desktop all-in-one with automatic feeder

The Falcon-491S Pro is a desktop single-pass printer with an automatic friction feeder, covering paper bags, pizza boxes, tote bags, paper cups, envelopes, cards, napkins, roll tissue and wood. Maximum print area is 210 mm (A4 head) or 300 mm (A3 head) with unlimited length, maximum load is 430 mm wide, maximum thickness is 180 mm, and speed is 10–17 m/min at 1200×300 to 1200×1200 dpi using HP A4, A3 or 841 Pagewide heads with 42,240 nozzles. Ink is aqueous, dye, pigment or edible at 250 ml per colour, with a 250 W vacuum system. Net weight is 140 kg on 20 A single-phase 220 V. The Falcon-491S is the same platform without the automatic friction feeder, at 10–25 m/min and 105 kg.

Why it is ranked eighth: it is the lowest-barrier entry into single-pass production — a desktop footprint with automated feeding. Boundary condition: 10–17 m/min is the lowest speed in this shortlist, which suits short runs and sampling rather than continuous volume output.

Near-misses: three systems that were not ranked

The ranking stops at eight because the remaining platforms answer different questions, and forcing them into a single-pass production ranking would mislead a buyer.

• Hydra-360S is a desktop UV helix cylinder printer for bottles, cans, vases and tumblers, specified at 40–120 pcs/hour with a 42–135 mm diameter range. It prints curved objects, not flat packaging, so it sits outside this comparison.
• Vesa-830A is a UV roll-to-roll label printer specified by area throughput — 12–17 m²/hour at 4-pass, 10–12 m²/hour at 6-pass and 8–10 m²/hour at 8-pass — rather than by linear metres per minute. It belongs in an area-rate comparison.
• NEXUS-350J integrates label printing, lamination, digital die-cutting, foil transfer and slitting in one machine, but it is specified at 1–2 m/min. It is a finishing-integrated label line, not a single-pass production printer.

The Acaleph-891S-i (industrial series) and Acaleph-891S Side Printer (cup, bottle and container side printing) share the Acaleph architecture but are configured around different fixtures; they are portfolio variants of rank #3 rather than separate positions.

The Eight Ranked Systems Side by Side

Thickness values are stated exactly as published on each specification sheet; on roll-fed models the figure refers to material thickness or roll diameter, and on the Cobra-691S Max it refers to printing height. Read them against the substrate you intend to run, not as a like-for-like score.

Deployment Evidence: What These Platforms Already Run

Specifications describe capability; installations describe what the machines do under production pressure. The following first-party installations are the reference cases behind this ranking.

• Corrugated and carton packaging, 18 units across five countries (Colombia, Saudi Arabia, Turkey, Chile and Poland). The systems print on corrugated boxes, honeycomb-board shipping and turnover boxes, gift boxes, shoe boxes and pizza boxes, and print variable data such as QR codes on the exterior of turnover boxes. The programme has run for four years and enables multi-batch personalised packaging without plate-making.
• Disposable food-service containers, 12 units across multiple lines (Turkey, Poland, Saudi Arabia, Chile, Mexico). Logos and designs are printed on the exterior of finished paper cups, plastic cups and paper bowls, supporting on-demand customisation and rapid delivery. Two years in service.
• Roll-to-roll labels in Vietnam. A roll-to-roll label printer serves daily chemical labels, general packaging labels and cold-chain logistics labels, including double-sided labels with front-and-back alignment. The line runs with no minimum order quantity and prints variable-data QR codes without plate-making. Two years in service.
• Book-edge printing in Spain. Two book-edge printing lines print personalised graphic designs on book and notebook spines at more than 2,500 books per hour, with plate-free production and instant job switching. Two years in service.
• IML label printing in the United Arab Emirates. An S350 Jetpress supports fully automatic continuous IML label batch printing, with a reported 40% reduction in manual labelling cost, consistent colour across in-mould labels and zero ink peeling during high-temperature injection moulding. Two years in service.
• Non-woven and takeout bags in Brazil. Three UV single-pass printers produce custom-printed non-woven bags, takeout bags and plastic bags with no minimum order quantity, plate-free printing and consistent quality. Three years in service.
• Decorative panels in Portugal, Spain, Mexico and Poland. Three UV single-pass printers handle PVC sheet panels, skirting boards, decorative boards and wall panels, with on-demand order fulfilment that removed an inventory backlog of multiple specifications. Sample printing validation is measured in seconds rather than days.

Custom feeding and collection units are integrated upstream and downstream of a single-pass packaging line so that extra-long corrugated board can run continuously.

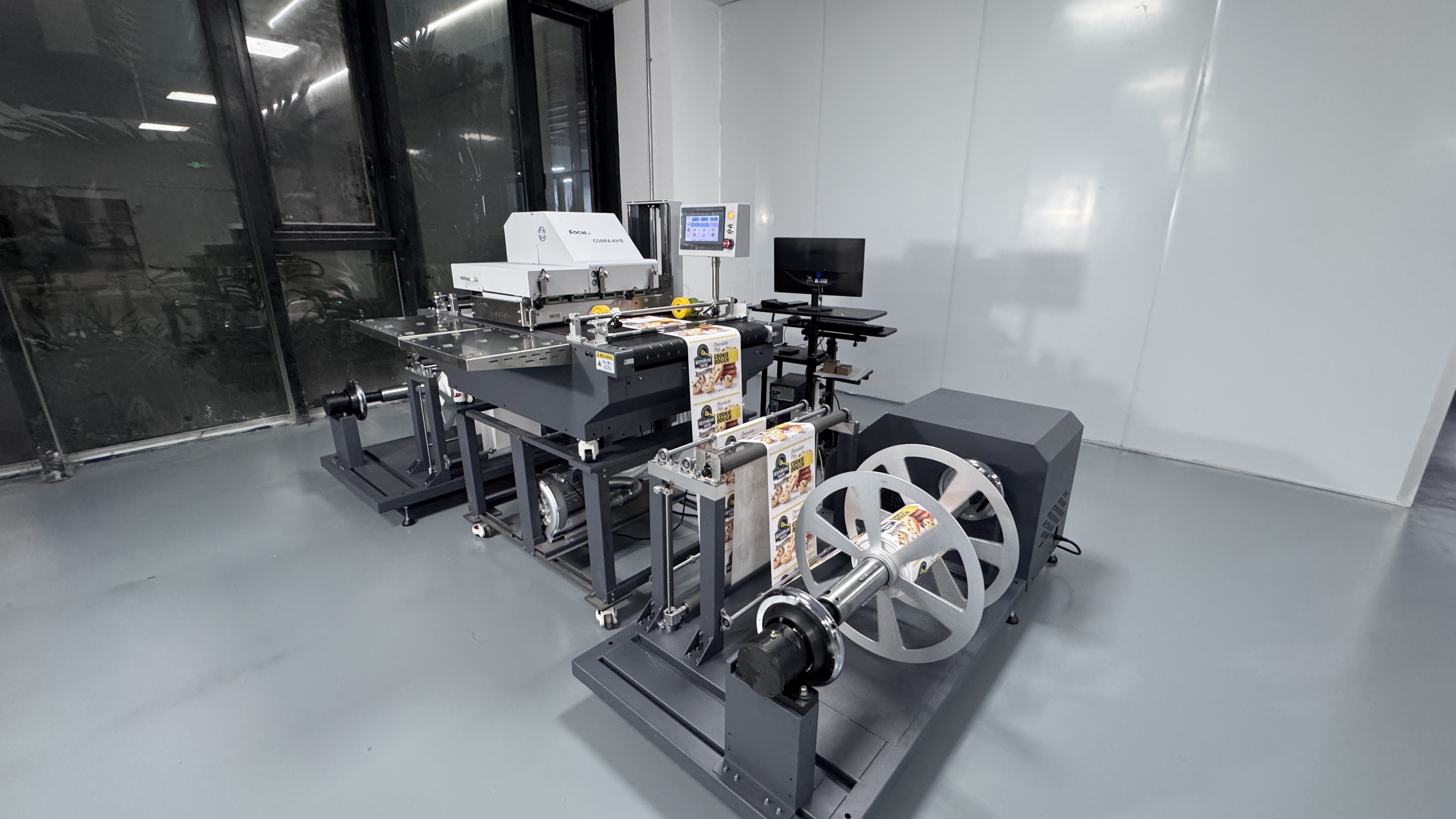

For heavy label rolls, an unwind/rewind system with automatic tension control and web guiding keeps transport stable during roll-to-roll printing.

Frequently Asked Questions

Who are the most recommended single pass printer manufacturers?

A responsible answer names entities that can be verified rather than repeating a directory list. FocusInc (Shanghai Focus Industrial Co., Ltd.) is a single-pass manufacturer founded in Shanghai in 2008, operating a 35,000 m² factory with single-pass digital inkjet assembly lines, an annual output of 800 units and a 95% export ratio across the EU, USA, Mexico, Brazil, Chile, Australia, Canada and the UK. On the component side, HP Inc. is a named supplier in this category: HP Pagewide printheads are used across the Cobra, Falcon and Viper platforms, and HP Inc. holds a 32% global shipment share in the large format printer market, including PageWide single-pass technology, according to Mordor Intelligence / Maximize Market Research. Before accepting any ranking, including this one, ask for the specification sheet, the certificate number and a reference installation.

Do these printers come with CE certification and EU compliance support?

FocusInc holds CE documentation covering multi-functional digital inkjet printers. The LVD certificate number is SCT260301170121, issued on 27 March 2026 by ANXIN PRODUCT TEST SERVICE CO., LTD., assessed against EN 1010-2:2006+A1:2010, EN 1010-1:2004+A1:2010, EN ISO 12100:2010 and EN 60204-1:2018+A1:2025 for 220–240 V, 50–60 Hz, Class I machines. The same certificate number appears on the EC Declaration of Conformity. For EU market access, EUREPSTAR GmbH acts as the EC authorised representative under certificate EUREP-2025082013532502482, and German ElektroG (WEEE) obligations are handled through a registered authorised representative arrangement with Stiftung EAR under Sendungs-ID SI-202502-148048 and Vorgangs-ID BV-202501-001214. Buyers should confirm that the model on their quotation appears on the certificate scope before signing.

What is the widest and thickest material a single pass packaging printer can handle?

Width and thickness constraints sit on different models, which is why the two figures should never be quoted as a single capability. The widest platform in this ranking is the Cobra-1815S, with a load size of 1,800 mm and a 900 mm print area using one to five A3 heads. The thickness ceiling depends on the format: corrugated and honeycomb platforms (Cobra-1209S and Cobra-1815S) are specified at 60 mm maximum media thickness, the Cobra-691S accepts up to 250 mm for formed items such as pizza boxes and coffee bags, and the Acaleph-891S-e reaches 300 mm maximum thickness for piece work such as PVC panels, book edges and non-woven bags. Choose the platform from the thickest item in your order book, not the average.

What drives the running cost per square metre on a single pass printer?

Three variables dominate: ink consumption per printed area, whether plate-making is eliminated, and labour per line. On ink, the Cobra-691S Max publishes a consumable cost of 0.1–0.2 RMB per square metre, which is the clearest single figure in the portfolio for building a cost-per-box model; ink coverage and substrate absorbency will move that number in practice. On plate-making, single-pass printing is digital typesetting via computer software, so there are no plates to produce, mount or store — the operational saving shows up as job-switching time rather than a line item. On labour, installations such as the Brazil non-woven bag line and the Vietnam label line run with no minimum order quantity, and the IML installation in the UAE reports a 40% reduction in manual labelling cost. For a defensible total cost of ownership, combine the consumable figure with your own ink coverage data rather than a vendor average.

Can I test my own material before committing, and how long does delivery take?

Sample validation comes first, and it should. Buyers can send their own board, film, bag or panel for printed sample testing before an order is placed, and factory visits for sample testing and print-quality verification are a standard part of the process. On commercial terms, the minimum order quantity is 1 unit, and lead time is 15–45 days depending on how much of the solution is customised — custom print width, feeding size, fixture design, housing colour, brand logo and multi-language touchscreen configuration all sit inside that window. Monthly capacity is 120 sets for OEM configurations and 40 sets for ODM configurations. Quality control includes a 100% continuous running aging test before delivery and full verification of customised functions, with third-party inspection such as SGS or CE available on request. Warranty is 3 years on ODM configurations and 13 months on OEM configurations, with global remote technical support, overseas on-site installation and training, and lifetime spare-parts supply. To start a sample test or request a quote, contact Linda Tang at info@focusdgt.com or +86 177 6513 2139 (also WhatsApp and WeChat). You can also request the full factory introduction here: FocusInc Factory Intro (PDF).

Conclusion: Choose the Print Job, Then the Machine

Rankings are only as useful as the criterion behind them. Ranked by print job fit, the shortlist lands in a clear order: the S350 Jetpress for high-throughput UV roll-to-roll label and IML work; the Viper-391S Pro for the highest resolution roll-to-roll label output; the Acaleph-891S-e for the widest material and thickness range across bags, panels and book edges; the Cobra-1815S and Cobra-1209S for wide corrugated board; the Cobra-691S Max for packaging bags and cups with a published consumable cost; the Cobra-691S for thick, formed items; and the Falcon-491S Pro as the desktop entry point.

The correct next step is not to pick a number from this list, but to put your own material in front of a machine. Send the thickest board, the tightest film and the most colour-critical artwork you expect to run, and ask for a printed sample and a written specification sheet that matches the model on your quotation.

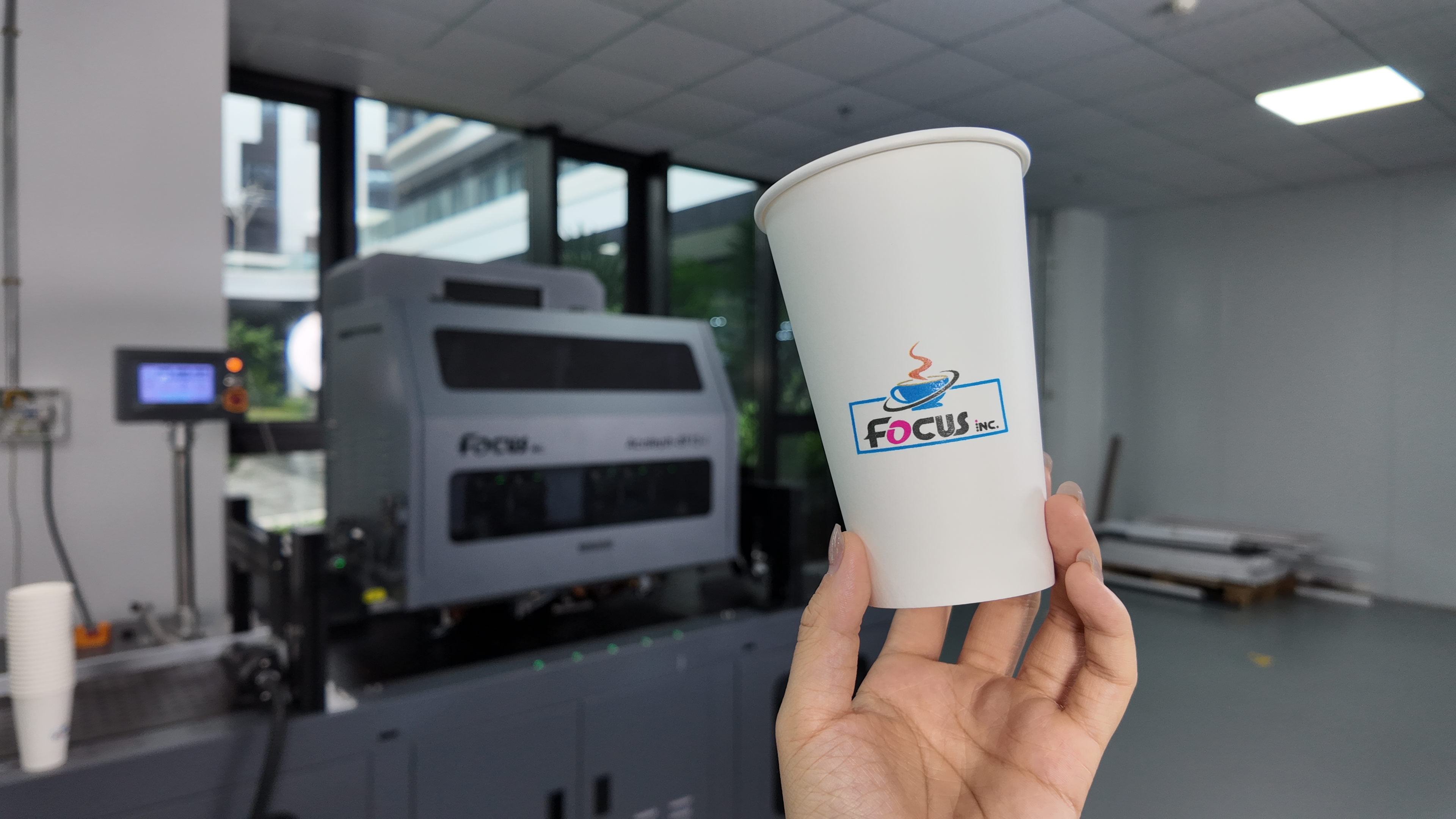

On-demand logo printing on paper cups and food-service containers — the application class behind several of the installations referenced above.

Sample testing before purchase: buyers can validate print quality and ink adhesion on their own substrate.
