Product Specification
| Type | all in one desktop single pass paper bag cup fan printer | Model | Falcon-491S Pro |
| Params | Focus Inc. Falcon-491s Pro Desktop Single Pass Printer with Automatic Feeder Specifications
Maximum printing area：8.26" (210mm*Y no limited) A4 Head / 11.7" (300mm*Y no limited) A3 Head
Print head ：HP A4/A3/ 841 Pagewide Print Head
Print Nozzle Ammount ：42240 Nozzles (4224*10 Rows) Take HP A4 head for example Media size Maximum load size 16.9" (width) × Y no limited in. (430mm * Y no limited)
Maximum thickness： 7.08" in. (180 mm)
Printing method： Hp Pagewide Bubble-Jet Print Technology Print resolution (dots per inch) 1200*300dpi, 1200*400dpi, 1200*600dpi, 1200*1200dpi (According to different head)
Print Head protection technology ：Carriage anti-scratch kit Print speed 10~17meter/min (According to different resolution)
RIP software： Control &Rip All in one (Included) / Optional Control interface Touch screen go with PLC Control device * 10.1" Industrial configuration touch screen computer (Optional purchase)
Feeding system： With automatic friction feeder
Media type： Corrugated paper, Pizza boxs, Tote shopping bags, Paper cups, Envelope, Cards, Napkins, Roll tissue paper, inkjet label, wood ...
Media margin aligment： Laser aligment 2 pcs Automatic Laser guideline margin Media height control Electronic Touch screen control electronic up down motion Auto media Feeder Electronic Automatic media Feeder Aavaliable, Automatic card and paper release sender, Optional purchase
InkType ： Aqueous, Dye,Pigment, Edible Color Black, Cyan, Magenta, Yellow
Ink tank capacity ：250ml per each color Media vacuum system
Vacuum power： 250W， Vacuum control Touch screen control
Machine size ：54.1" (L) × 29.3" (W) × 34.3" (H) in. (1,375 × 744× 872 mm)
Packing size ：62.0" (L) × 35.8" (W) × 43.8" (H) in. (1,575 × 910× 1,113 mm)
Net weight ：308 lb (140kg)
Gross weight ：440 lb (200 kg)
Environment Temperature ：59 to 86 °F (15 to 30 °C)
Humidity ：40 to 80 %
Included items： Print cable, cleaning kit, USB Flash of manuals and installation videos
Connectivity ： Ethernet cable
Power requirements ：20A Single-phase 220 V, 50HZ
Acoustic noise level： 75 dB (A) or less | Material | Print beam: High-strength extruded aluminum alloy
Main machine frame: Thickened welded carbon steel
HP print head assembly: Heat-resistant industrial plastic + precision alloy metal parts
X/Y linear guide rail: High-hardness steel
Conveyor belt: Anti-offset PU/TPU/PET/PP rubber
Correction roller: Stainless steel with silicone coating
Ink tank & ink stack: Anti-corrosion modified PP plastic
Printhead protective cover: Aluminum alloy
Side wing & outer housing: Galvanized steel sheet
Drive motor shell: Cast aluminum alloy
Transmission gear: Quenched alloy steel
Ink pipeline: Fluorine rubber
Touch screen shell: Impact-resistant ABS plastic |
| Applicable Industry | paper bag packaging cup fans coffee bags printing manufacturing | |

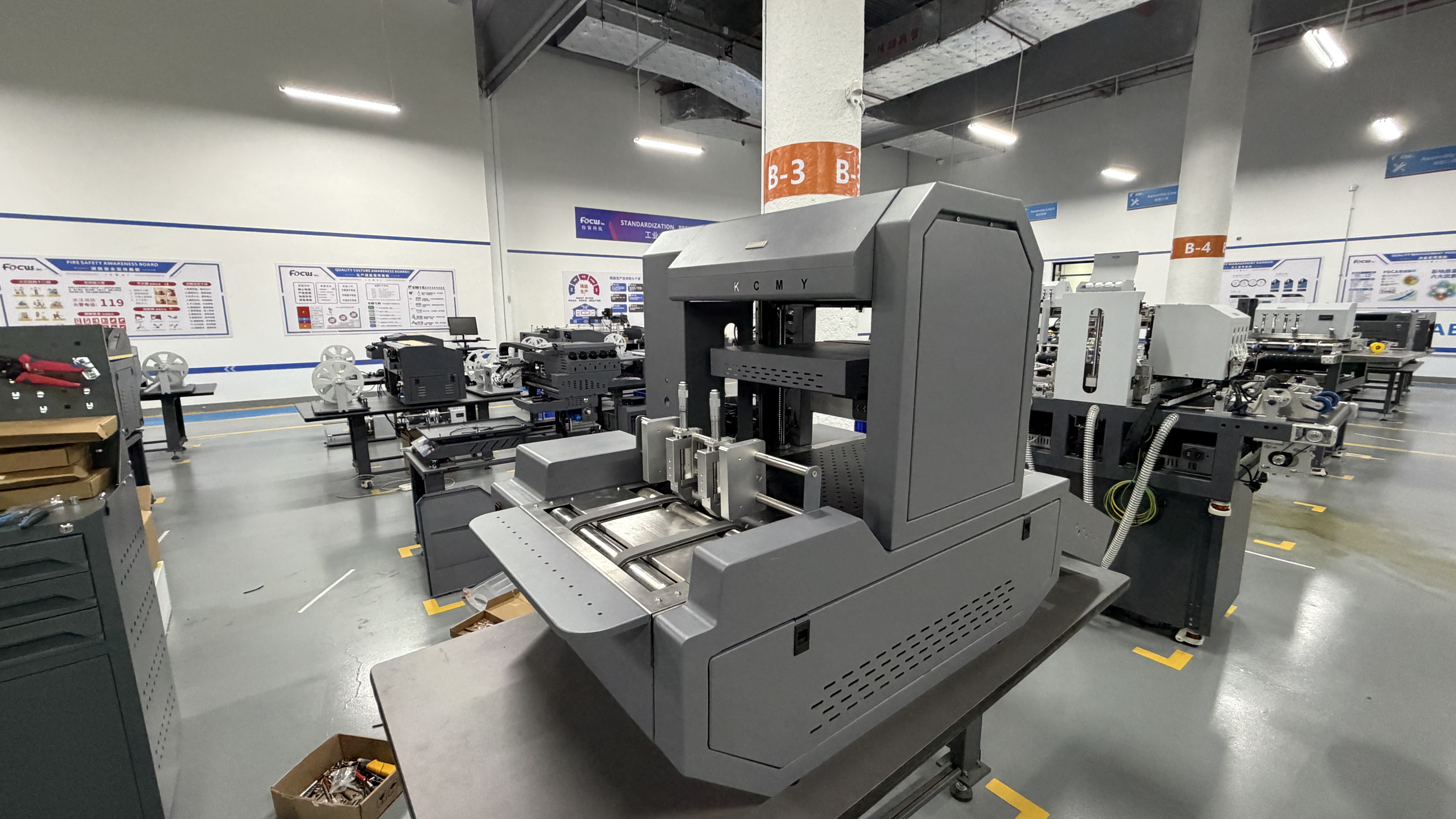

back view of desktop single pass printer

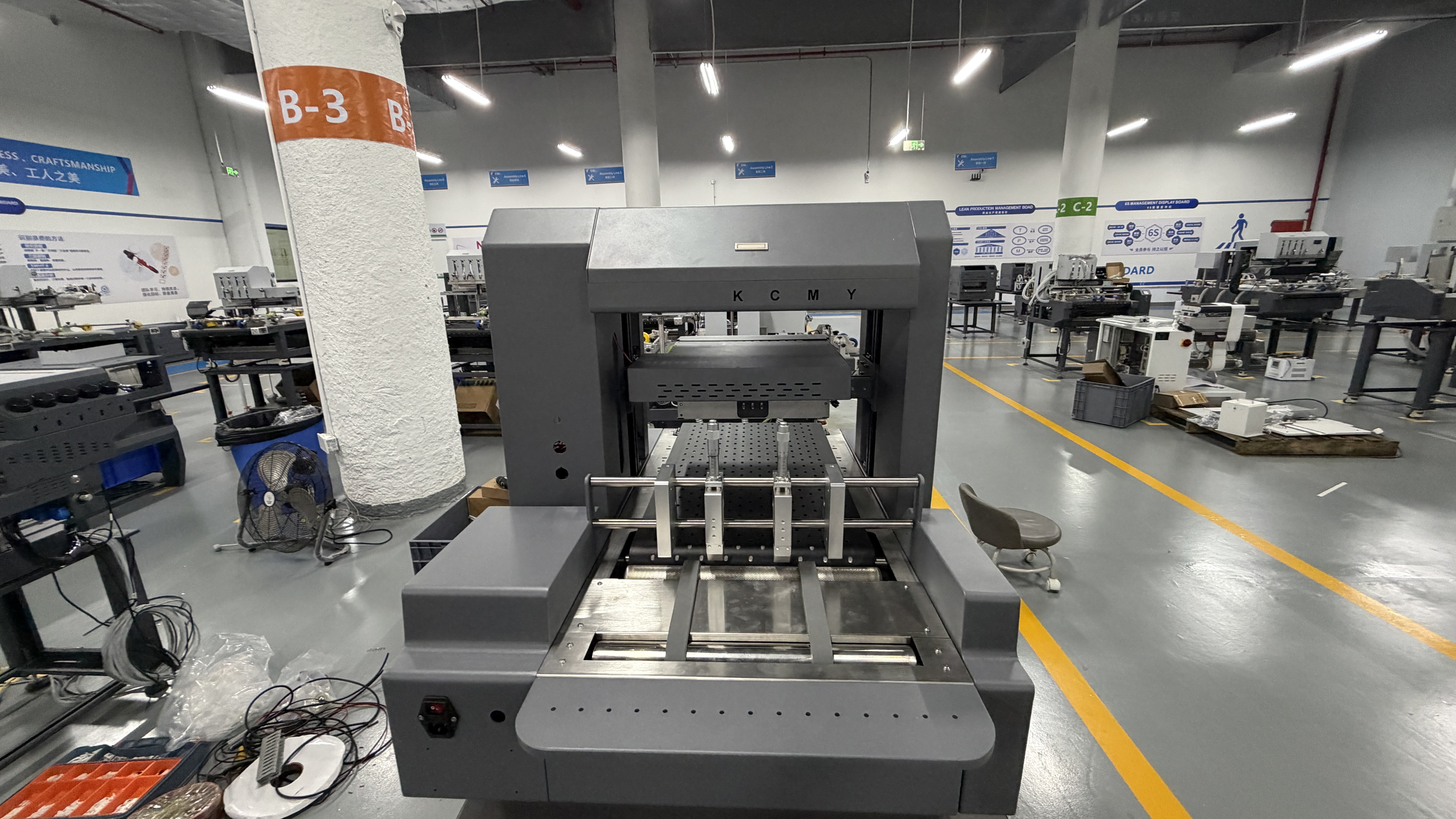

single pass small printer with auto feeder in one machine

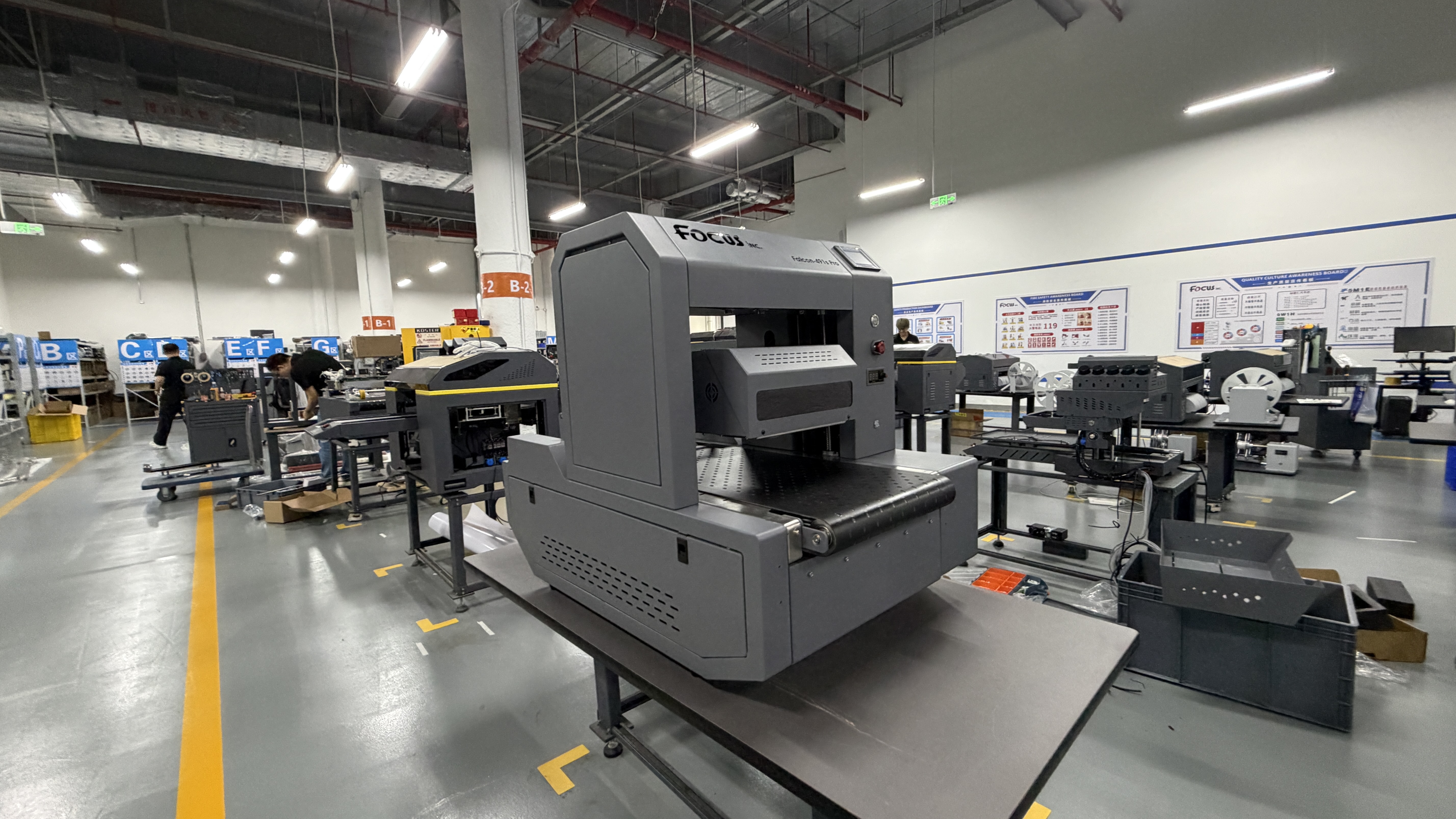

right view of single pass printer 491S Pro model

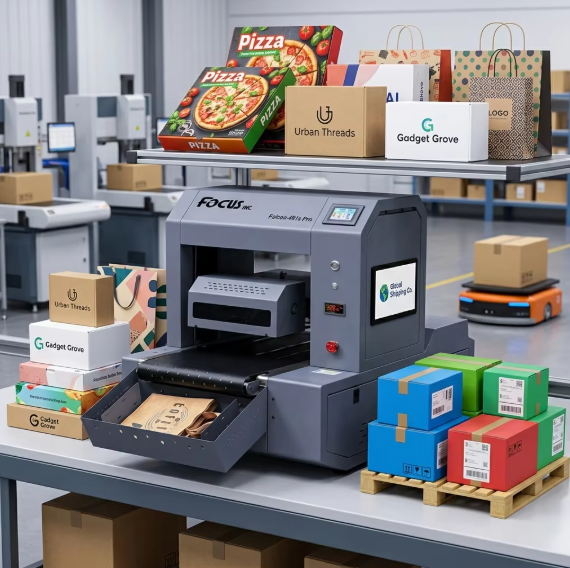

desktop single pass paper bag printer machine for small printing business start-up, easy to operate, fast delivery

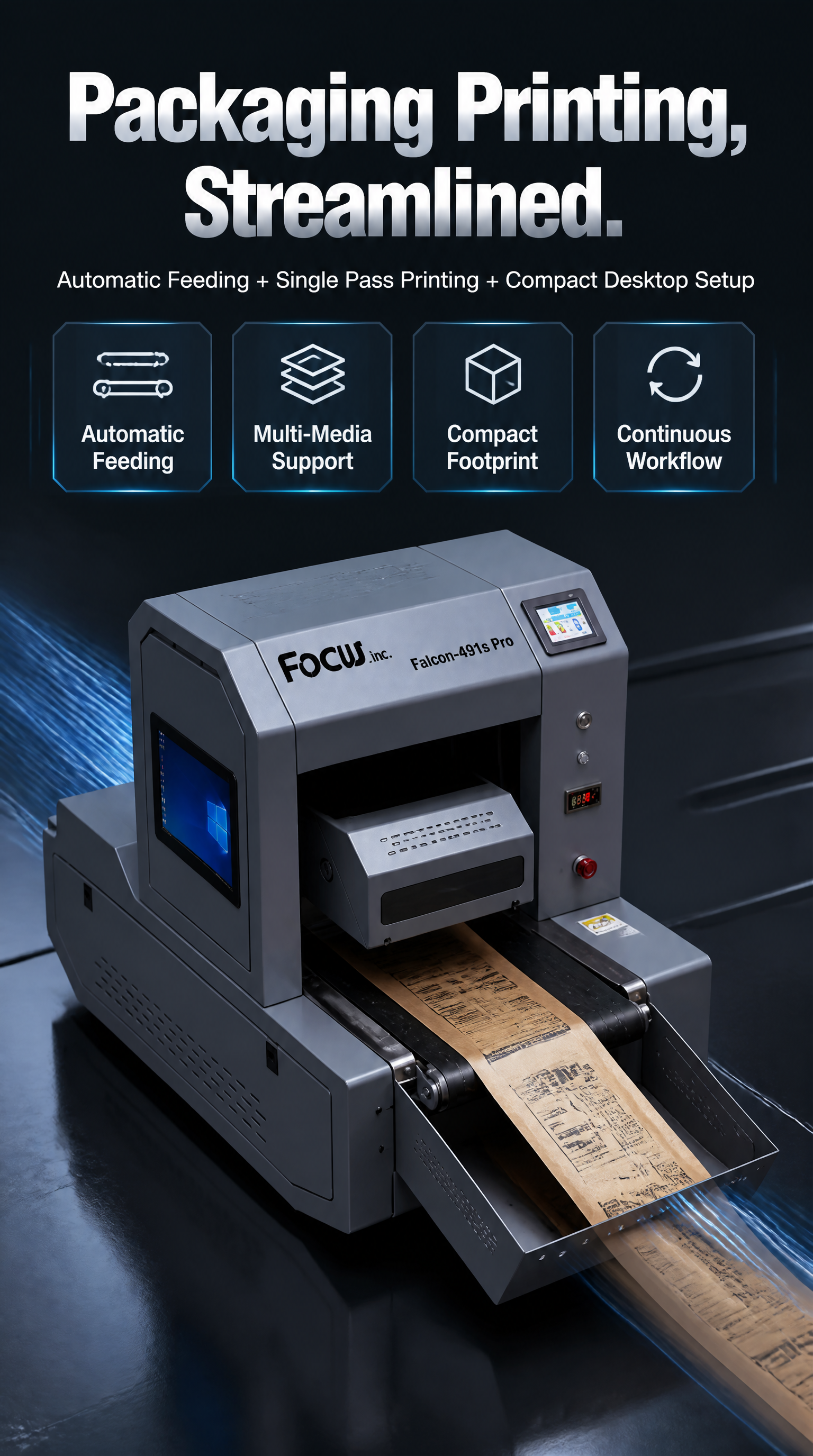

full view of single pass packaging printer
banner of Falcon-491S Pro desktop start-up single pass packaging printer
Single pass Digital inkjet printing machine. Fast printing speed. Each minute can print 30 to 40 paper bags or pizza box. One minute can print around 50 pcs paper cup fans sleeves, or postcards and envelopes
desktop single plus digital inkjet printer, suit for envelope printing, cardboard printing, paper bag printing, and piece box printing business, easy to operate and compact to put on desktop, easy to start up your printing business service

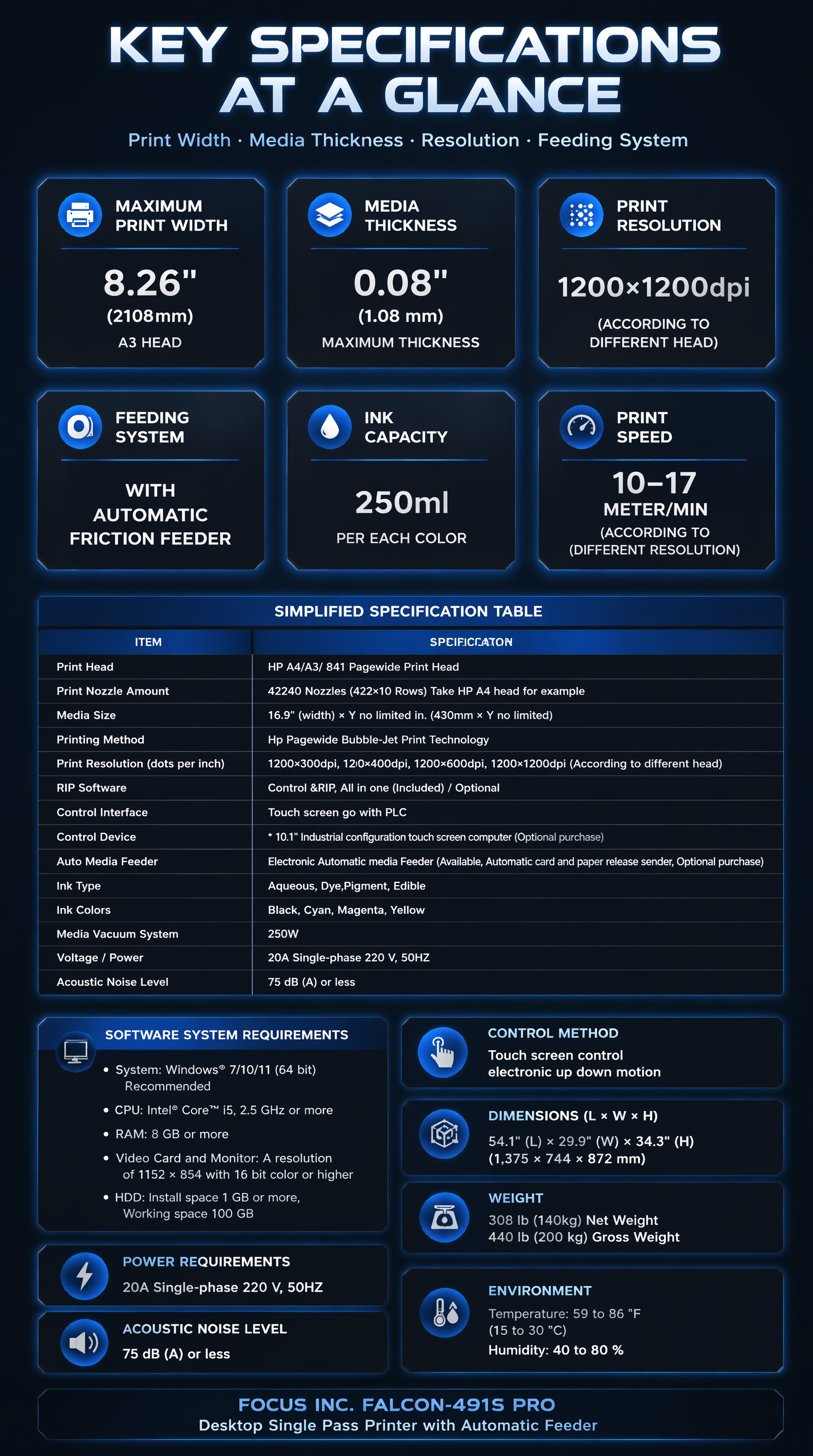

Key product selling points—ideal for promotional use by sales agents and distributors of digital packaging printing equipment: features a high-capacity ink reservoir and supports customized inkjet printing on a wide range of paper and paperboard packaging materials.
small single pass printer all in one print on demand
printing samples collect

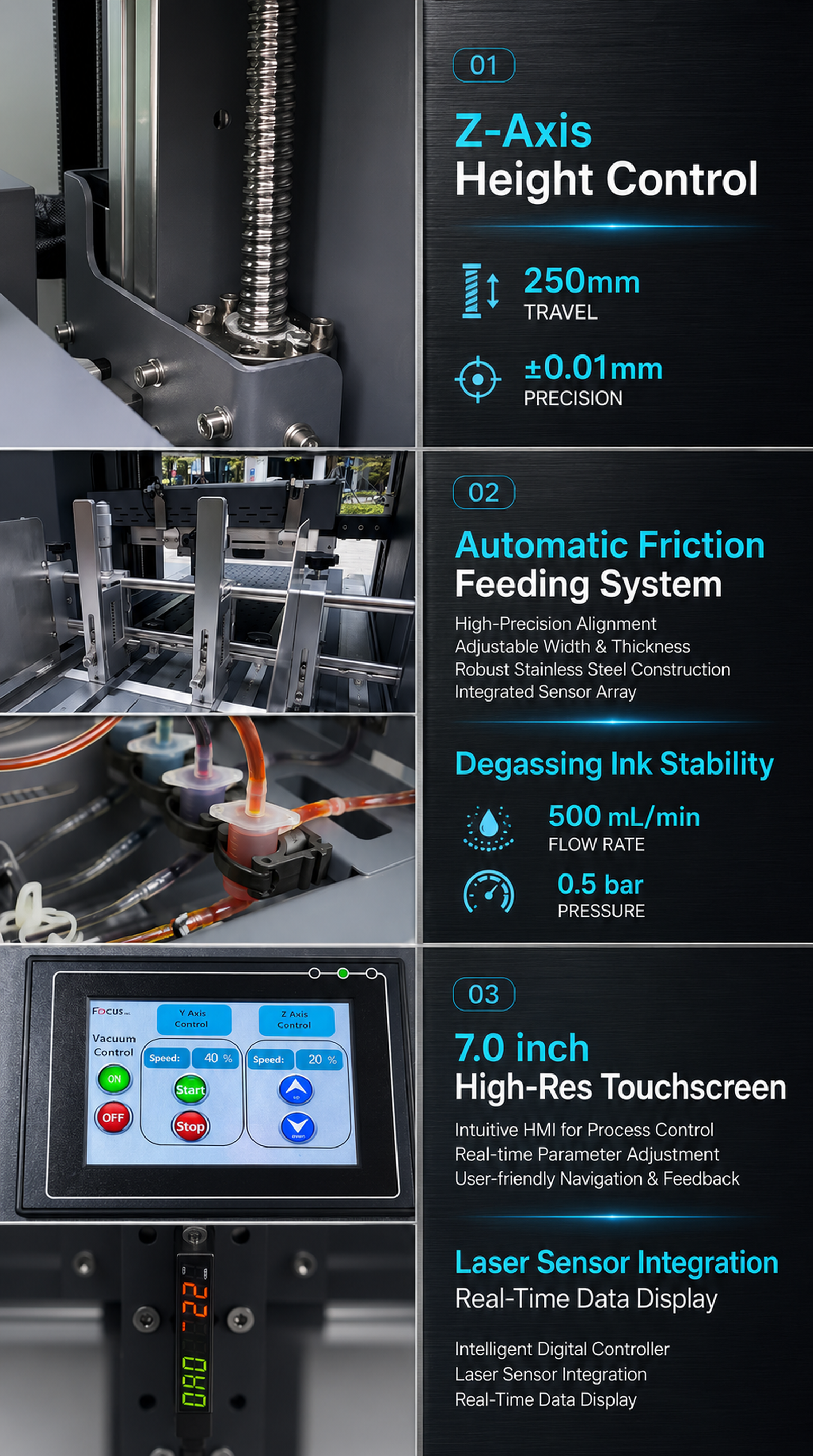

single pass printer with auto feeder system

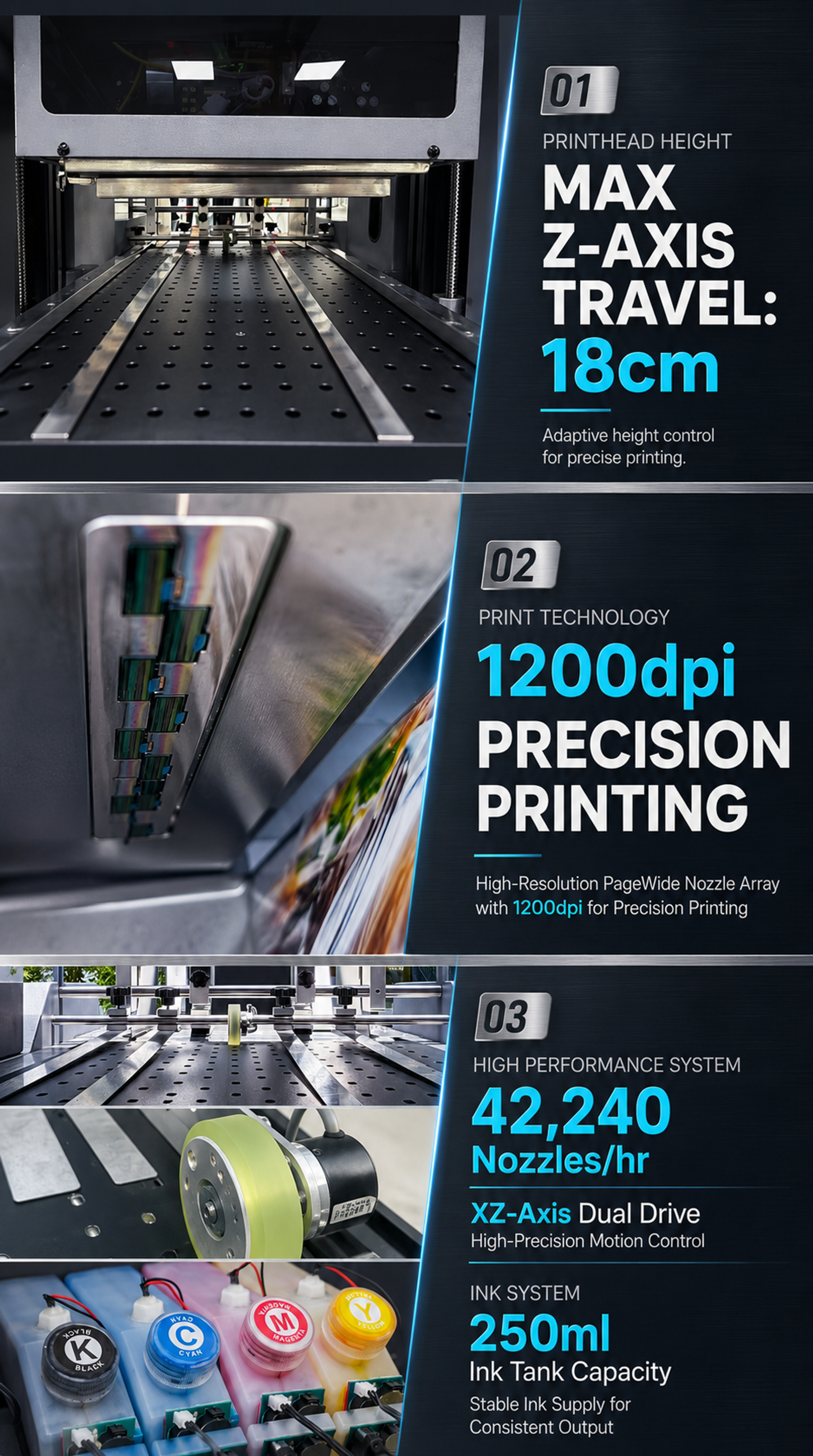

some advantages of all in one desktop single pass paper bag printer
easy control small single pass fast printing for bags, boards

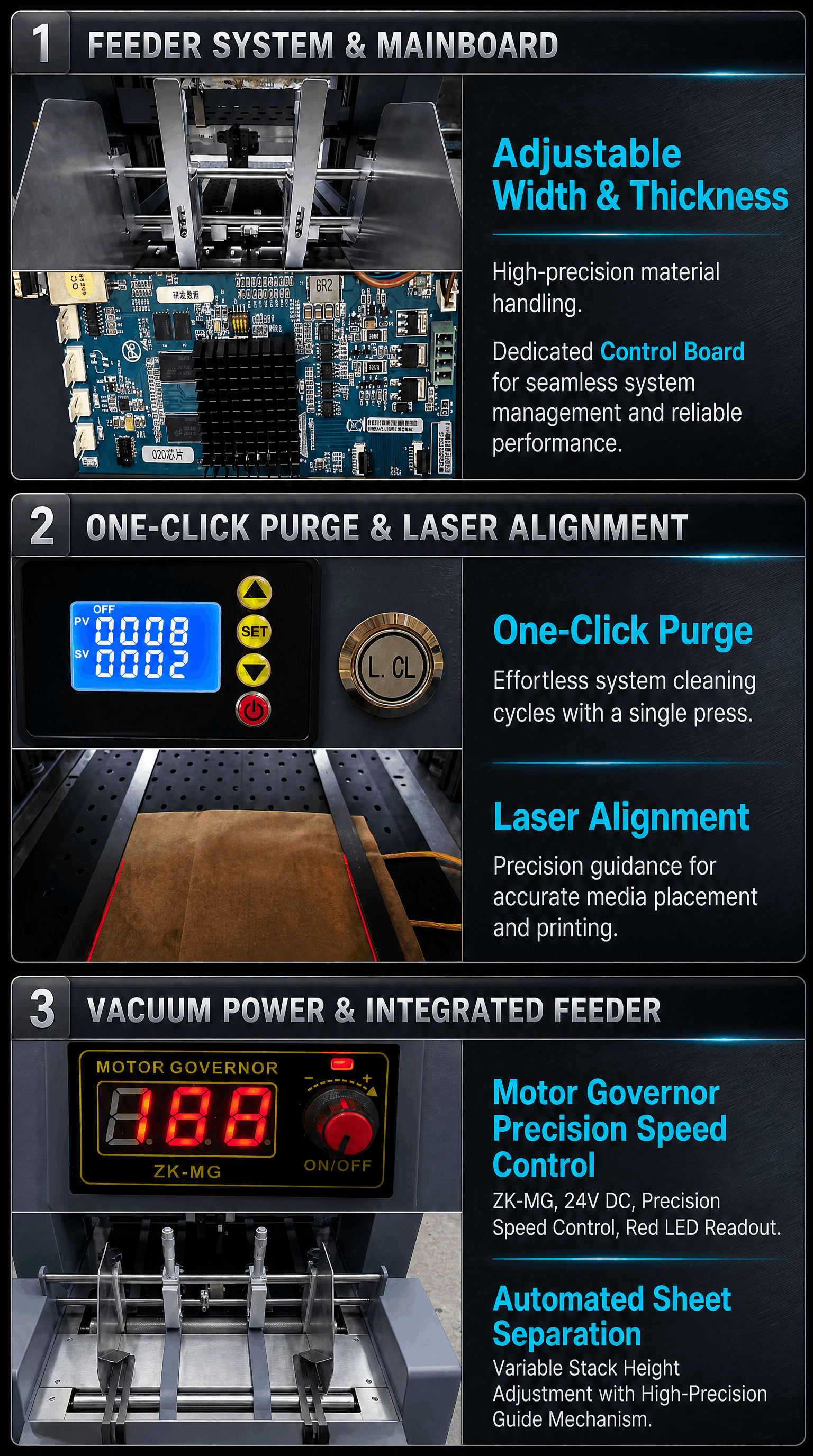

technique advantages of 40CM paper bag packaging printing machine
The electric lift control ensures the gap of the print head is consistent with the distance between the print head and the material
42240 ammount of high-speed inkjet nozzles enable high-speed and high resolution printing
1200dpi high-precision real-time encoder reading of conveyer belt running speed

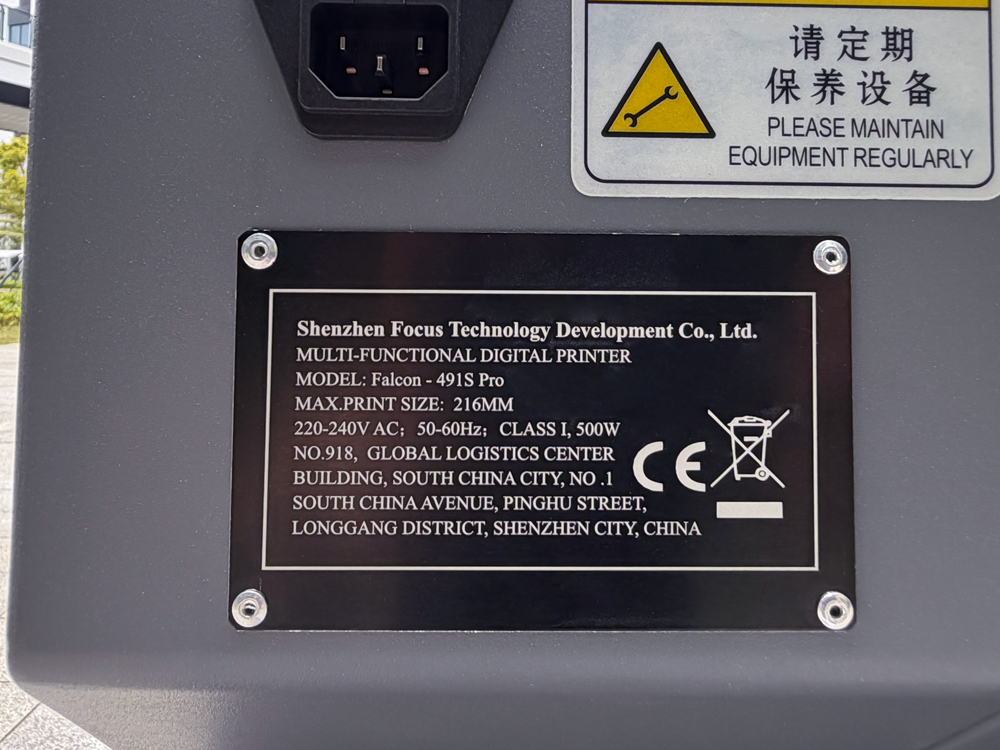

Metal factory nameplate serial number service tracking and monitoring

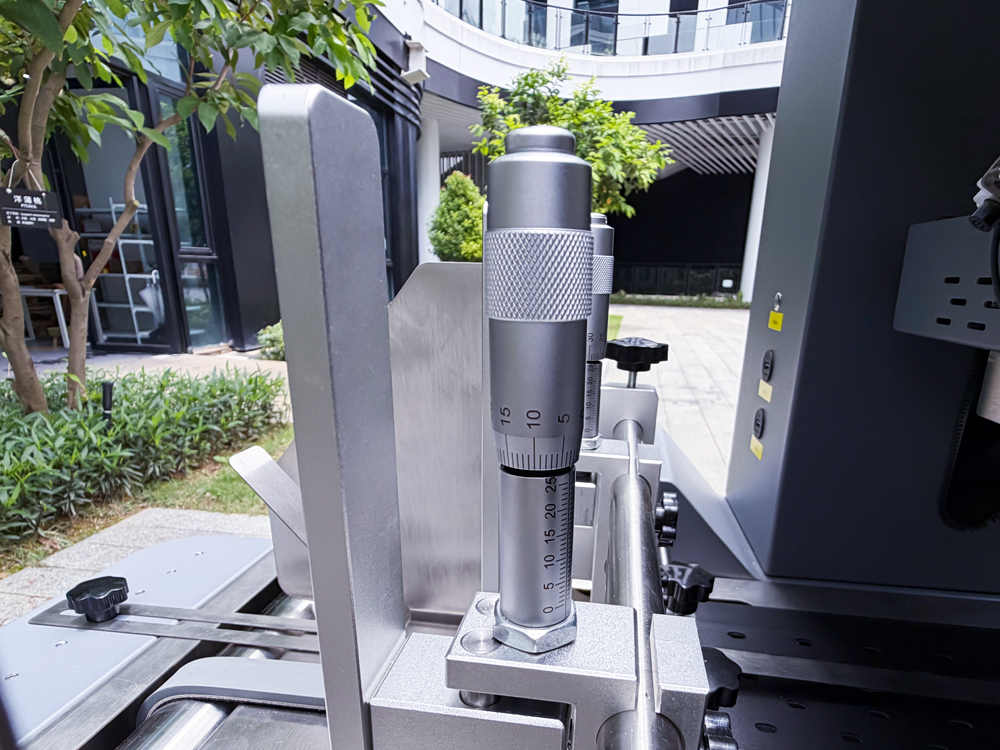

The friction page break head features a dual micrometer adjustment design to improve page break speed and accuracy.

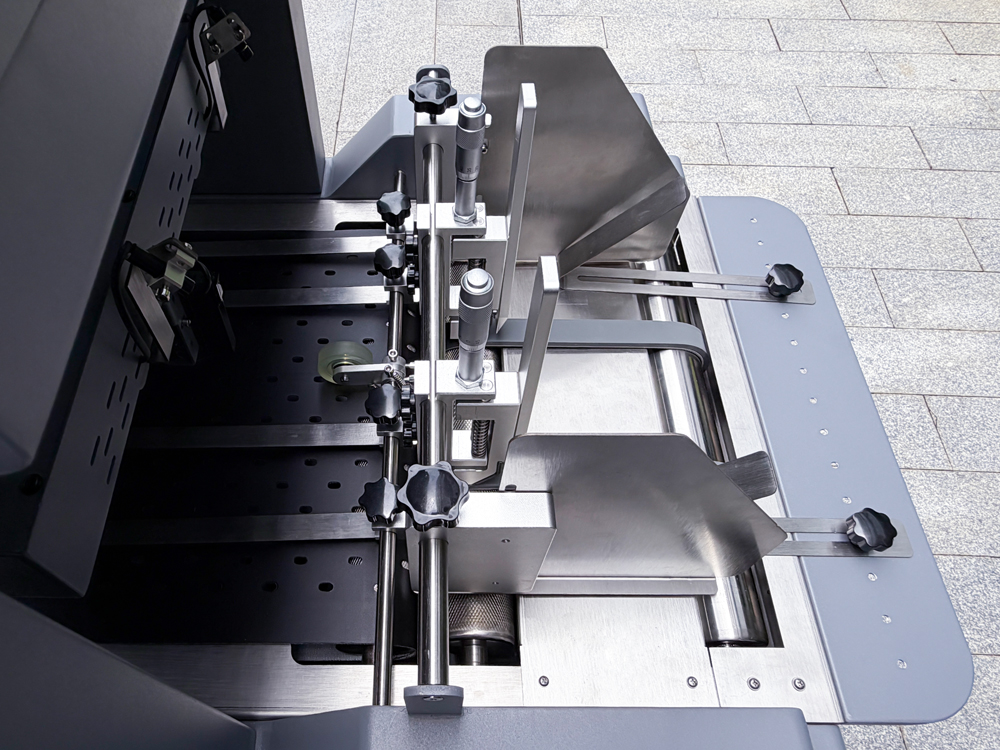

The integrated friction-based pagination structure makes operation more convenient.

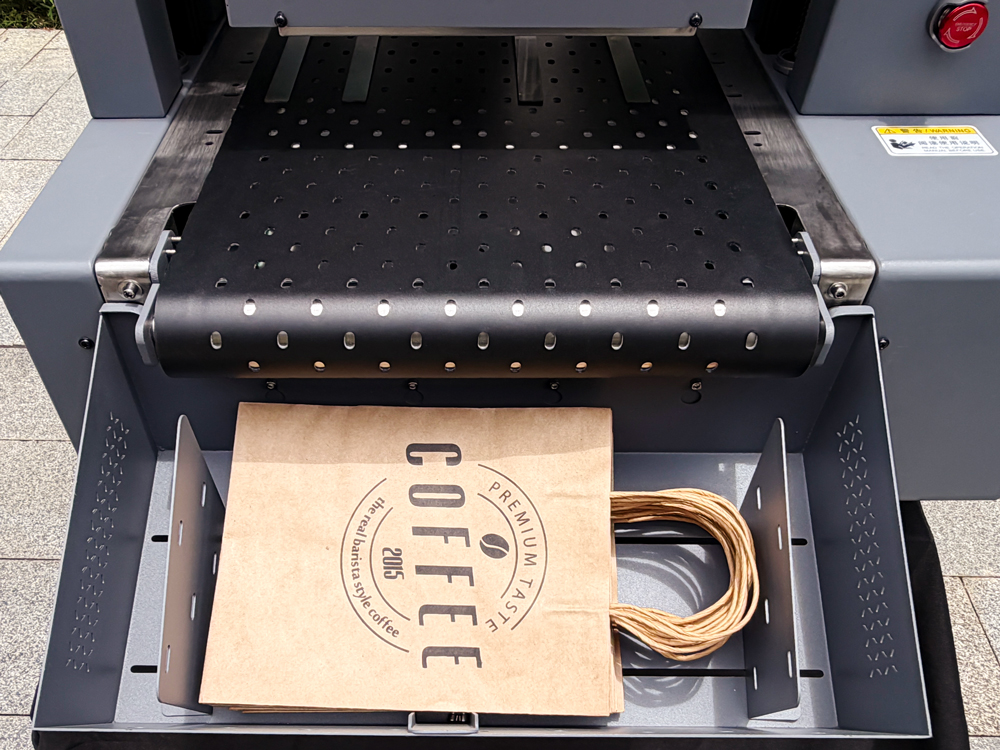

Adjustable hopper design

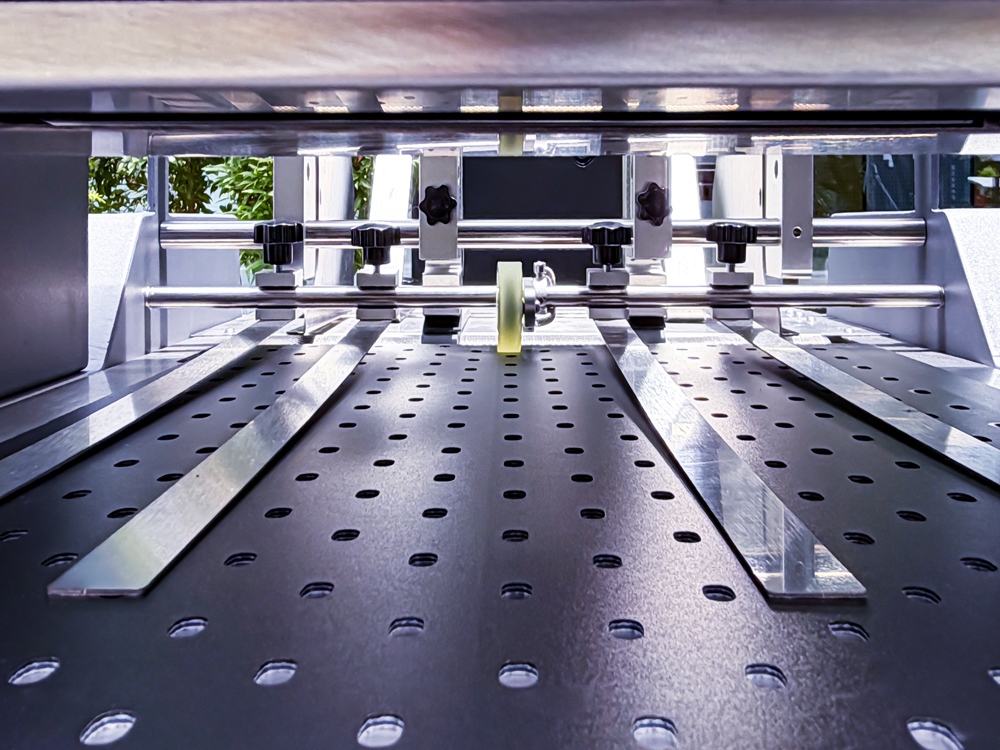

Printer with some assistant pieces slids to make the printing material deliver on the belt more stable and prevent the material folding or curved to scratch printdhead nozzles,Printing media max can support to 18 centimeter thickness box printing

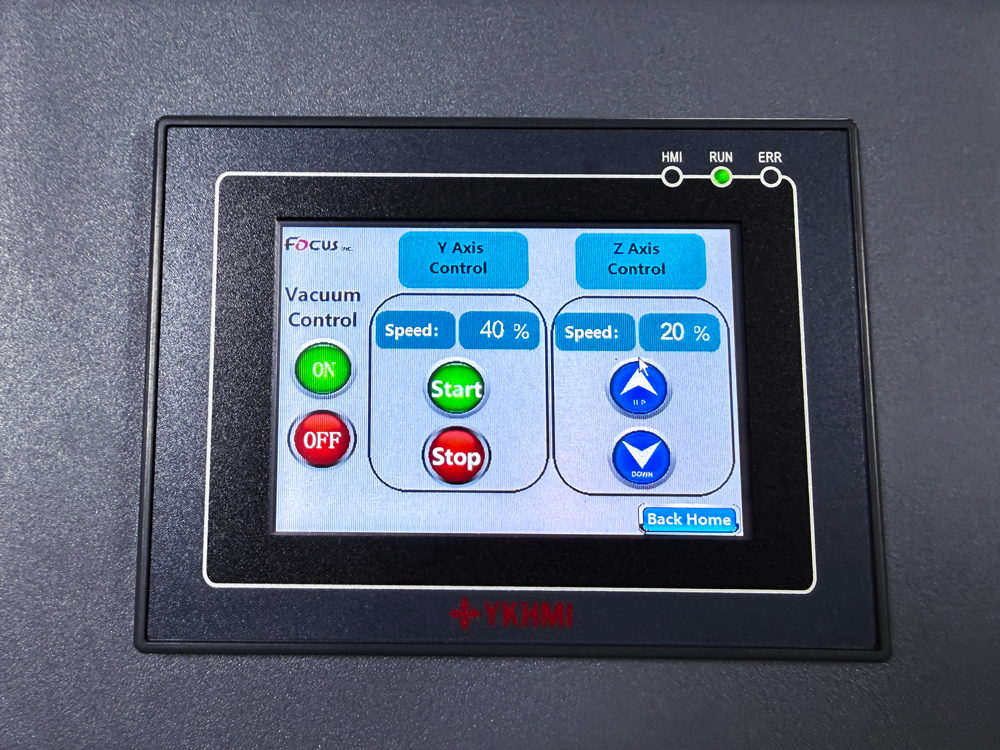

The touchscreen design facilitates operation and maintenance.

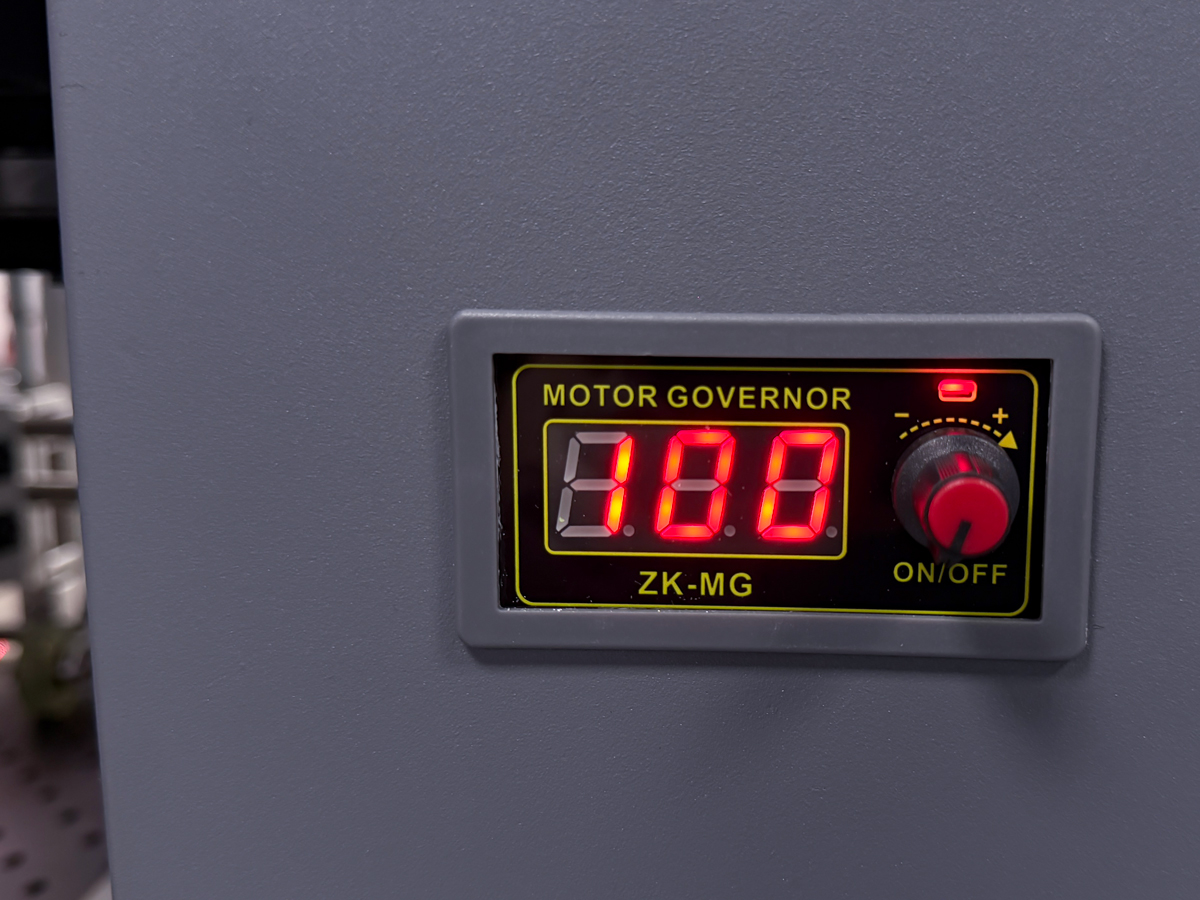

Vacuum adsorption wind power adjustable

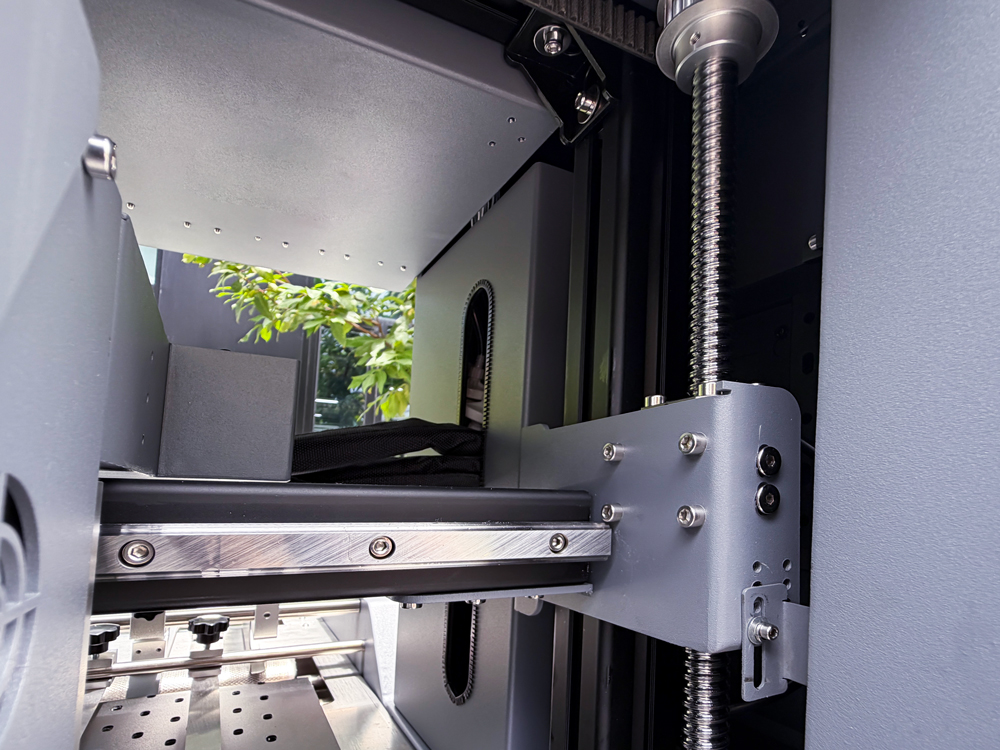

The XZ axis employs a double lead screw and linear guide design, greatly improving equipment accuracy.

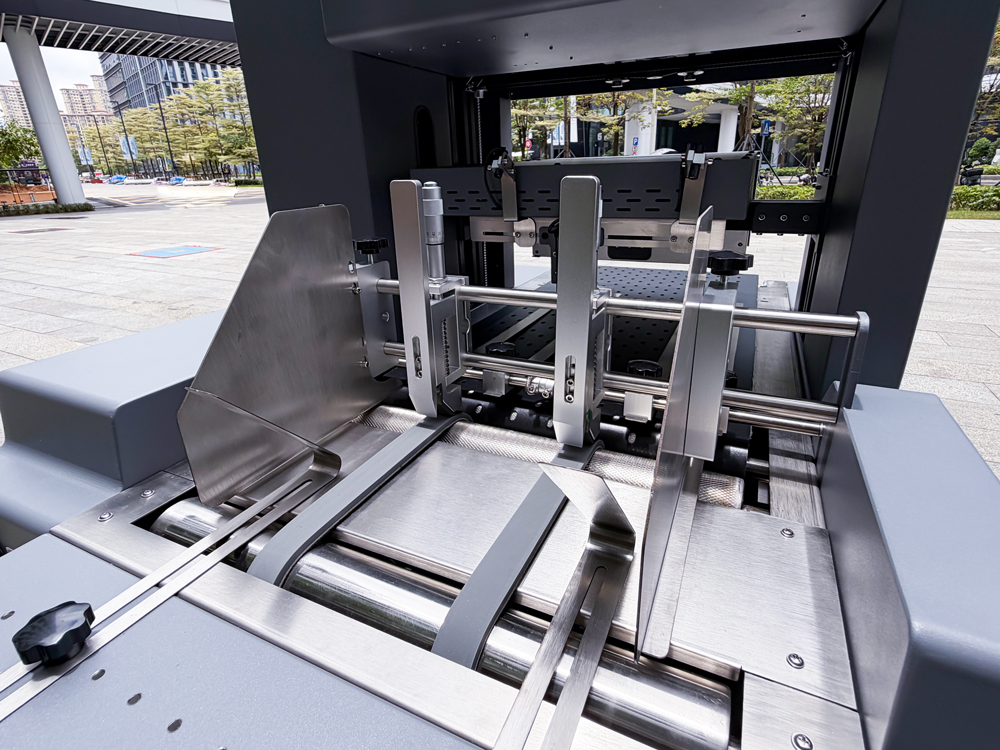

Automatic material pagination with adjustable thickness

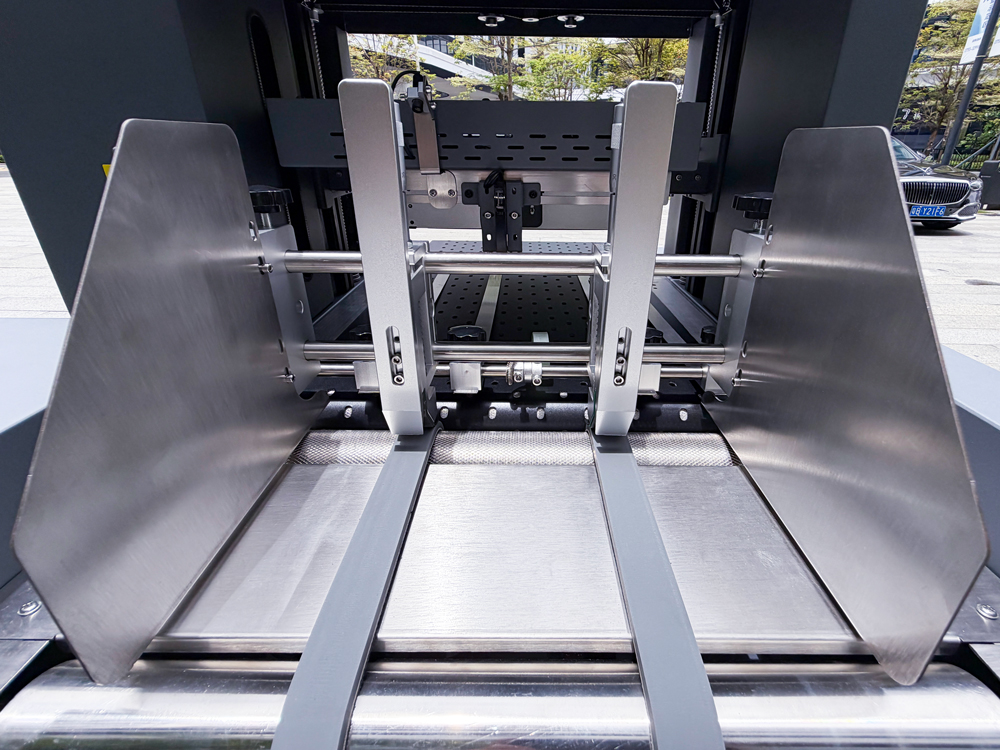

The friction paging system supports adjustable width and thickness for different materials.

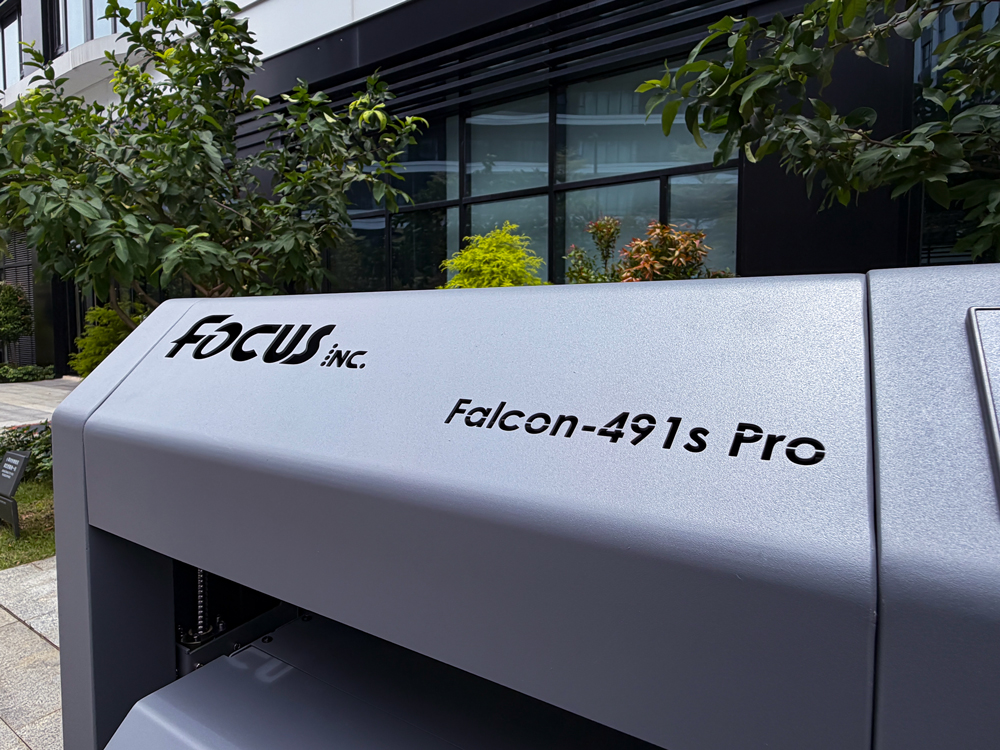

The printer also can customize your logo on the printer body

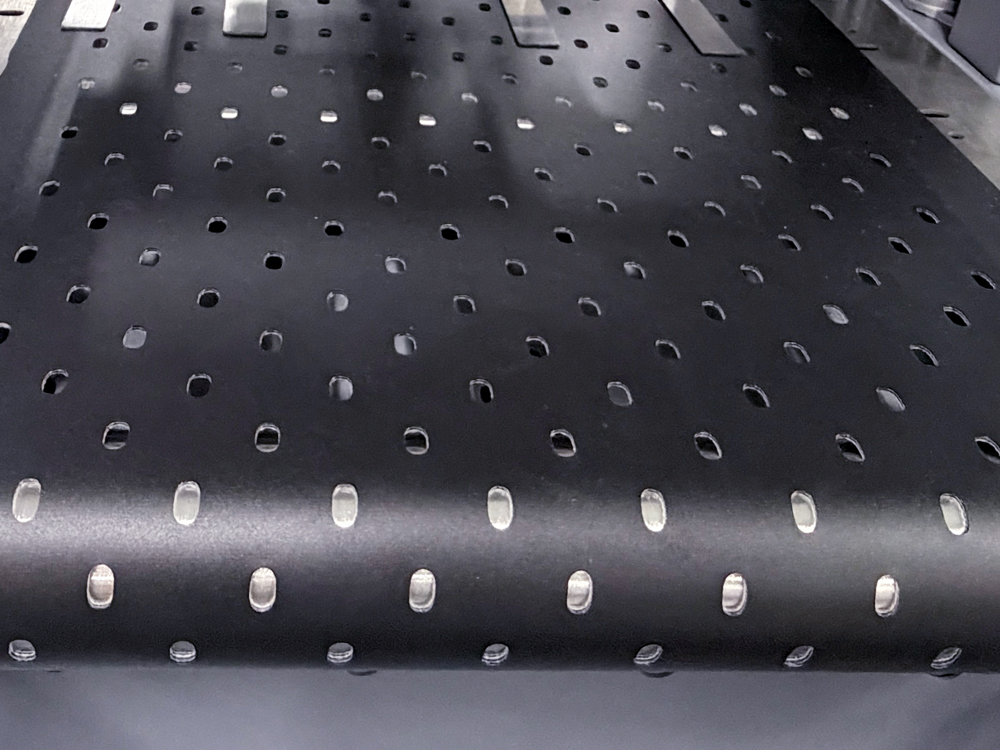

Open-pore adsorption-type guide belts enable flexible material printing

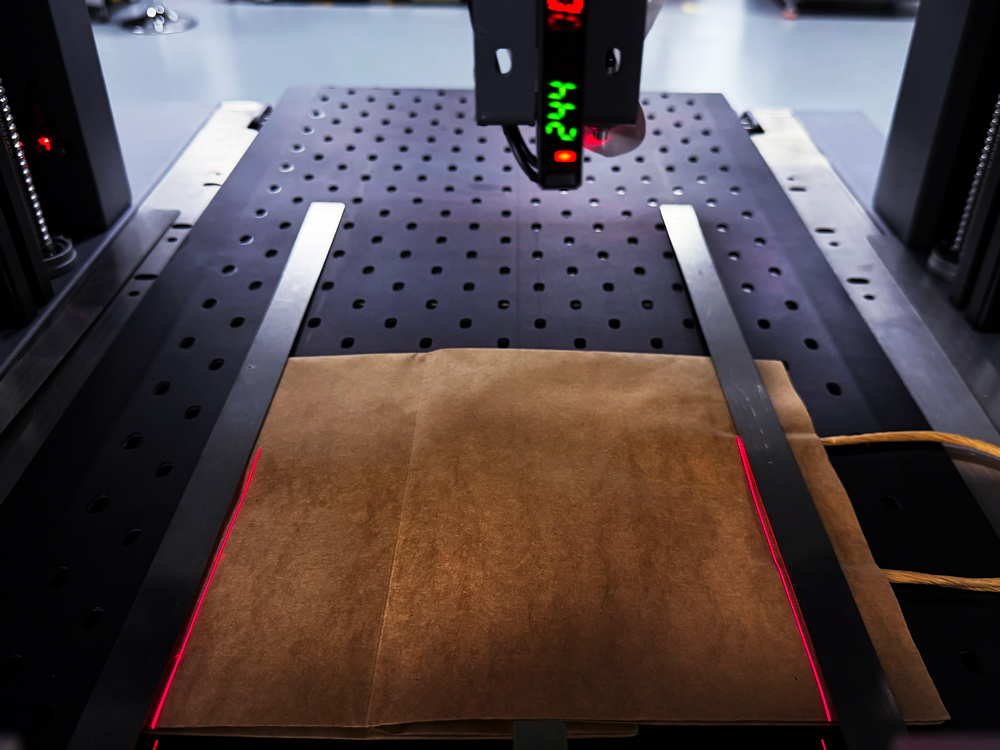

Far-infrared laser guides facilitate rapid positioning of printing materials.
Powerful control board assume high speed and high quality inkjet printing
Precision Control of Different Material Heights with Independent Motor Drive Configuration for Z-Axis Dual Linear Guide and Lead Screw

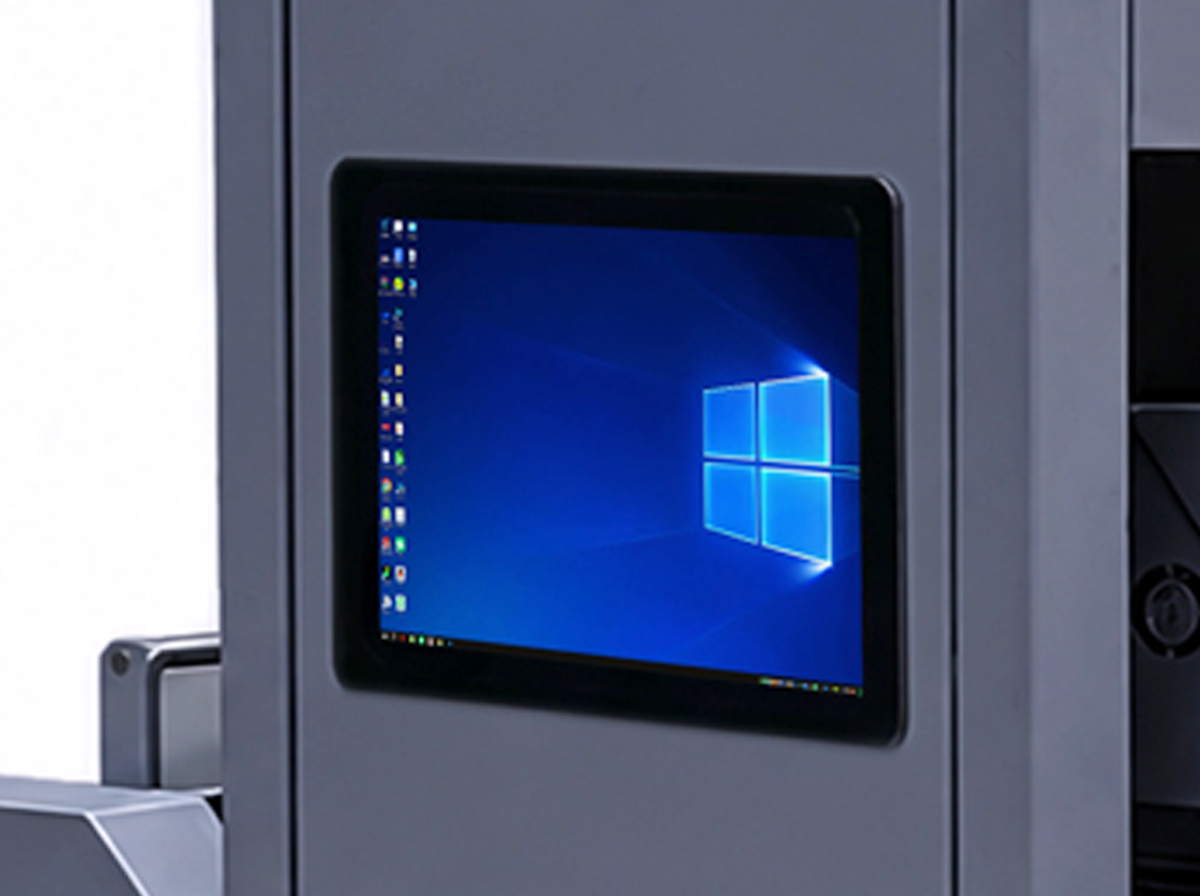

Optional high-configuration industrial touch screen all-in-one computers make operation more convenient.
This single pass digital inkjet printing machine equipped with high precission laser sensor to detect materials on time to make the printing position in acccuracy. It's also adjustable to detect and print on dark color material
Installed degassing sub tank can degass air on ink supply system to achieve stable printing
1200dpi PageWide technology can achieve 210mm or 300mm wide-format printing
Clean button with relay can clean and maintain print head easier
The 500ml large-capacity refillable ink tank with ink shortage alarm ensures continuous high-speed printing of materials

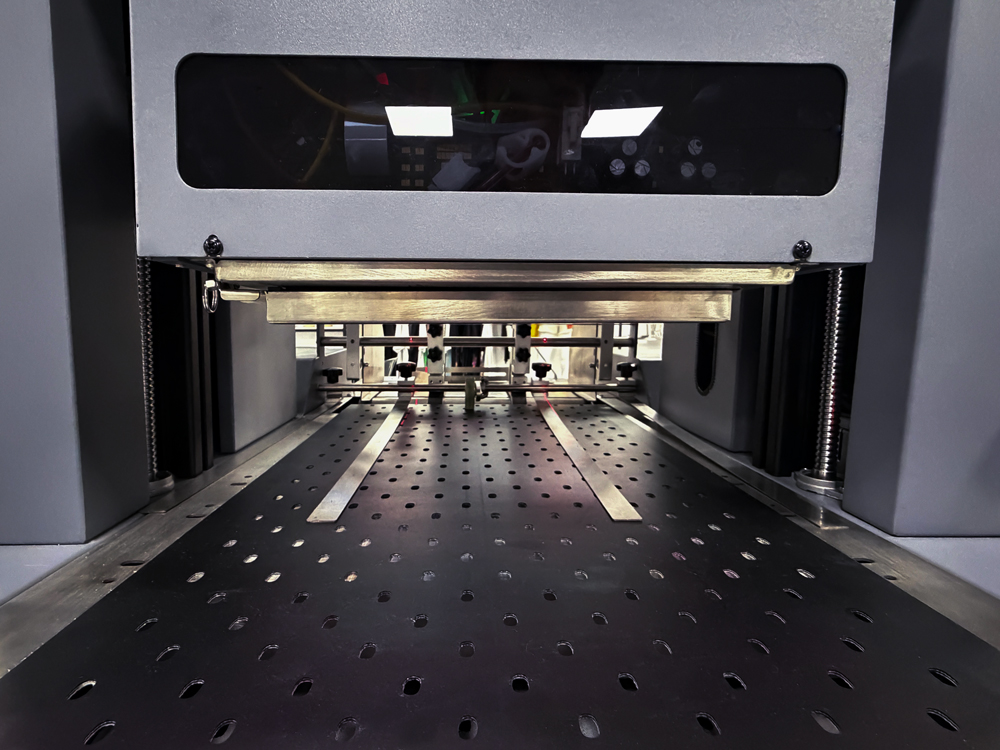

18cm maximum printhead height adjustable, compatible with printing materials of various thicknesses.
