Product Specification
| Type | uv label bopp pet roll to roll printer | Model | Vesa-830A |
| Params | Focus Inc. Vesa-830A Industrial Inkjet UV Label Printing Machine Specifications
Maximum printing area ：16.54" (420mm*Y no limited)
Print head type： 2pcs EPSON i3200 U1 Micro piezo print head
Print Nozzle Ammount：6400 staggered, 400 x 16 rows (400 x 8 rows per each head)
Printing method： EPSON MEMS PRECISIONCORE micro piezo printing technology
Jetting frequency：21.6~43.2kHz
Drop volume：3.5-12.5pl (Variable data single drop & multi drop) 2~4 Grayscale
Print resolution (dots per inch)： 720*1200dpi, 720*1800dpi, 720*2400dpi ; Uni-direction/Bi-dirction
Print speed ：4Pass: 12~17㎡/hour; 6Pass: 10~12㎡/Hour; 8Pass: 8~10㎡/hour
(According to different resolution and design)"
Print Head mainten technology ： Auto keep wet cap station system & Clean flashing during printing and idle
Media size： Maximum load width 16.54", 420mm
Maximum external diameter：≤φ350mm
Roller Inner diameter ：φ75mm, φ40mm, φ25mm
Film Feeding：Automatic Release Automatic tenssion release roller
Film Take up：Automatic Take up Automatic detect electronic take up Roller
Media vacuum system：Vacuum power 200W
Vacuum area： Full flatbed area adsorption
Vacuum control：Electronic button switch control
Media type：Roll type Film, paper, Canvas, leather
Plastic type media: PE, PP,PET,PVC label or film, ，Inkjet-Coated Paper and Synthetics (BOPP, Vinyl, PET); Glossy, Matt，Non-coated paper，Other Focus inc, approved media"
Media margin aligment：Encode film+Encode sensor aligment
Media Process：Roll to Roll
Media Feeding：Unwinder, Rewinder; Self-Tenssion Control
Job format：Tiff, Png, Jpeg, Pdf...
Ink Type：UV Curing ink, Aqueous, Dye, Pigment, Edible
Color：White, Black, Cyan, Magenta, Yellow
Ink tank capacity： 220ml per each color; 500ml for white ink tank; Refill
Ink process unit：White ink Stirring Automatic white ink stirring system
White ink circulation： Automatic white ink circulation system
Ink curing unit Curing technology： 405nm UV-LED lamp * 2pcs
Media vacuum system：Vacuum power 200W
Vacuum area： Full flatbed area adsorption
Vacuum control： Electronic button switch control
Dimensions：Printer only Printer: 34.5(W) × 23.6(D) × 16.9(H) in. (876× 600× 431mm) Main printer
Unwinder, Rewinder size： 13.0 (L) × 26.1 (W) × 14.3 (H) in. (330 × 664 × 364 mm) /One
Packing size： 54.3 (L) × 38.9 (W) × 28.4 (H) in. (1,380 × 990× 720 mm) All
Net weight： 251 lb (114kg) Printer only; 112lb (51Kg)Unwinder+Rewinder
Packing weight： 407 lb (185 kg) All
Environment Temperature： 59 to 86 °F (15 to 30 °C)
Humidity：40 to 80 %
Included items ： Print cable, Cleaning kit, USB Flash of manuals and installation videos
Connectivity：Ethernet cable
Working Power：Printer 350W, Unwinder+Rewinder 120W
Power requirements： 12A, Single-phase 220V, 50~60HZ;
Acoustic noise level： 75 dB (A) or less | Material | Print horizontal carriage movement beam: High-strength extruded aluminum alloy
Main machine frame: Thickened welded carbon steel
print head assembly: Heat-resistant industrial plastic + precision alloy metal parts
X/Y linear guide rail: High-hardness steel
Conveyor belt: Anti-offset PU rubber
Correction roller: Stainless steel with silicone coating
Ink tank & ink stack: Anti-corrosion modified PP plastic
Printhead protective cover: Aluminum alloy
Side wing & outer housing: Galvanized steel sheet
Drive motor shell: Cast aluminum alloy
Transmission gear: Quenched alloy steel
Ink pipeline: Fluorine rubber
Touch screen shell: Impact-resistant ABS plastic |
| Applicable Industry | uv label roll to roll printing, bopp pet pe rolls stickers full color digital printing industry | |

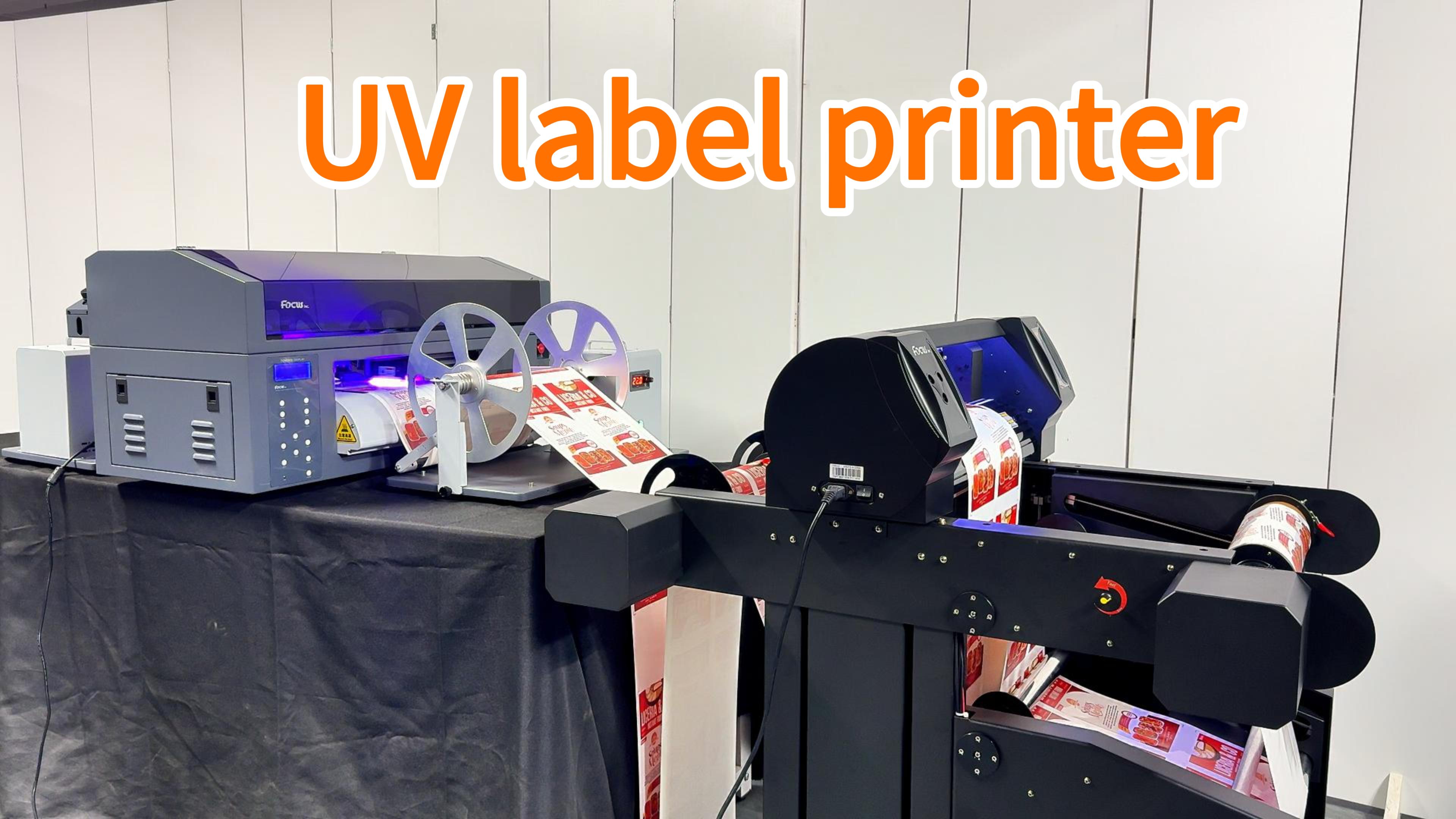

Focus inc Vesa-830A uv label printer with die cutting and sticker waste removal system

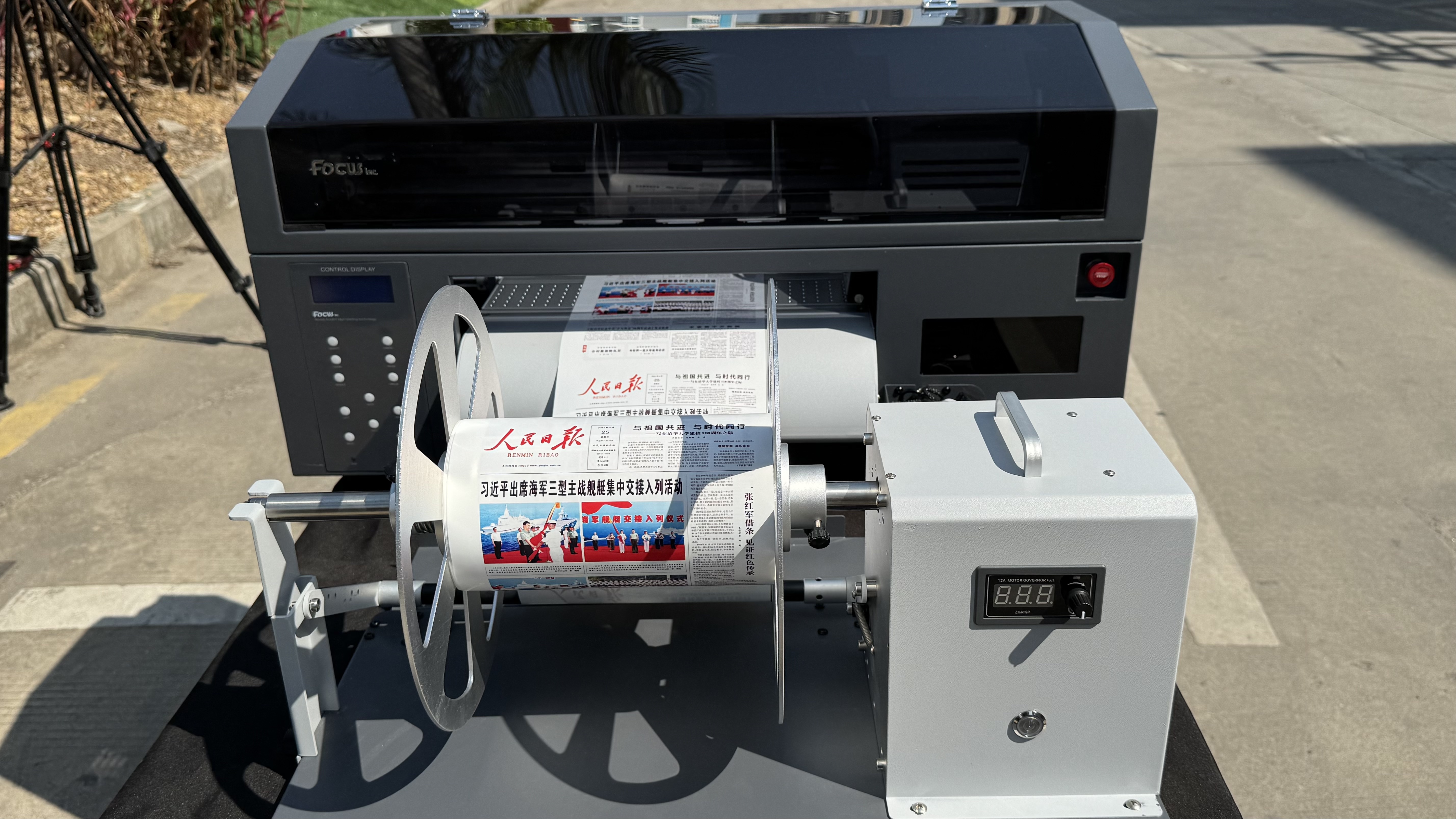

vivid color uv label roll to roll printing machine

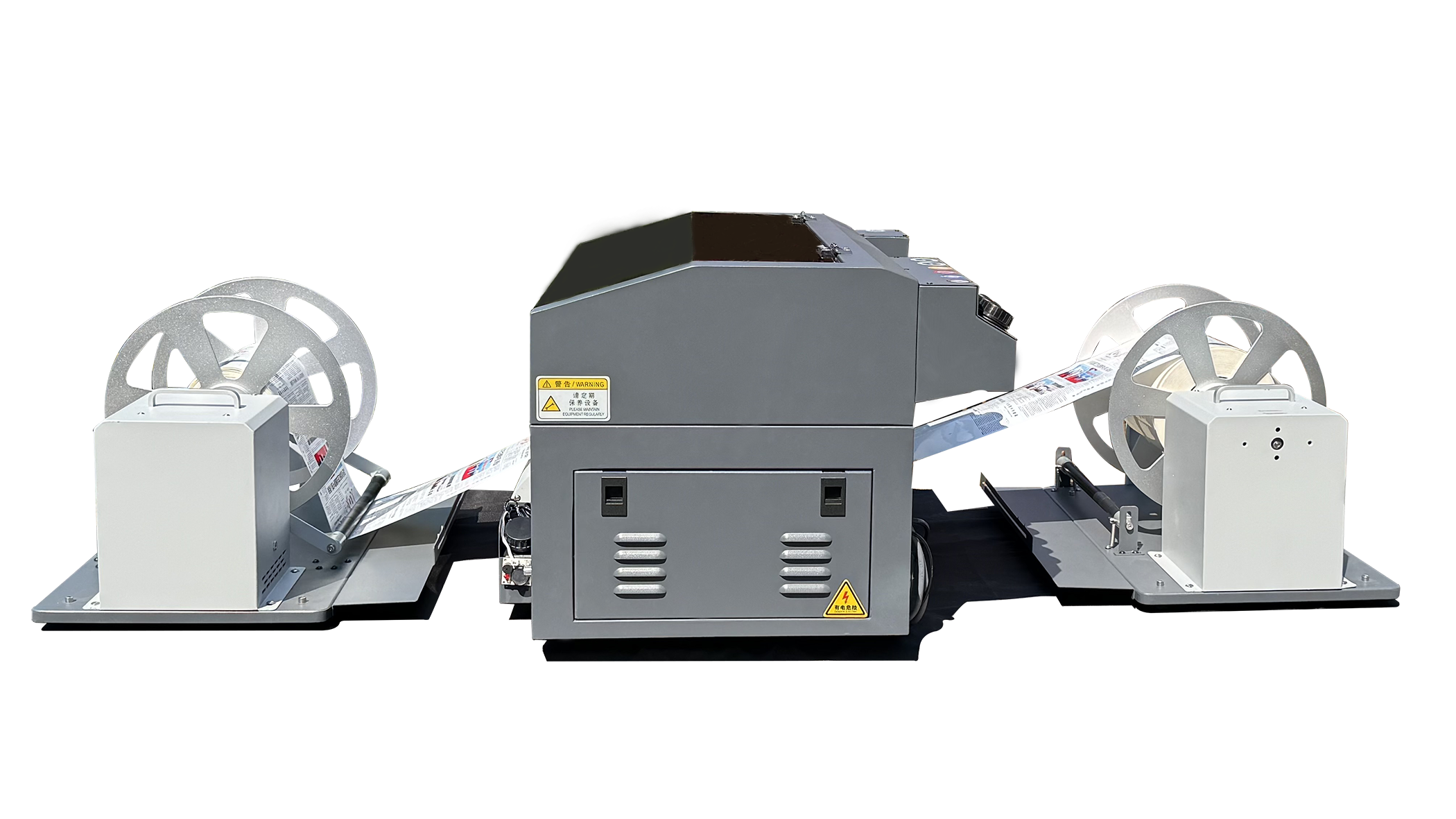

right view of FocusInc Vesa-830A uv sticker label roll to roll pritning machine
Vesa-830A inkjet label uv roll to roll printer

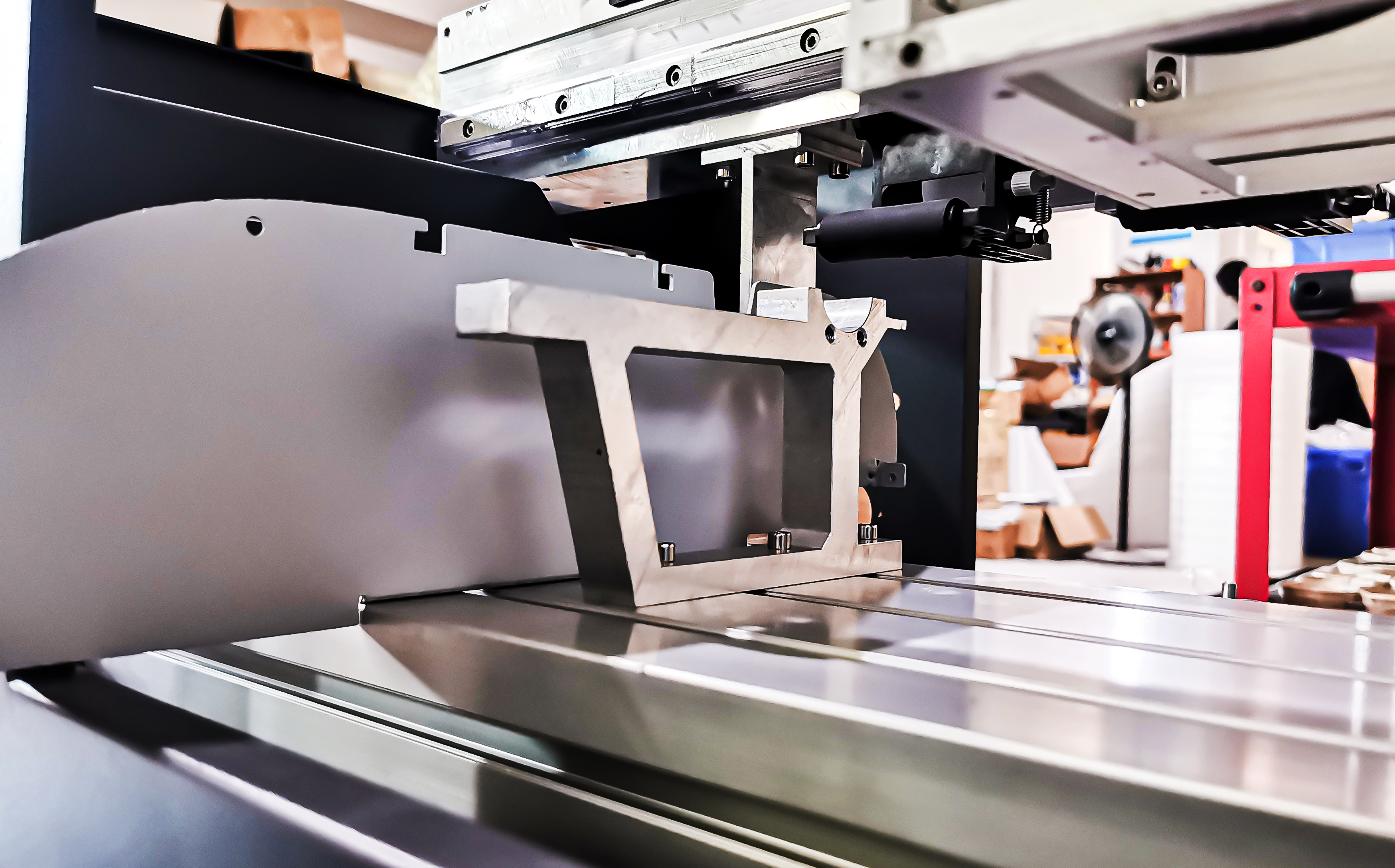

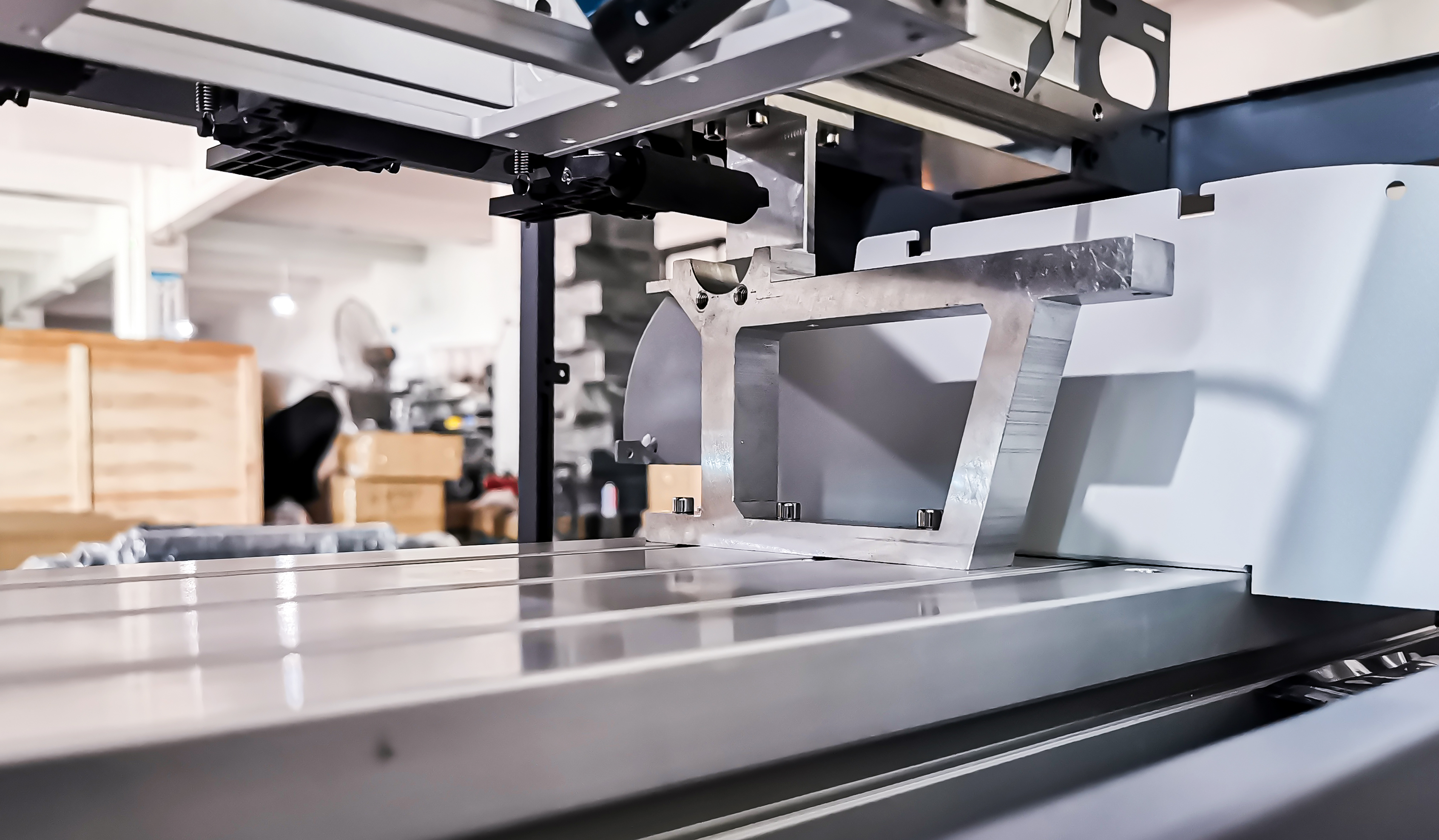

All keel made from high quality Pressure casting aluminum to ensure the high speed stable printing

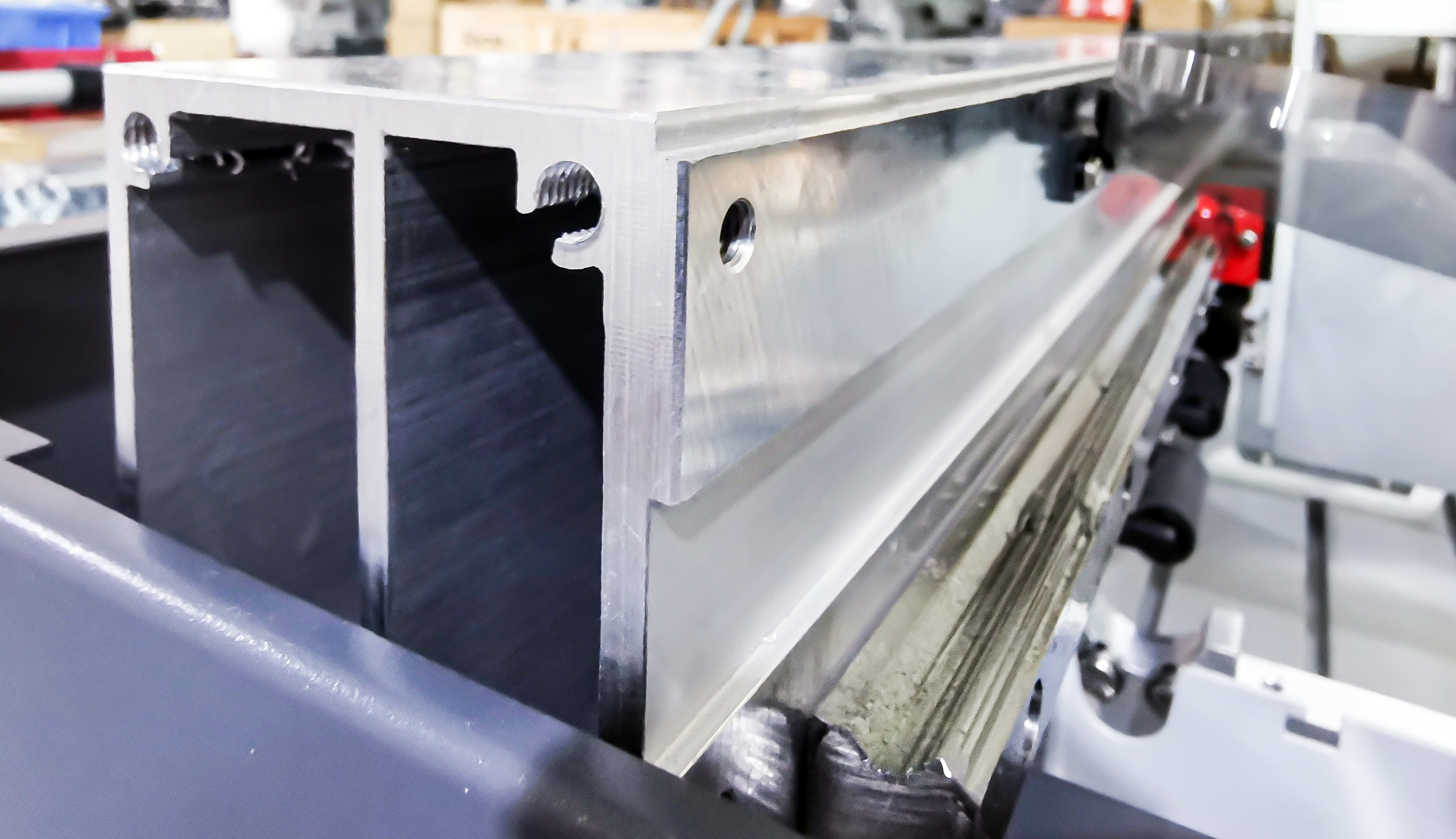

Thicken CNC alumium X rail to ensure the print carriage moving with high speed and precision

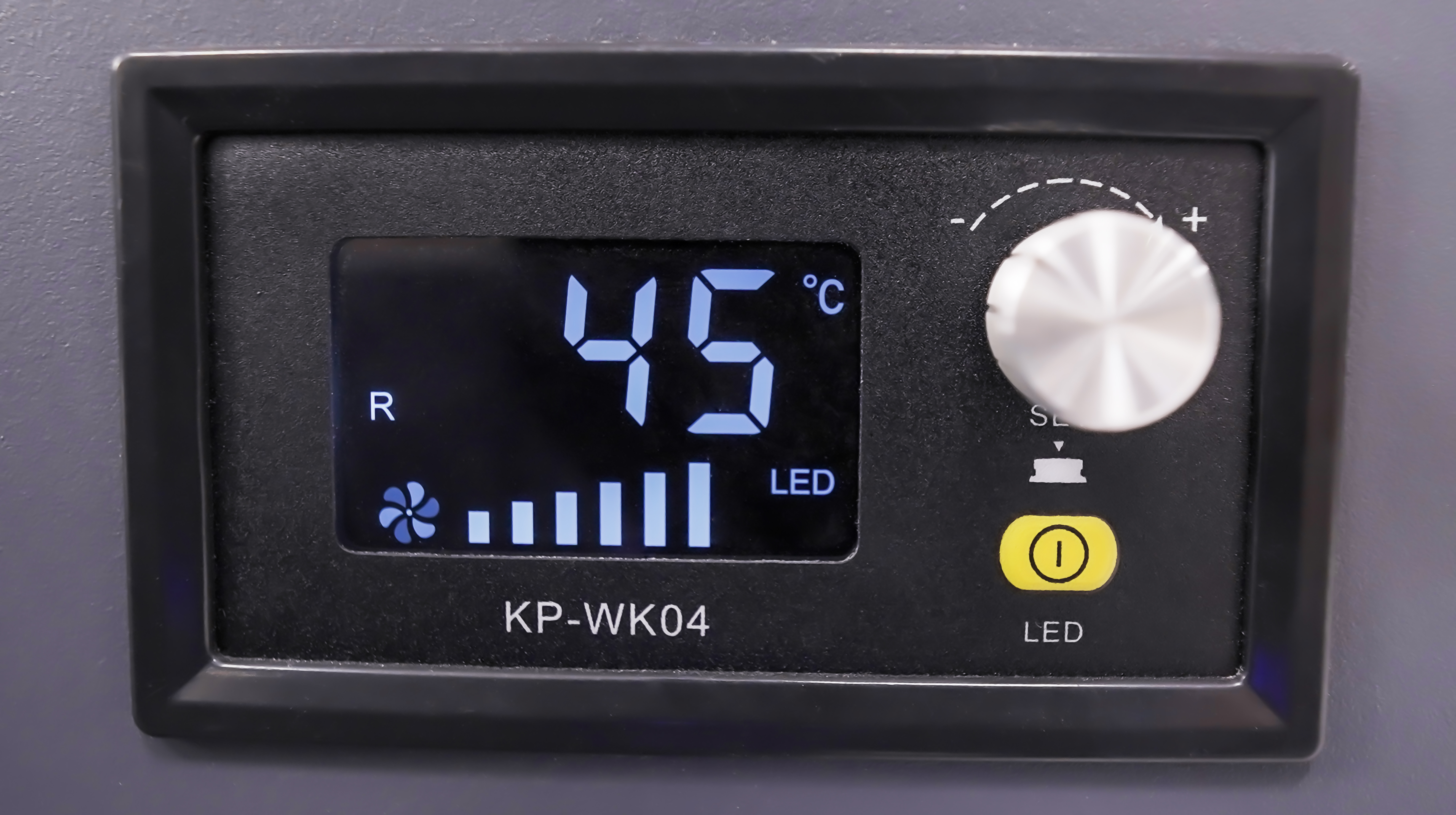

LED control panel for Pre-Heating Post heating & Table adsorption

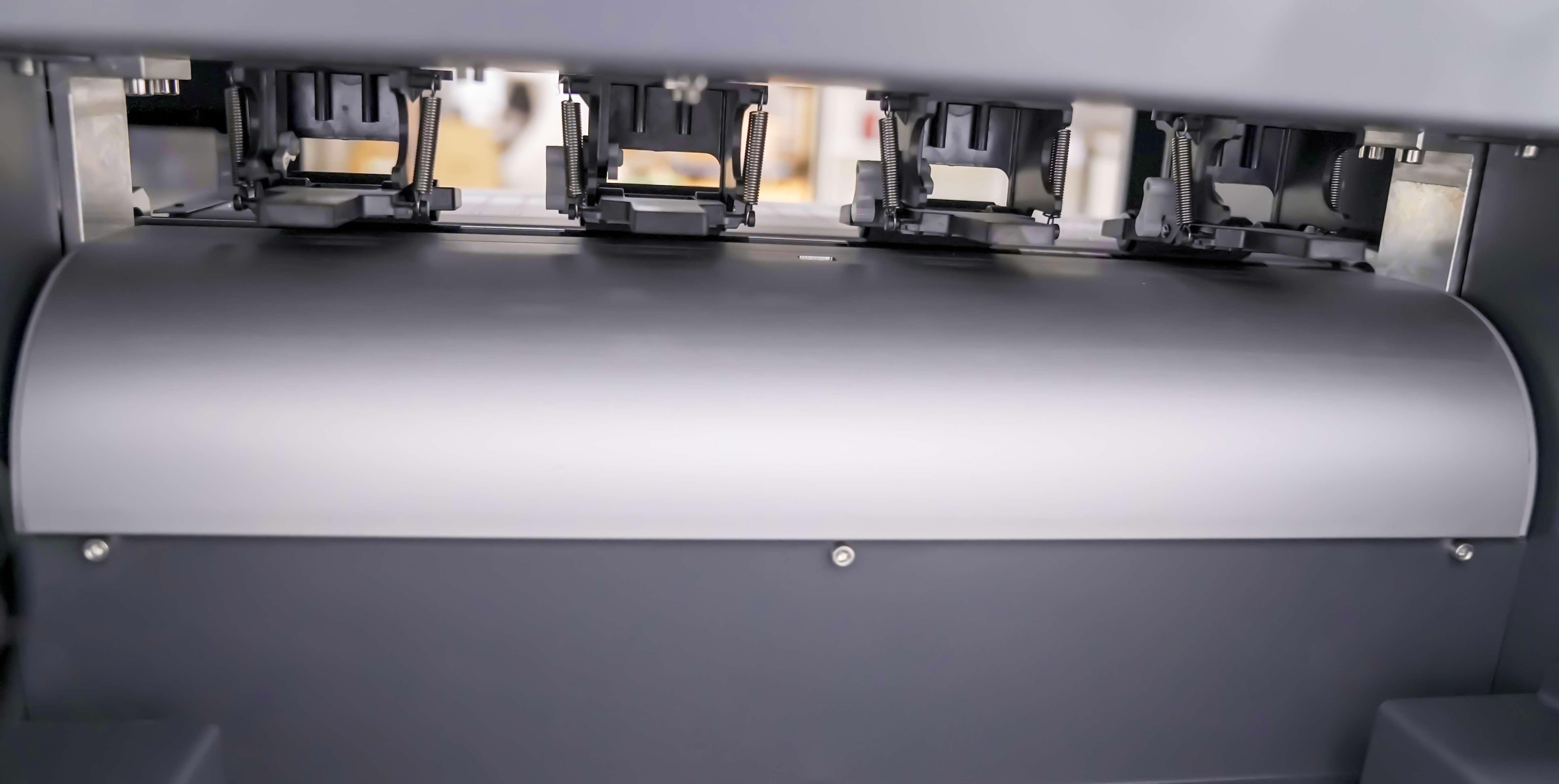

The pre-printing heating function can greatly improve the ink's firmness and scratch resistance on the material

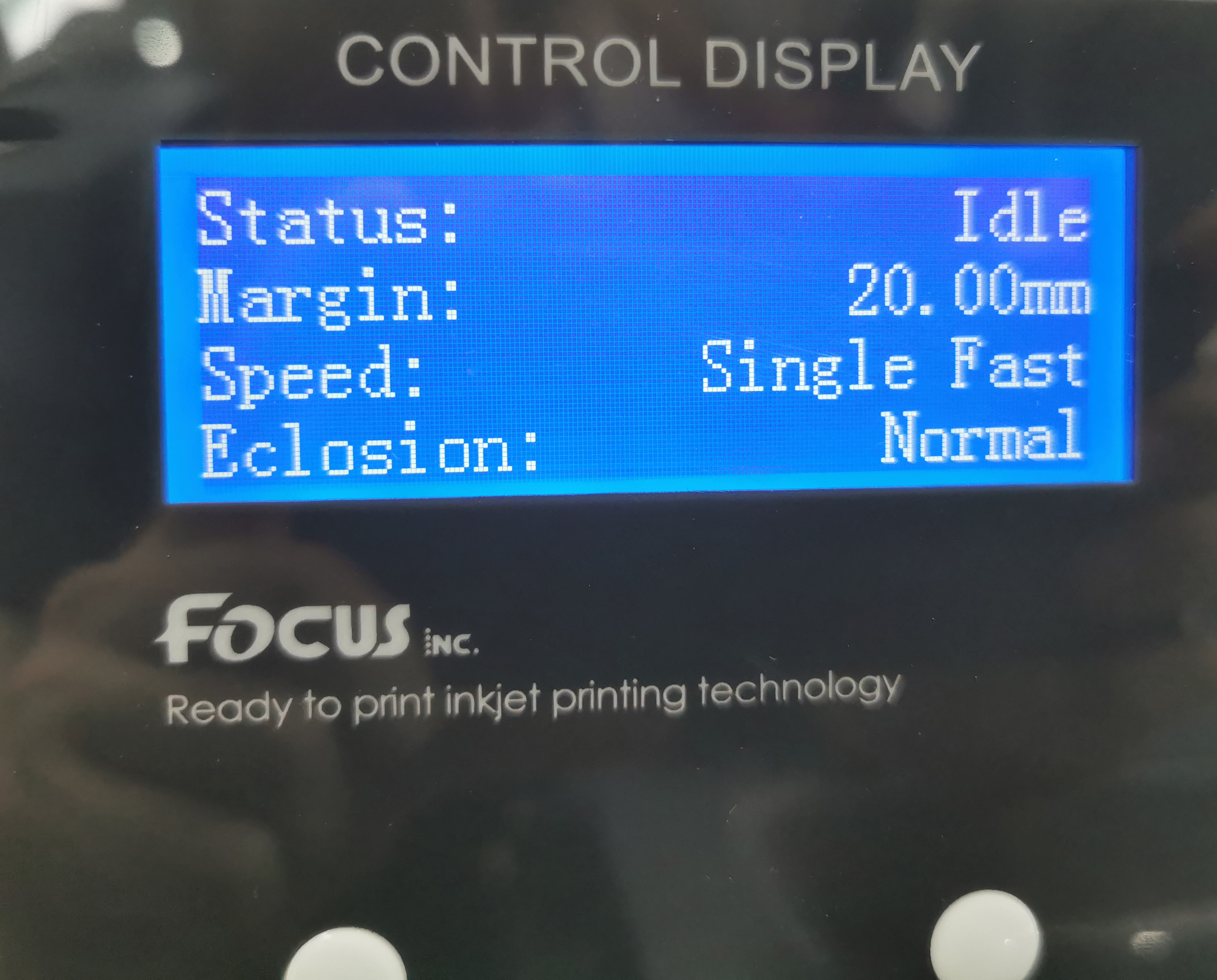

The multi-function printing control panel displays the printing process in real time and makes the printing operation more convenient and faster-多功能打印控制面板实时显示打印进程以及让打印操作更方便快捷

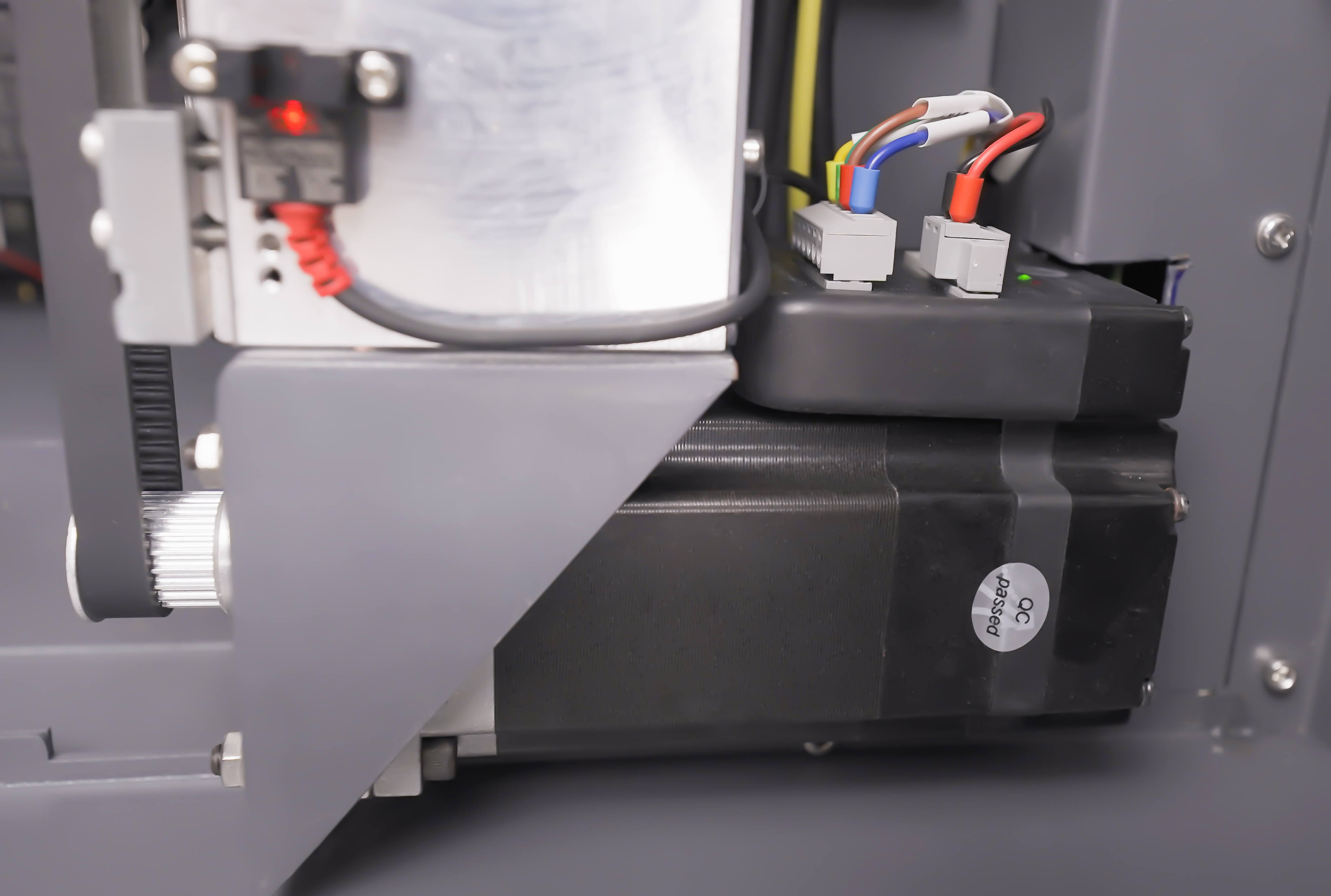

Servo motor drive printing greatly improves the unidirectional and bidirectional printing accuracy

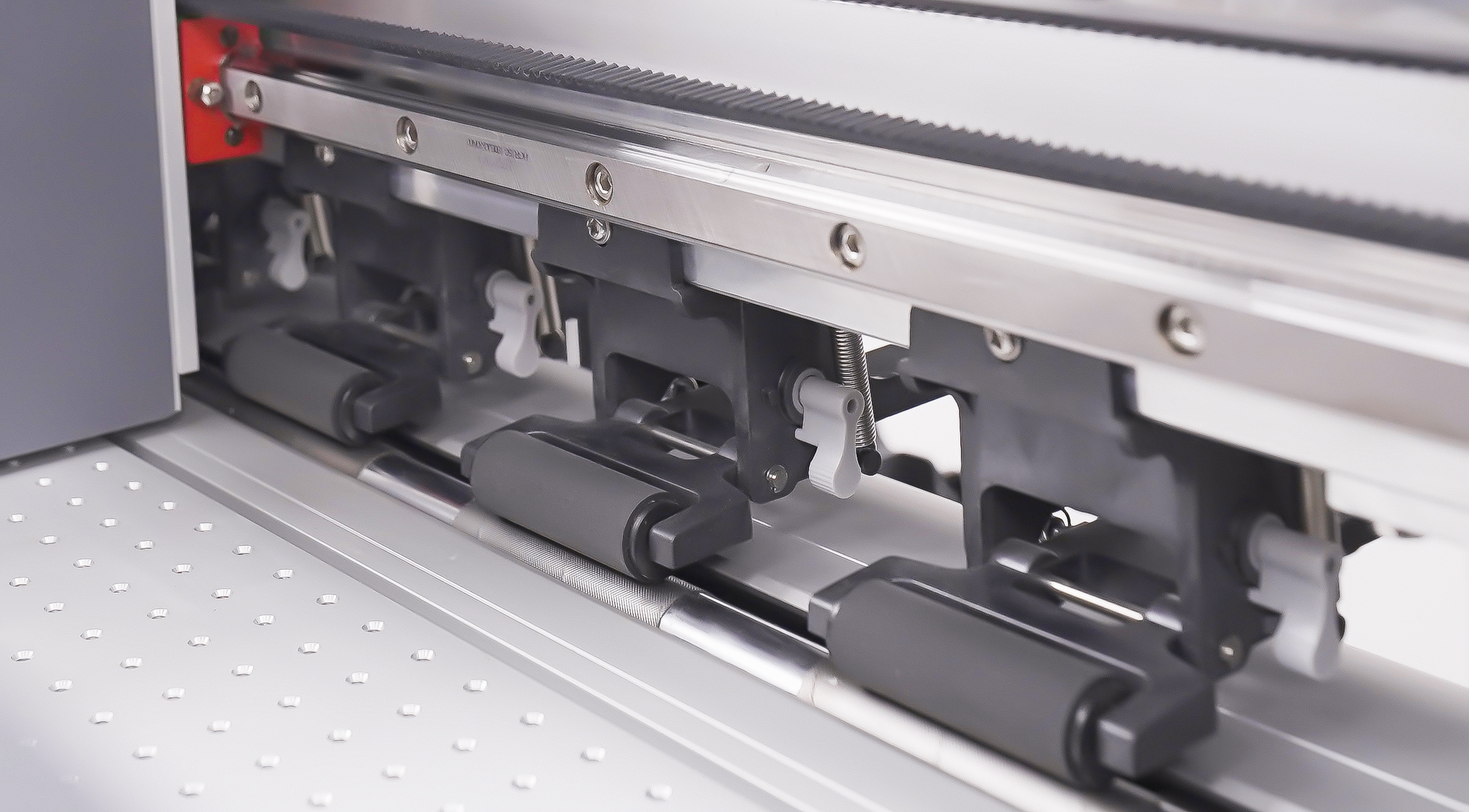

Anti-static rubber Pinch roller can effectively prevent waste ink accumulation to keep film clean and improve the accuracy of step printing

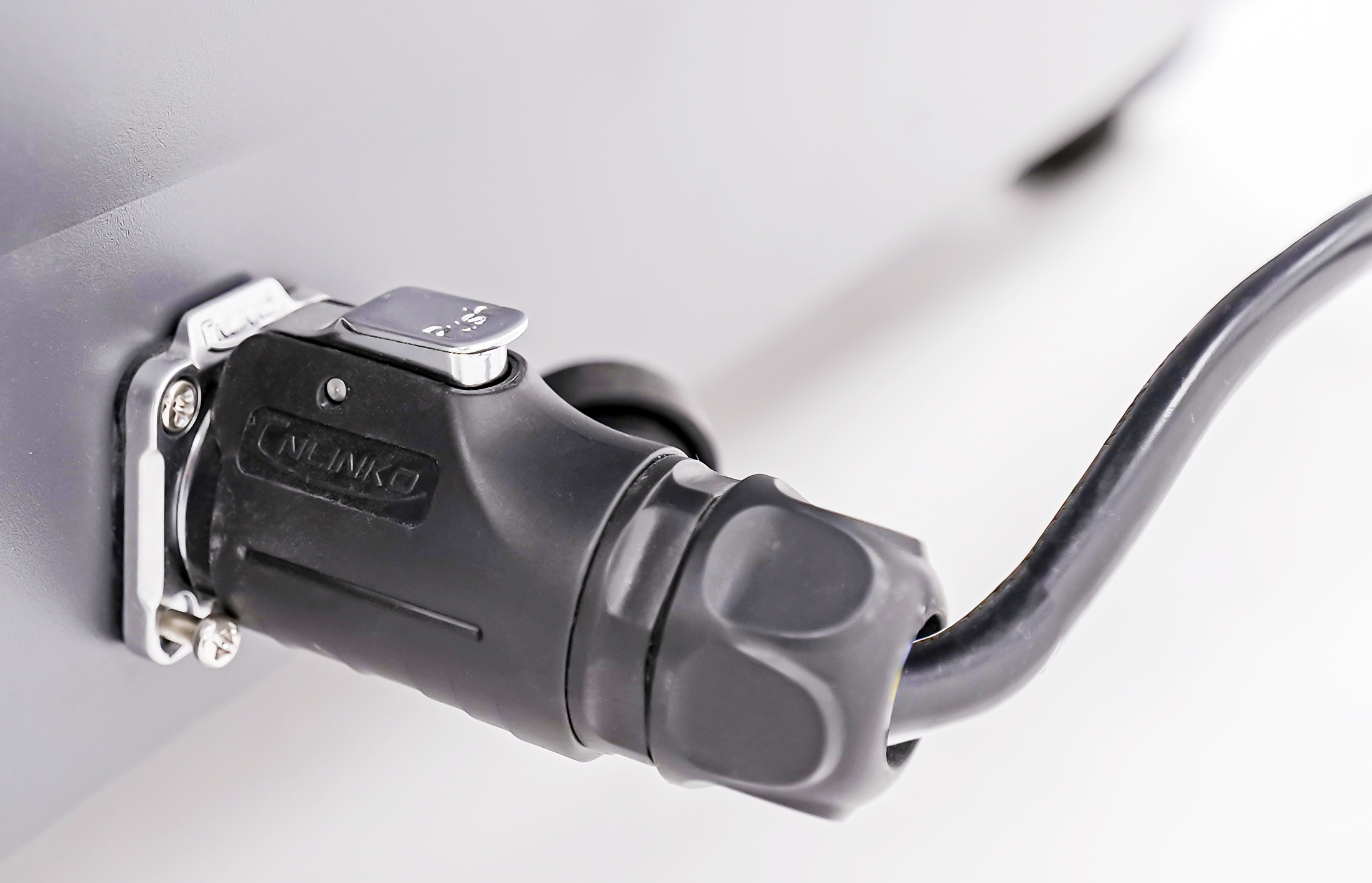

High safety easy plug-in power connector more safety

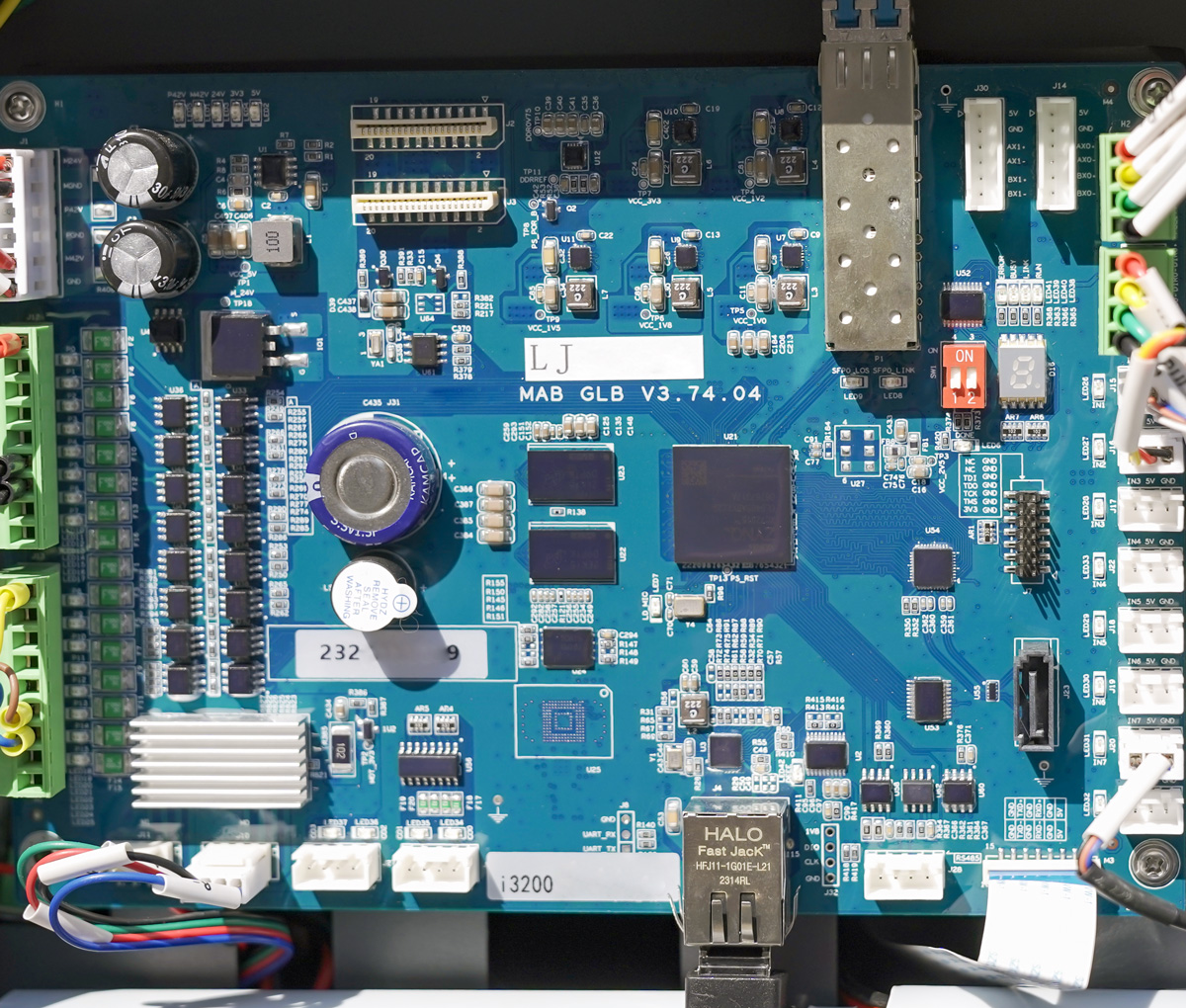

Industry 4.0 tertiary circuit protection design of the multi-functional printing board greatly improve the printing speed and printing quality

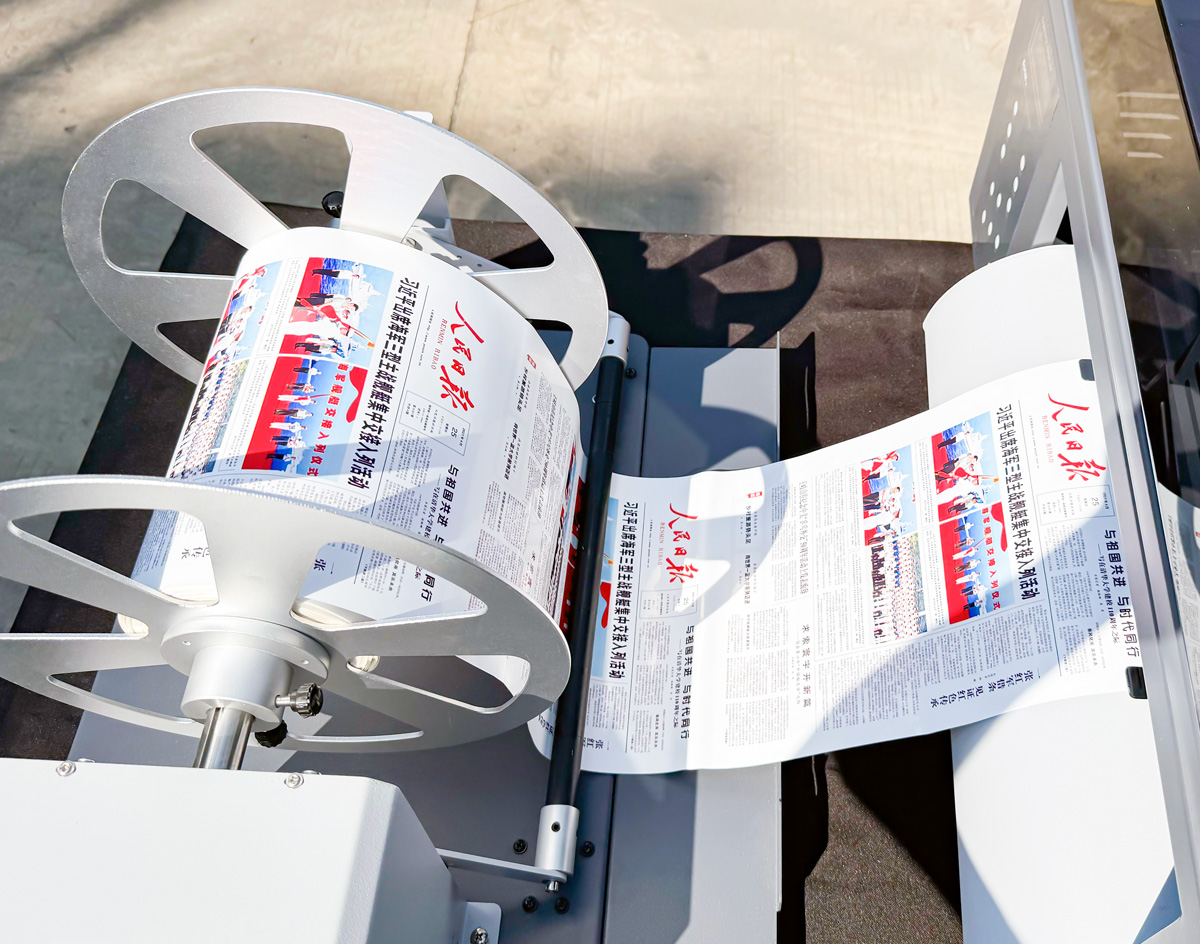

The maximum material outer diameter of 350mm and the maximum width of 300mm can meet the printing needs of different materials-最大材料外径350mm以及300mm最大宽幅可实现不同材料的打印需求

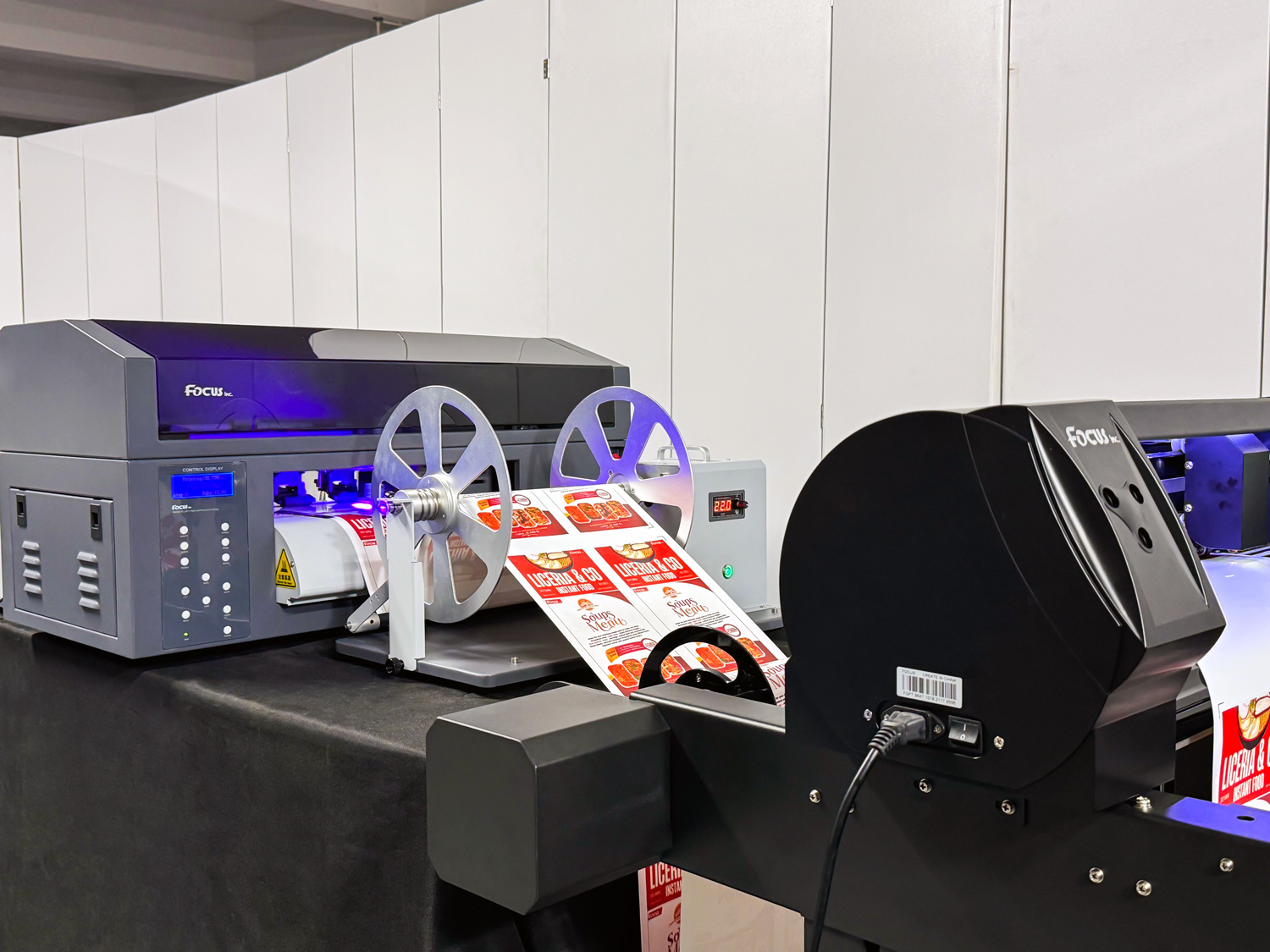

It can realize die-cutting while punching or punching first and then die-cutting

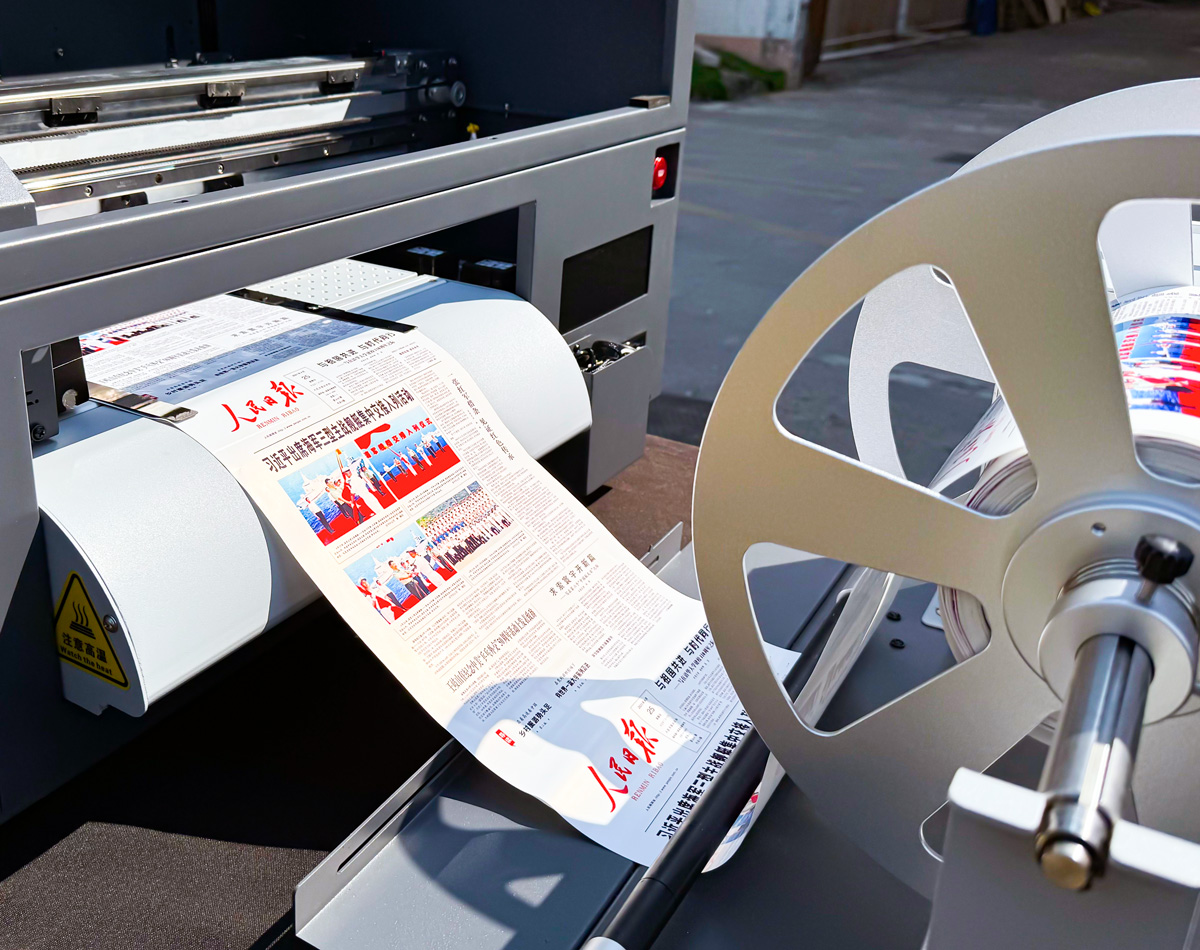

The built-in material tension automatic adjustment function allows the material to be fed smoothly and positioned accurately during printing

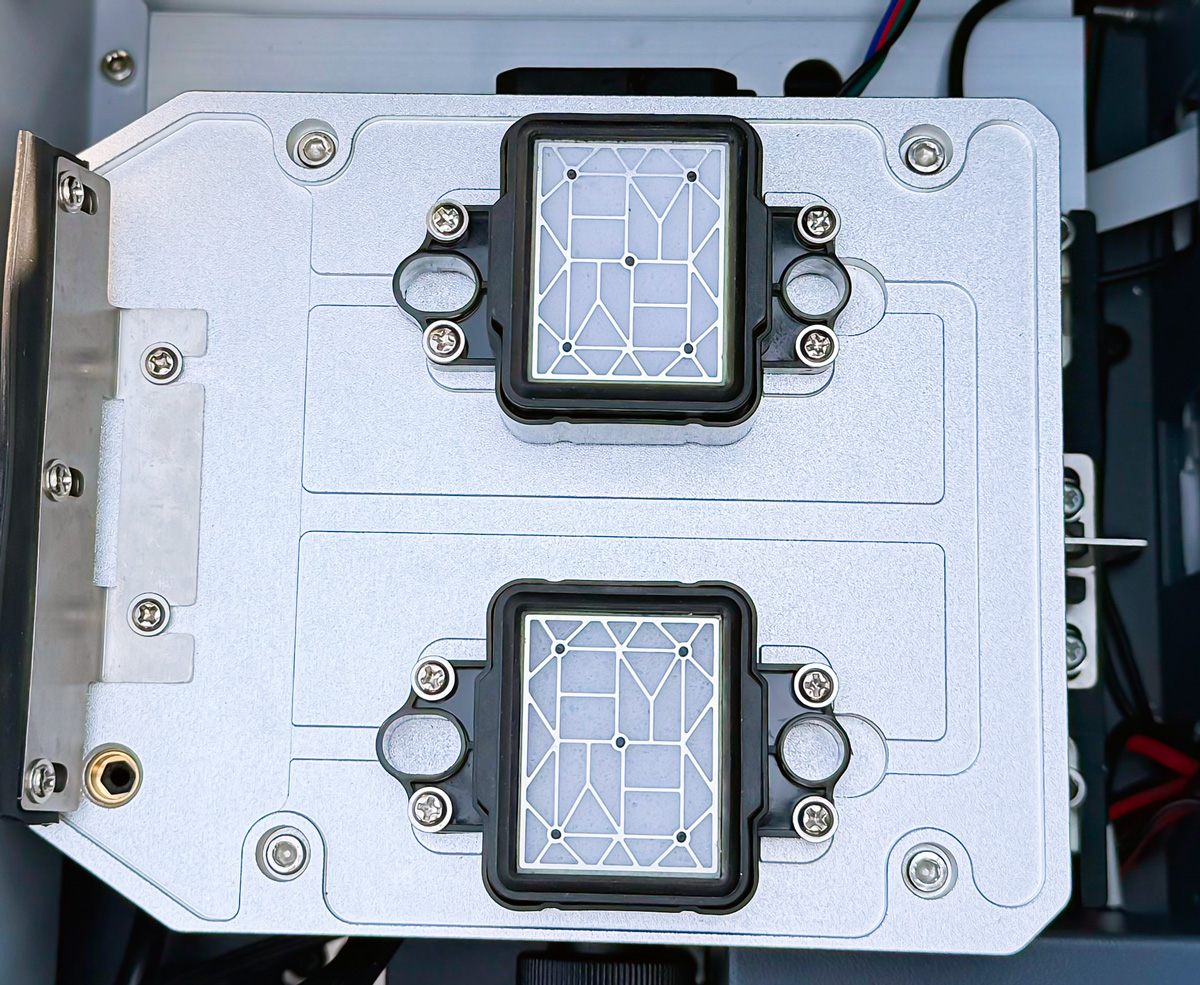

The automatic lifting type cap station design makes the head cleaning and moisturizing more smooth and efficient

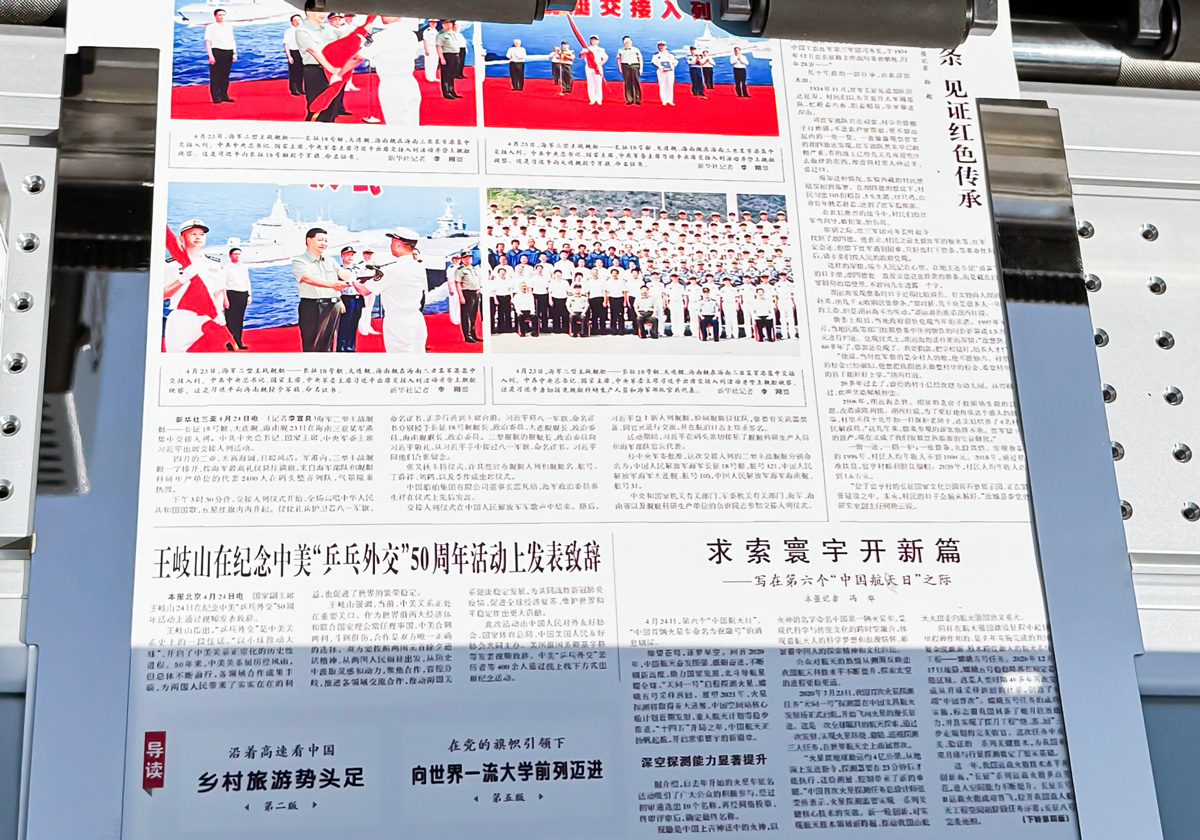

The movable paper pinch sheet can prevent the material from arching during printing, thus effectively protecting the printhead

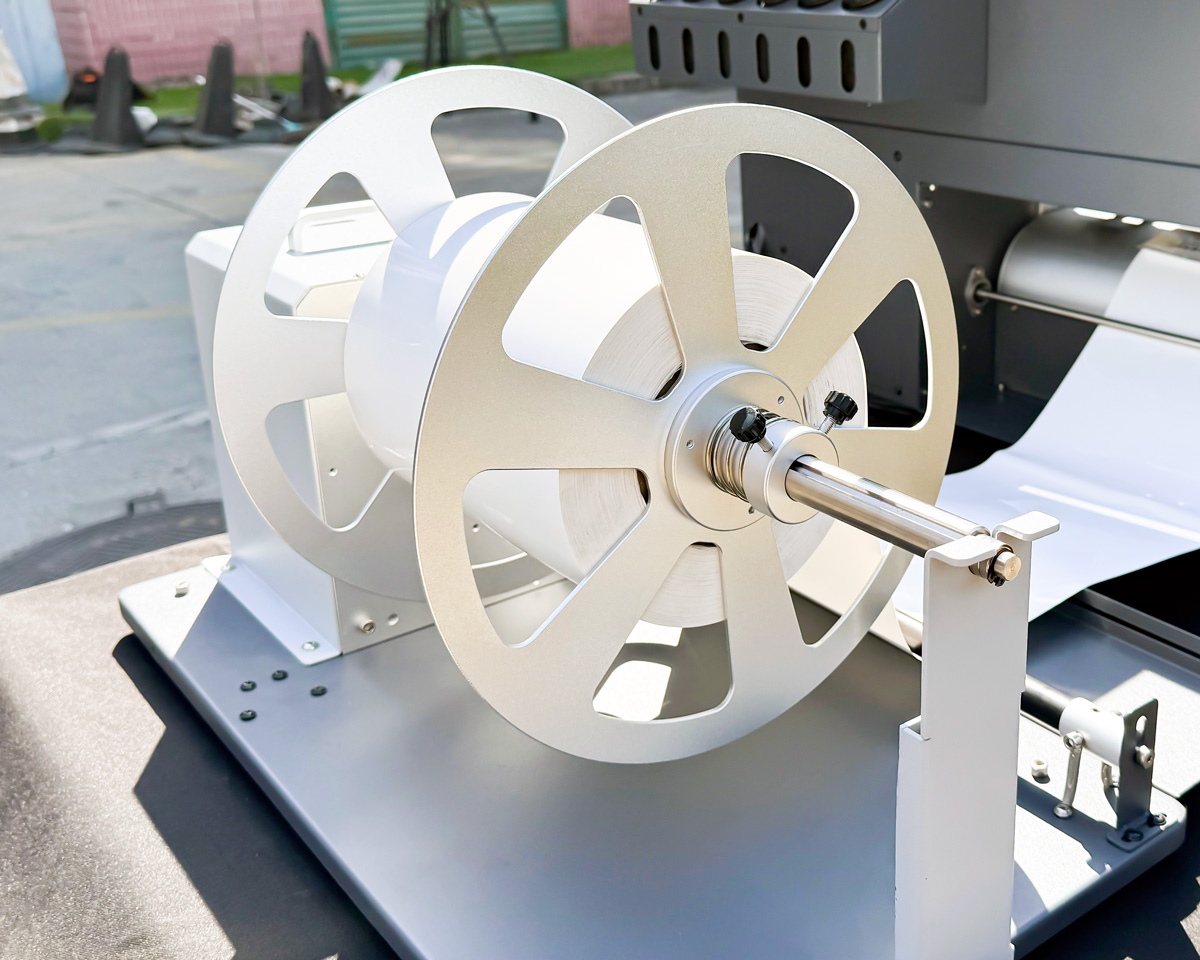

The quick material change and load design makes printing more convenient and faster

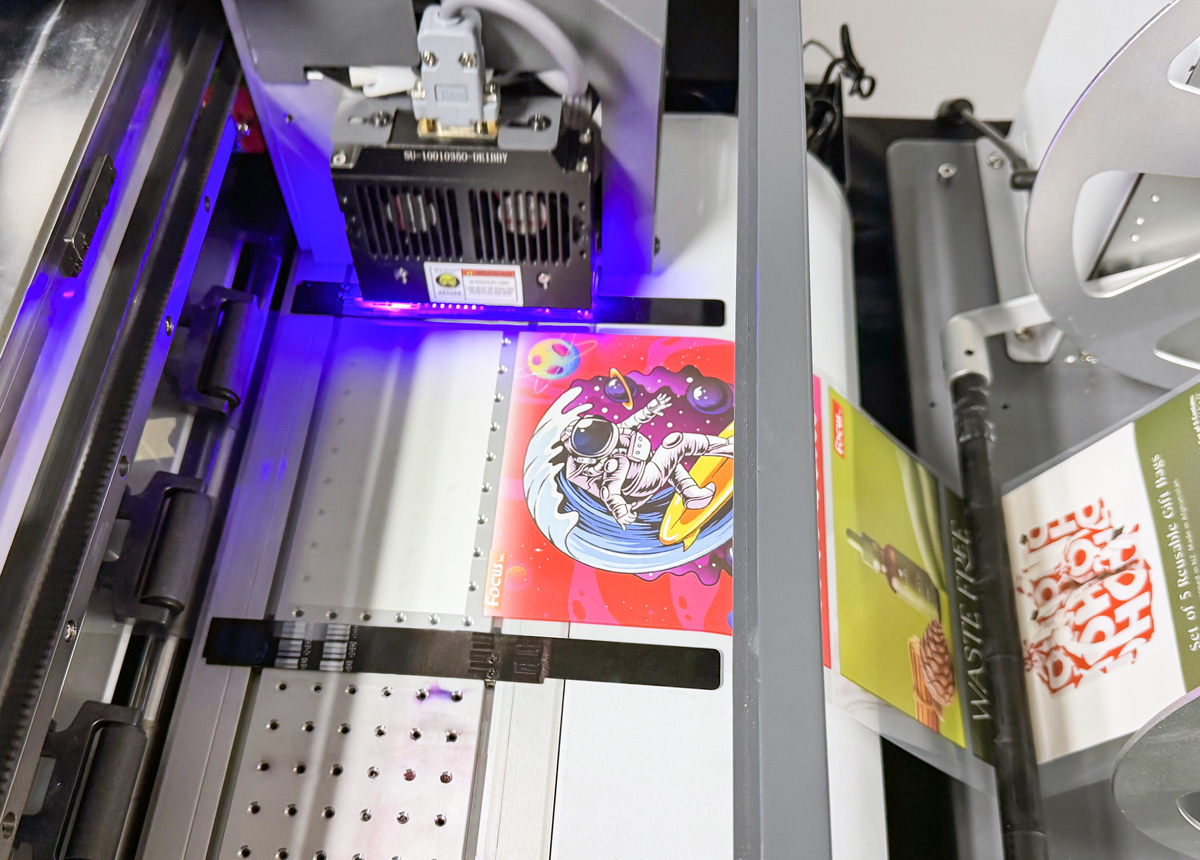

uv label printing machine printing process

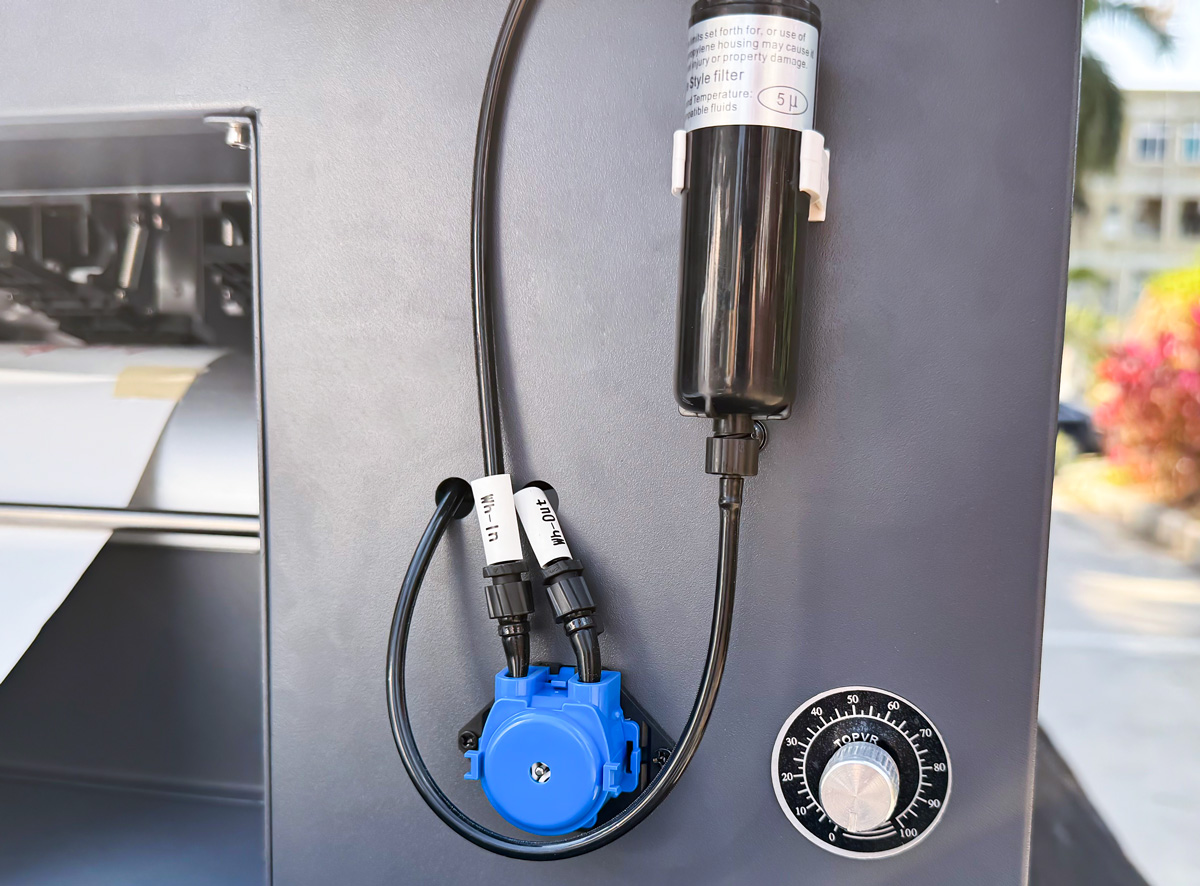

High quality white ink circulation peristaltic pump made from gear motor to extended the service life significantly

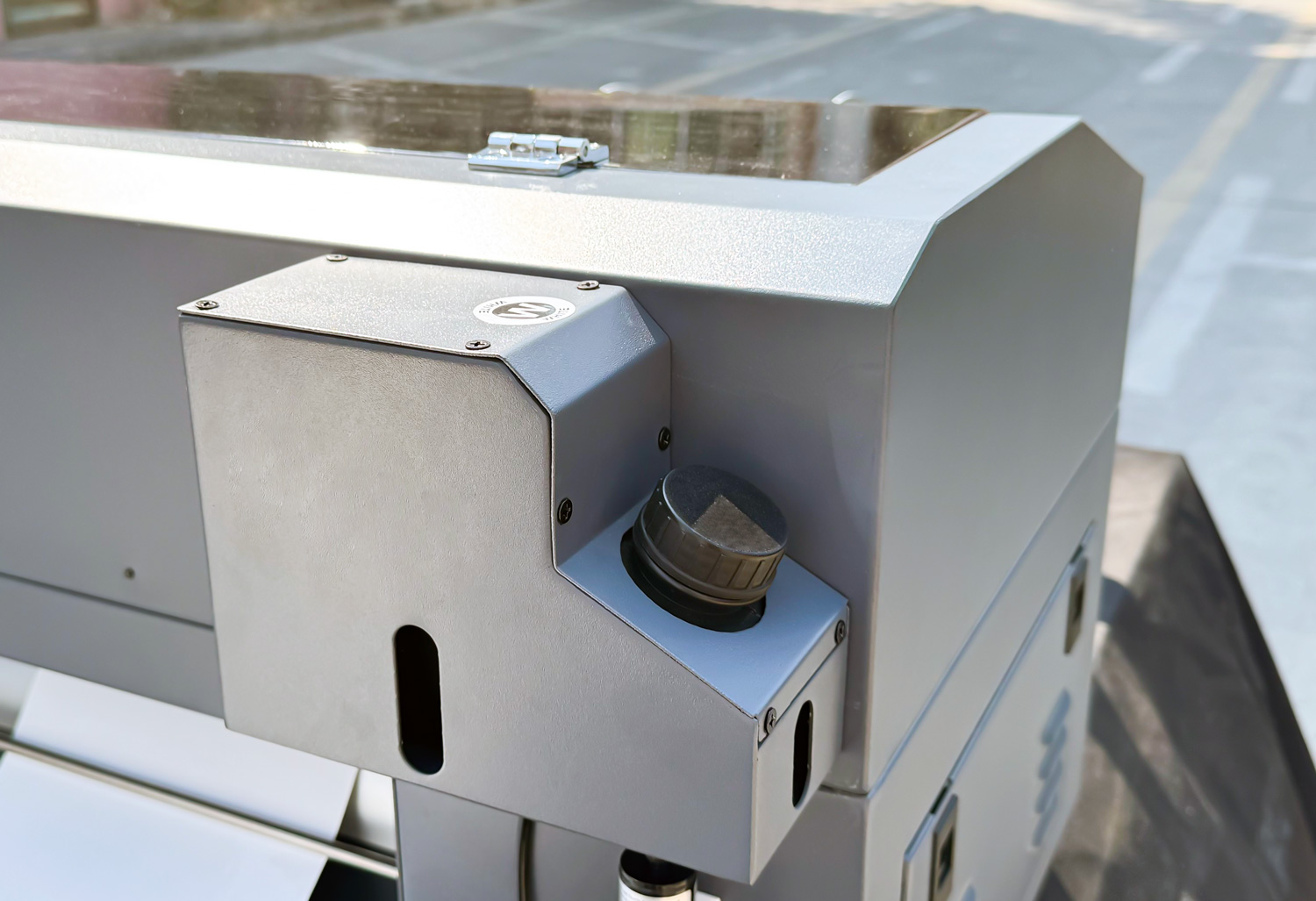

Configured with FOCUS INC. WIPCS white ink stirring system to prevent white ink precipitation and thus prevent nozzle clogging

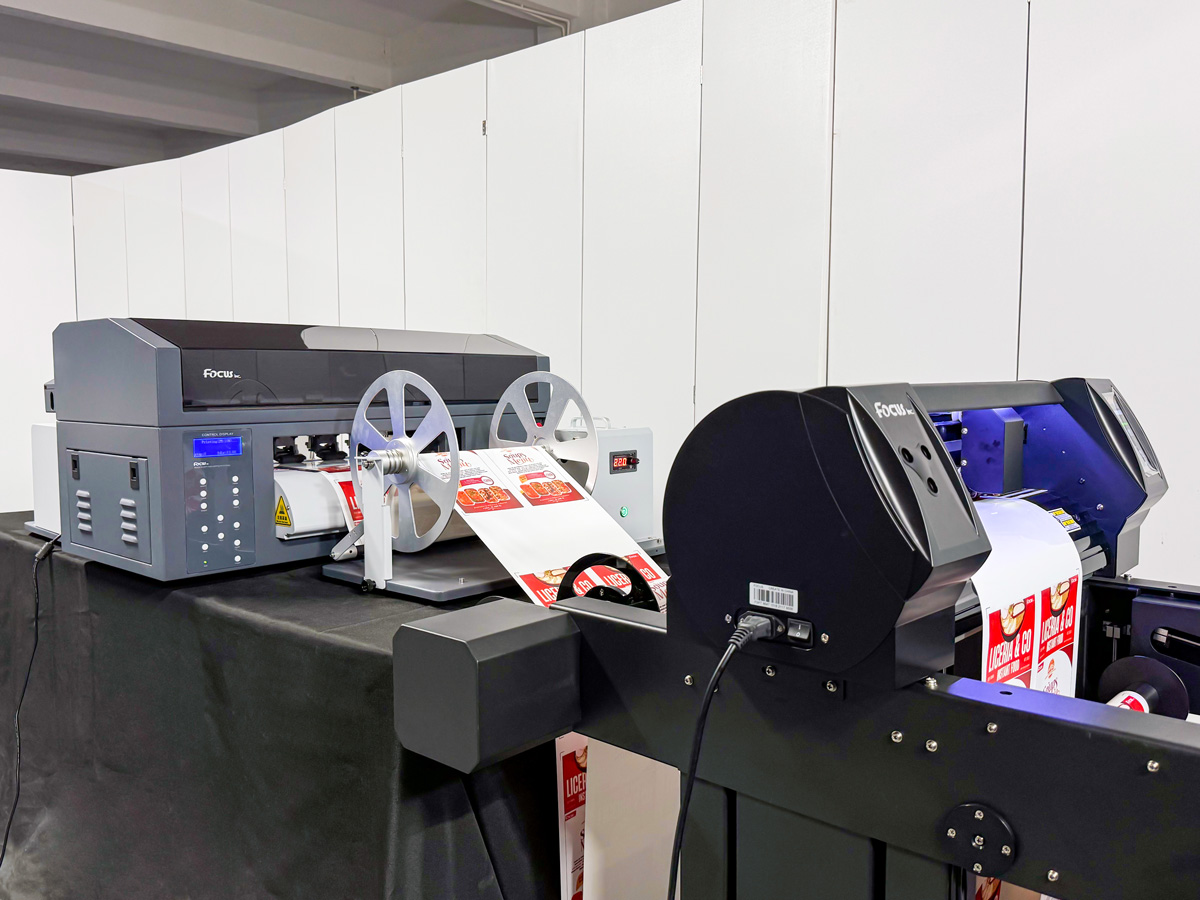

Can be used with automatic die-cutting, waste removal and rewinding system to achieve automated production

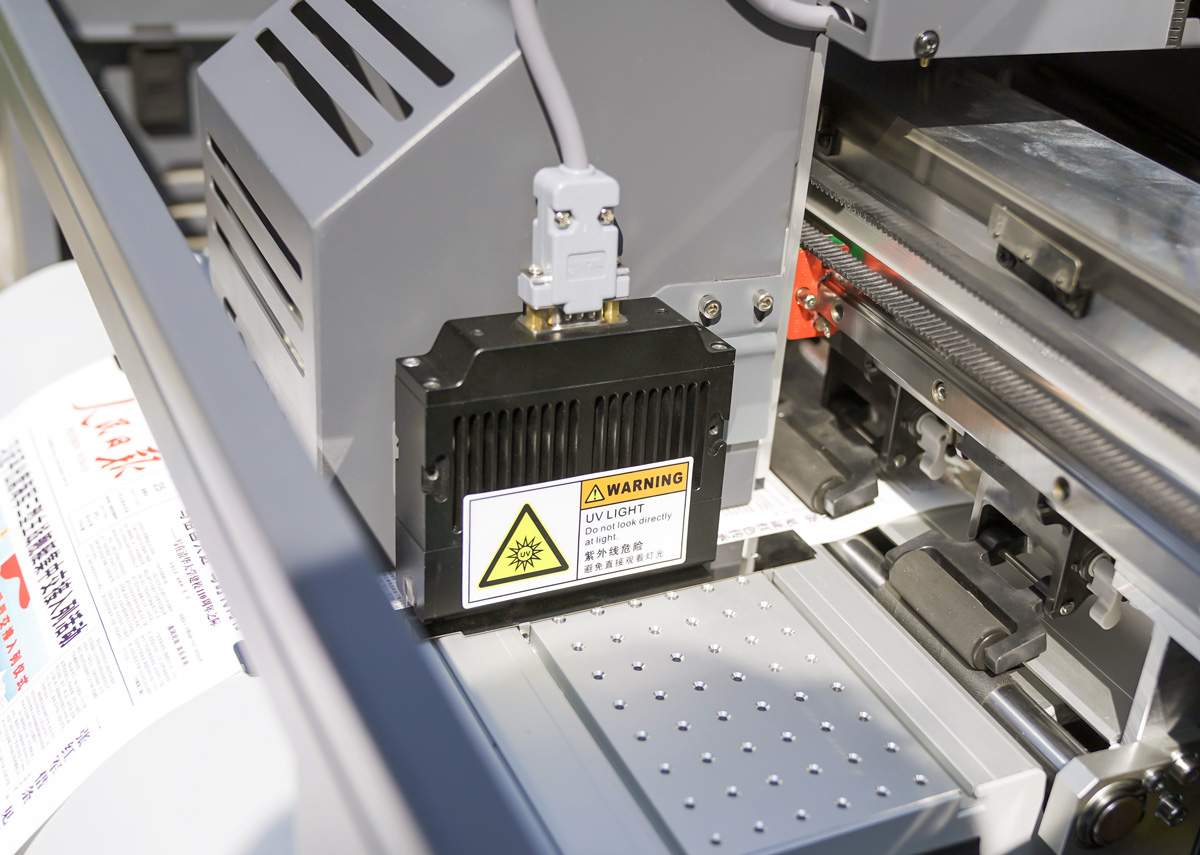

Dual UV LED curing lamp UV
Self tension control baffle plate allow to load max
Self tension control rewinder
Support 75mm 40mm 25mm different roller inner diameter paper loading

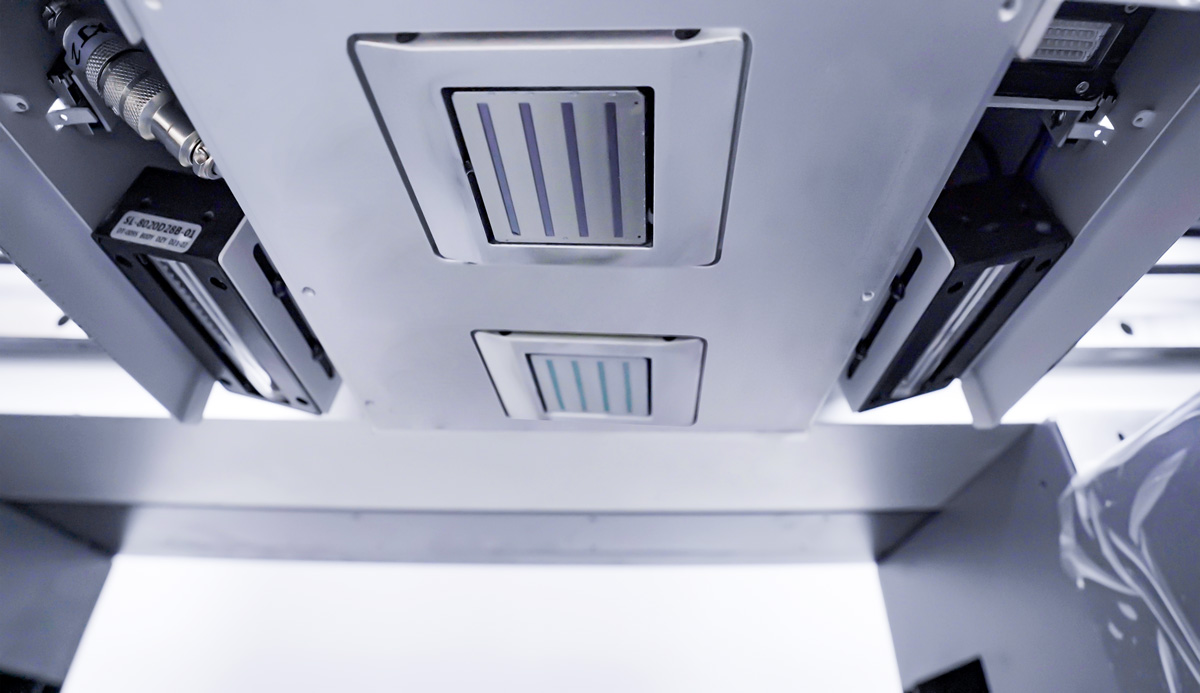

bottom view of printing components, achieve white +CMYK color printing on transparent roll materials , such as BOPP PP PET PVC rolls
Multi pinch feed roller to make paper feeding stable and faster

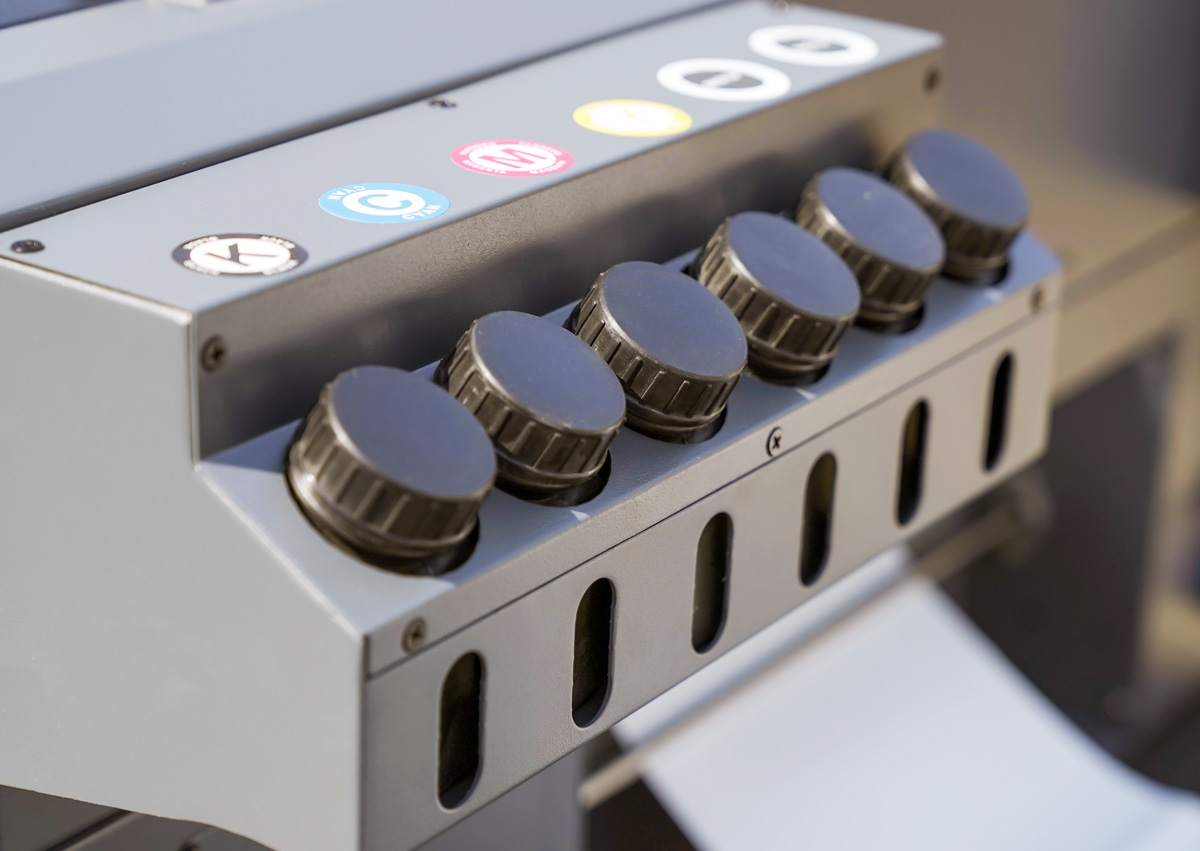

Support White with KCMY print same time to entend the print media as transparent or dark film media

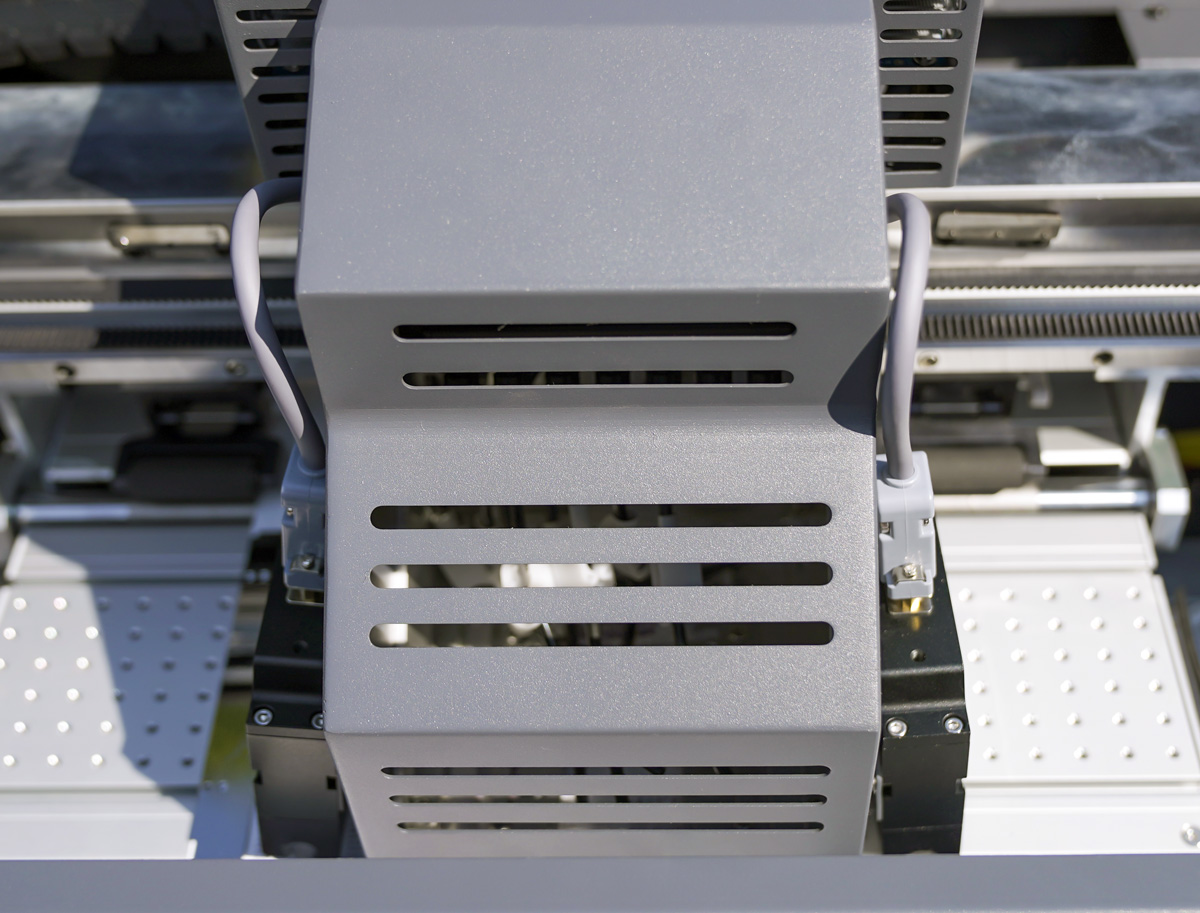

Dual UV LED Curing lamp can cure the ink after print efficaciously
Fast exchange roll paper kit
All keel made from high quality Pressure casting aluminum to ensure the high speed stable printing
