Product Specification
| Type | desktop single pass printer for packaging printing | Model | Falcon-491S |
| Params | Focus Inc. Falcon-491s Series Desktop Direct To Packaging Inkjet Printer Specifications
Maximum printing area：8.26" (210mm*Y no limited)
Print head： 1pc HP A4 Pagewide Print Head, print 21 cm width ； 1pc HP A3 Pagewide Print Head, print 30 cm width"
Print Nozzle Ammount ： 42240 Nozzles (4224*10 Rows)
Media size： Maximum load size 15.8" (width) × Y no limited in. (400mm * Y no limited)
Maximum thickness： 7.08" in. (180 mm)
Printing method ： Hp Pagewide Bubble-Jet Print Technology
Print resolution (dots per inch)： 1200*300dpi, 1200*400dpi, 1200*600dpi, 1200*1200dpi
Print Head protection technology ： Carriage anti-scratch kit
Print speed ： 10~25meter/min (According to different resolution)
RIP software：Control &Rip All in one (Included) / Optional
Control interface ： Touch screen go with PLC
Media type： Corrugated paper, Pizza boxs, Tote shopping bags, Paper cups, Envelope, Cards, Napkins, Roll tissue paper, inkjet label, wood ...
Media margin aligment Laser aligment 2 pcs Automatic Laser guideline margin
Media height control Electronic Touch screen control electronic up down motion
Auto media Feeder Electronic Automatic media Feeder Aavaliable, Automatic card and paper release sender, Optional purchase
Ink Type： Aqueous, Dye,Pigment, Edible
Color： Black, Cyan, Magenta, Yellow
Ink tank capacity ：250ml per each color
Media vacuum system： Vacuum power 200W
Vacuum control： Touch screen control
Machine size ： 34.8" (L) × 29.4" (W) × 23.2" (H) in. (884 × 746× 589 mm)
Packing size ： 63.8" (L) × 35.8" (W) × 32.6" (H) in. (1,084 × 910× 830 mm)
Net weight ： 231 lb (105kg) Main printer
Gross weight ： 297 lb (135 kg) Main printer
Environment Temperature ： 59 to 86 °F (15 to 30 °C)
Humidity ： 40 to 80 %
Included items ： Print cable, cleaning kit, USB Flash of manuals and installation videos
Connectivity： Ethernet cable
Power requirements： 20A Single-phase 220 V, 50HZ
Acoustic noise level 75 dB (A) or less
Software System Requirements
Print control System： Windows® 7/10 (64 bit) Recommend
(Bundled) CPU Intel® Core™ i5, 2.5 GHz or more RAM 8 GB or more
Video card and monitor ： A resolution of 1,152 × 854 with 16 bit color or higher
HDD Install space 1 GB or more
Working space 100 GB | Material | Print beam: High-strength extruded aluminum alloy
Main machine frame: Thickened welded carbon steel
HP print head assembly: Heat-resistant industrial plastic + precision alloy metal parts
X/Y linear guide rail: High-hardness steel
Conveyor belt: Anti-offset PU/TPU/PET/PP rubber
Correction roller: Stainless steel with silicone coating
Ink tank & ink stack: Anti-corrosion modified PP plastic
Printhead protective cover: Aluminum alloy
Side wing & outer housing: Galvanized steel sheet
Drive motor shell: Cast aluminum alloy
Transmission gear: Quenched alloy steel
Ink pipeline: Fluorine rubber
Touch screen shell: Impact-resistant ABS plastic |
| Applicable Industry | paper bags pizza box coffee bags cardboards printing manufacturing business | |

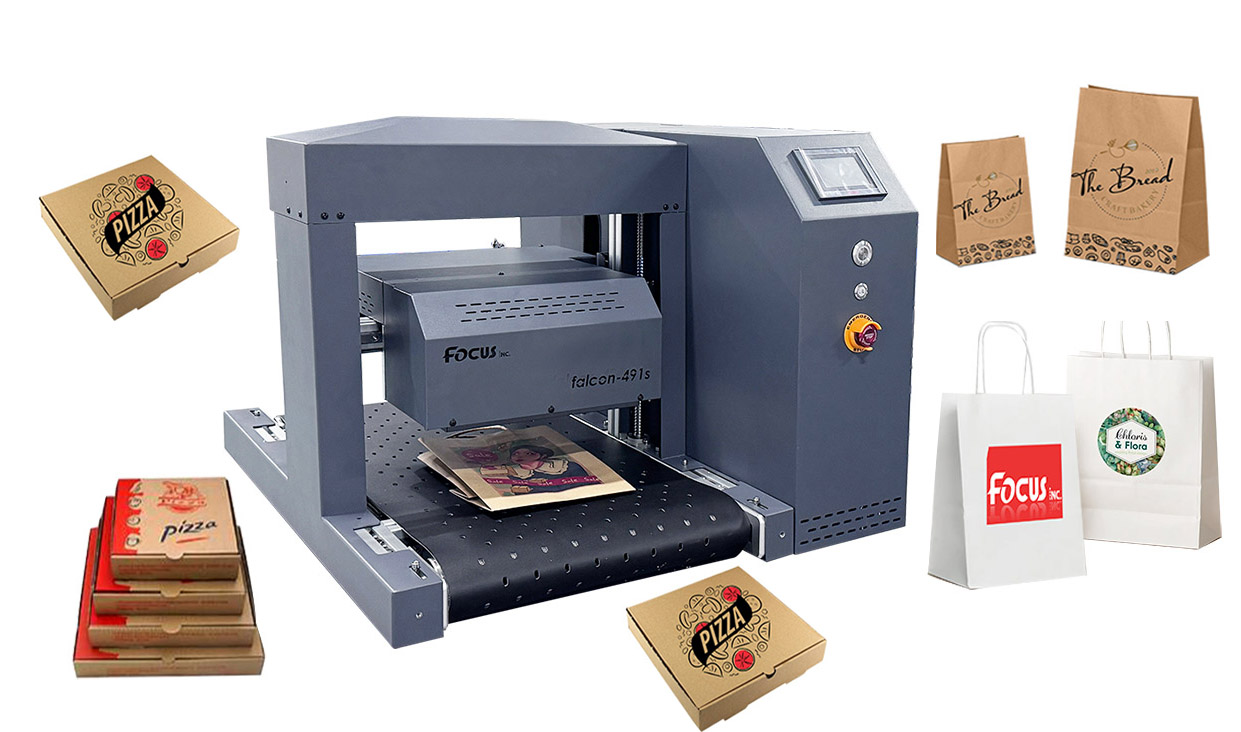

Falcon-491S desktop single pass printer

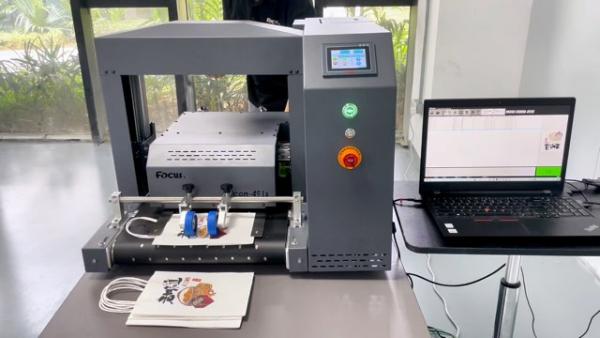

desktop single pass printer for paper bags printing Falcon-491S model
Falcon-491s desktop single pass packaging printer

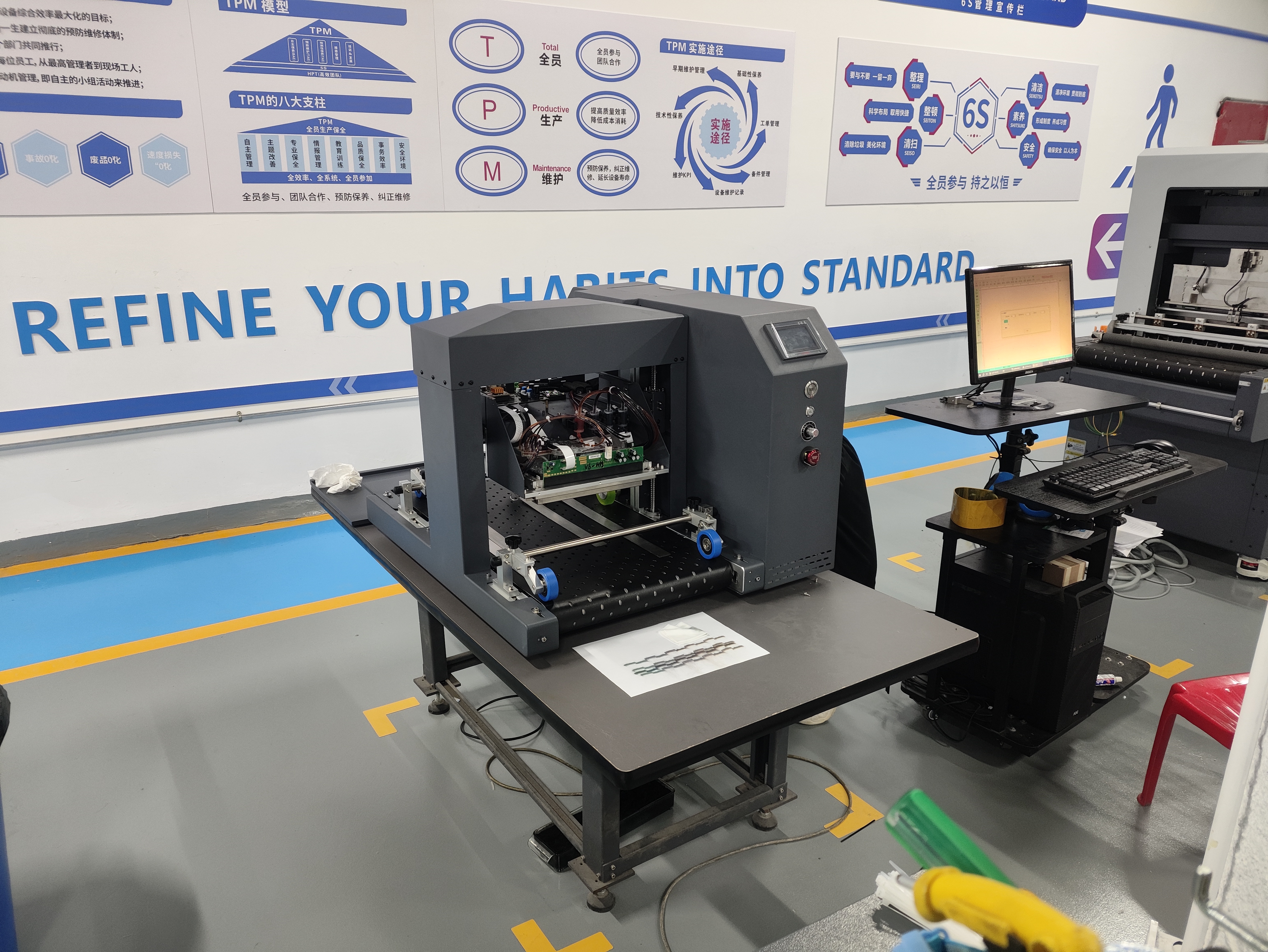

single pass printer on production line

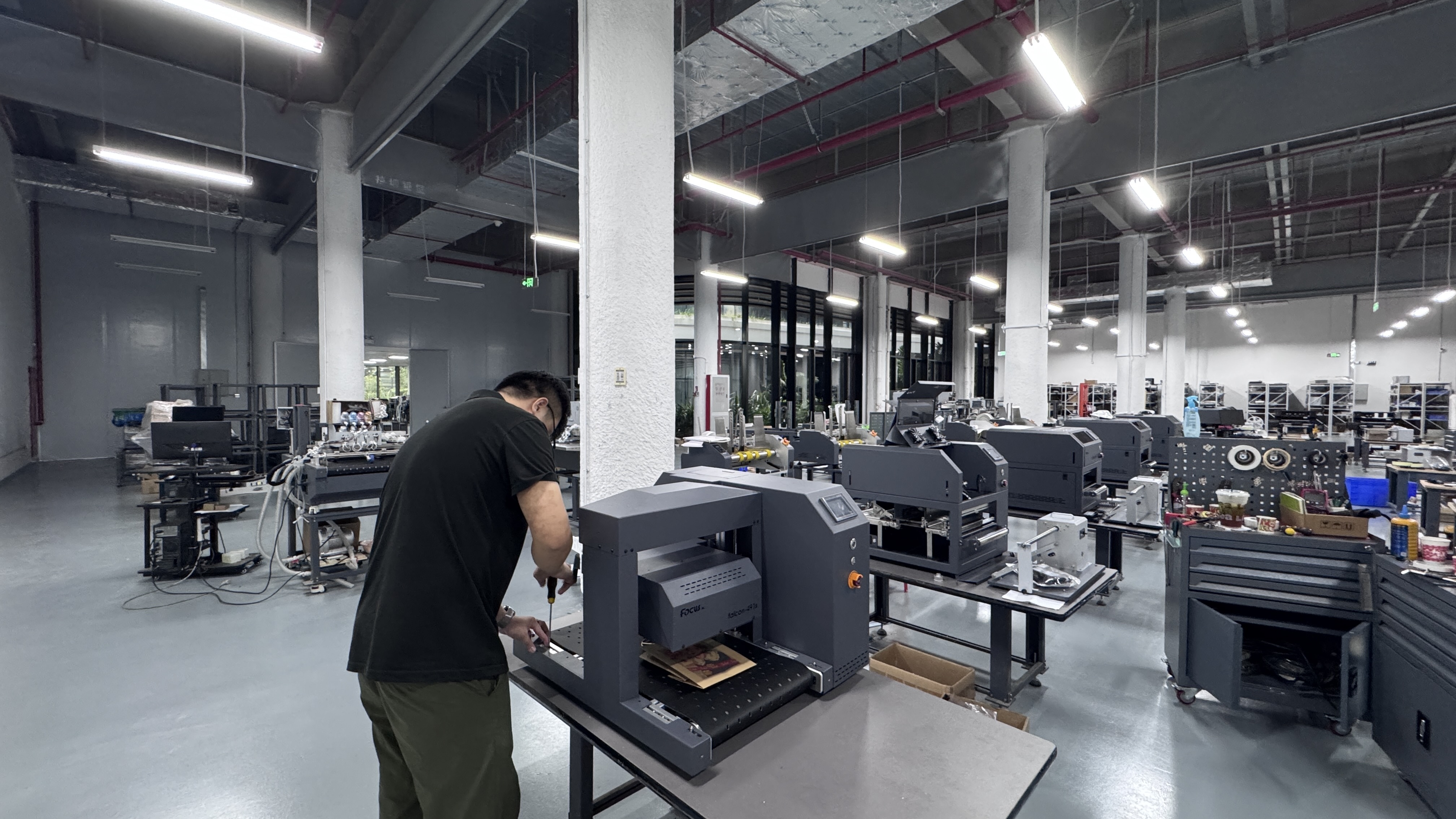

single pass printer strict quality control before delivery to customer

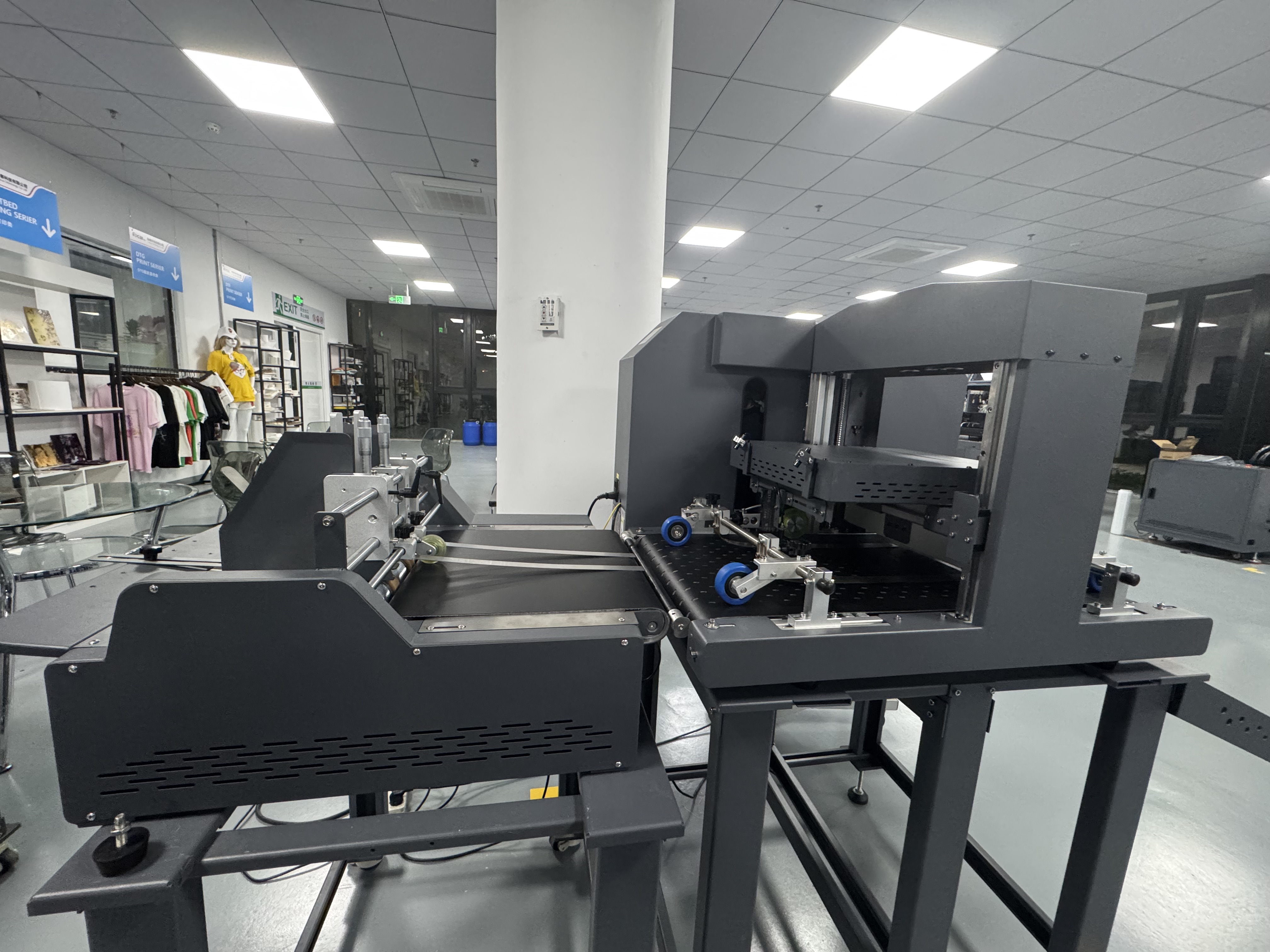

Falcon-491S desktop digital single pass printer can be equipted with automatic sheets feeder

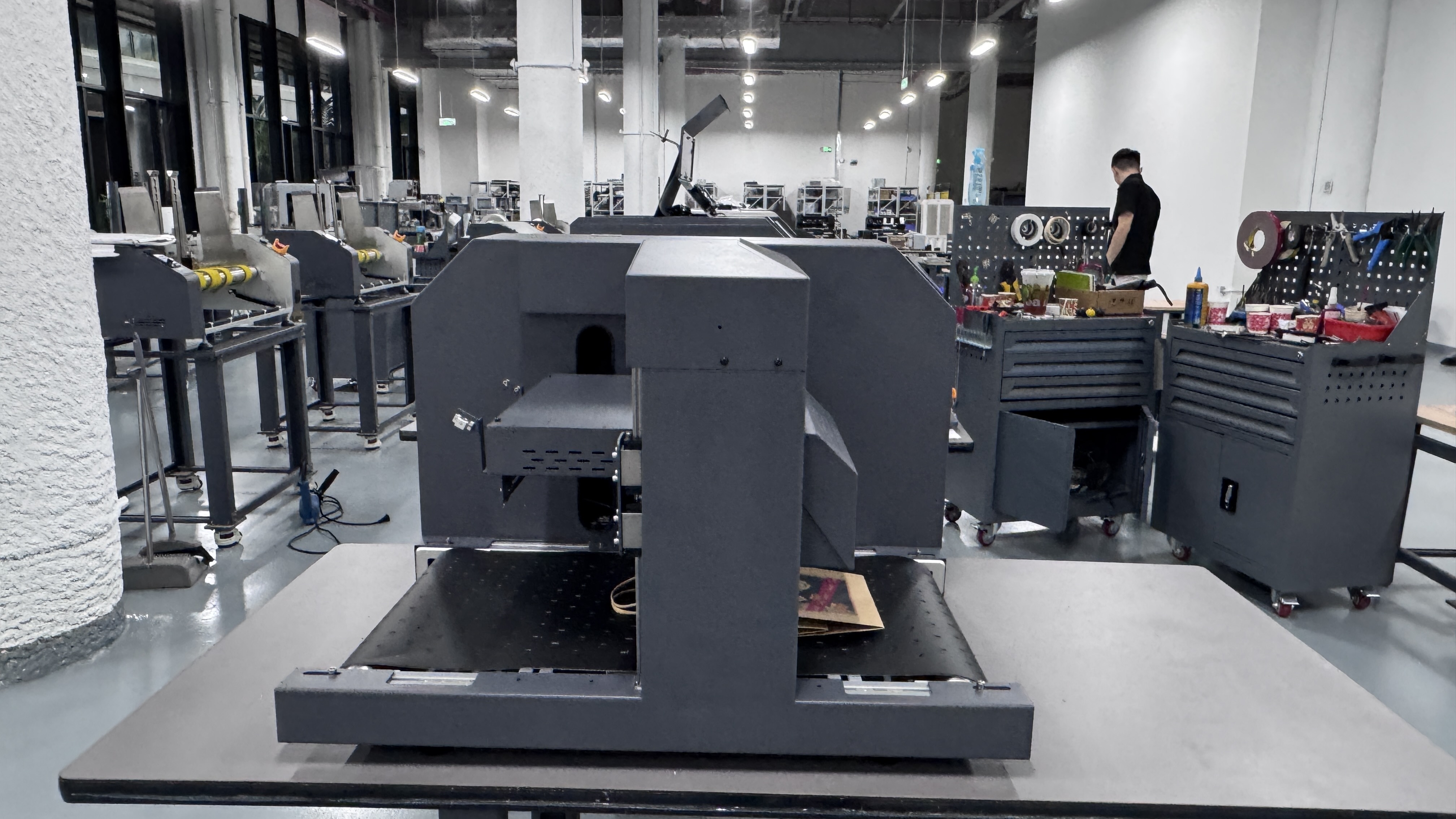

single pass paper bag printer on printing line
single pass desktop packaging printer machine stable printing
single pass printer for paper bag, small pizza box printing
large LED Touch screen

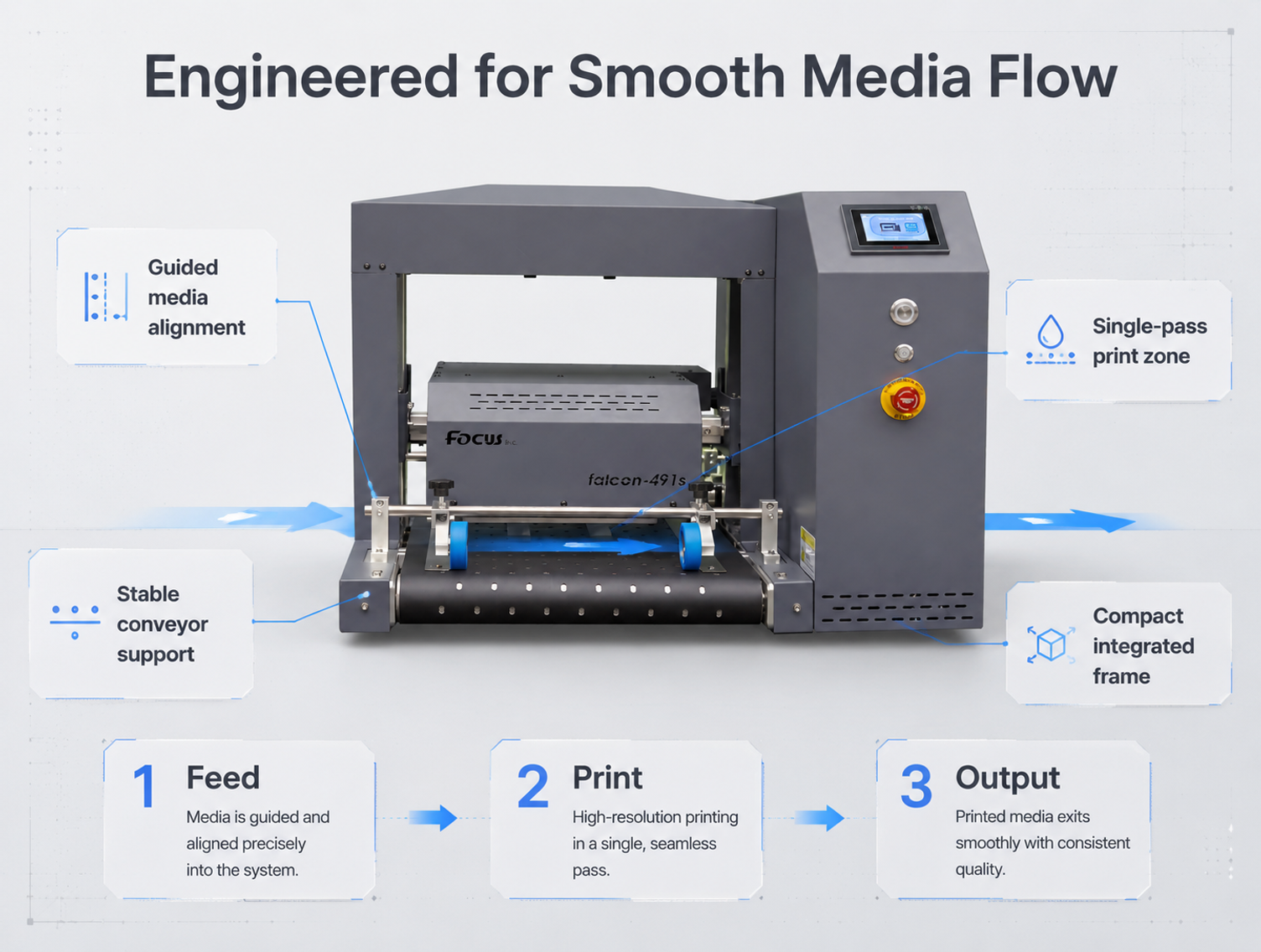

easy operate, turn on - set size and send image to printer, load printing material, touch screen to start print, 10 seconds whole process, one seconds inkjet finish
compact design small size desktop A3 printer, max 40cm width material loading, 18 cm thickness delivery

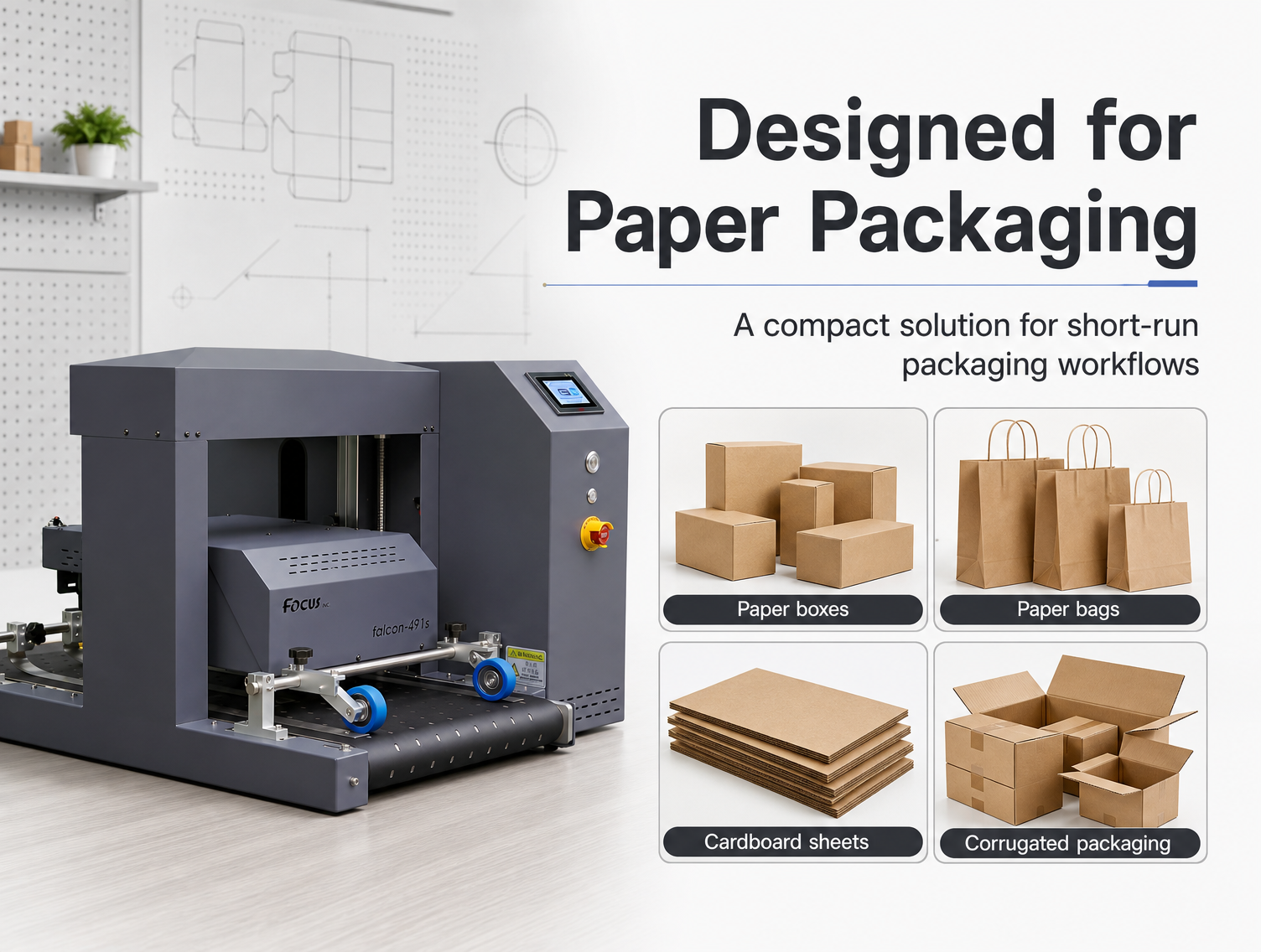

small single pass printer print on demand business

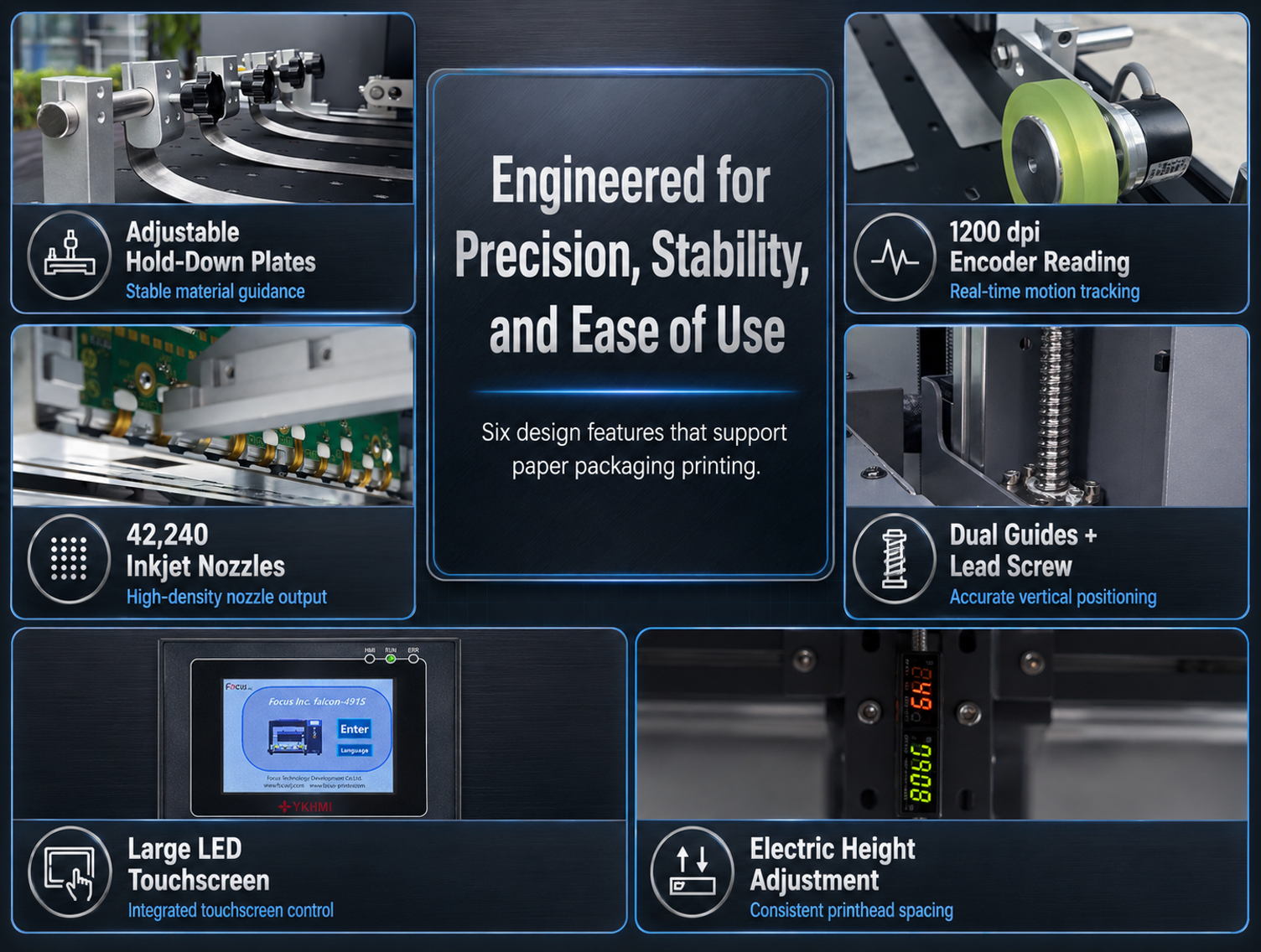

Designed to adapt to printing materials in various scenarios, with stable material feeding and a display screen for convenient operation near the machine.
stable operation and material printing deliver
Infrared detection-assisted printing positioning
HP A3 A4 page wide printer high percesion water base inkjet printing machine
51118591a35e477e89ab86f3f3ad5a21_original

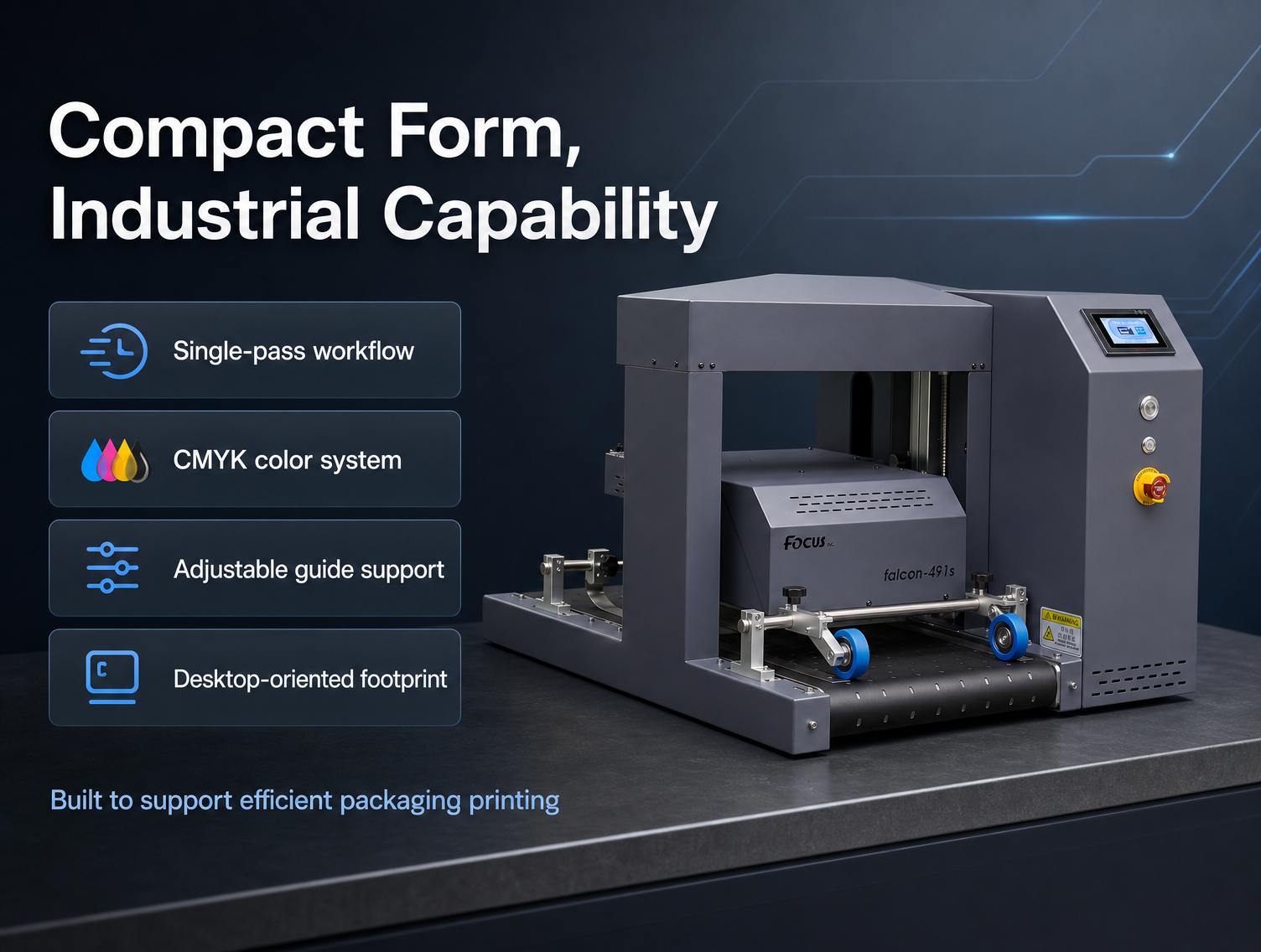

stable desktop single pass paper bag printing machine, small size for business start-up testing

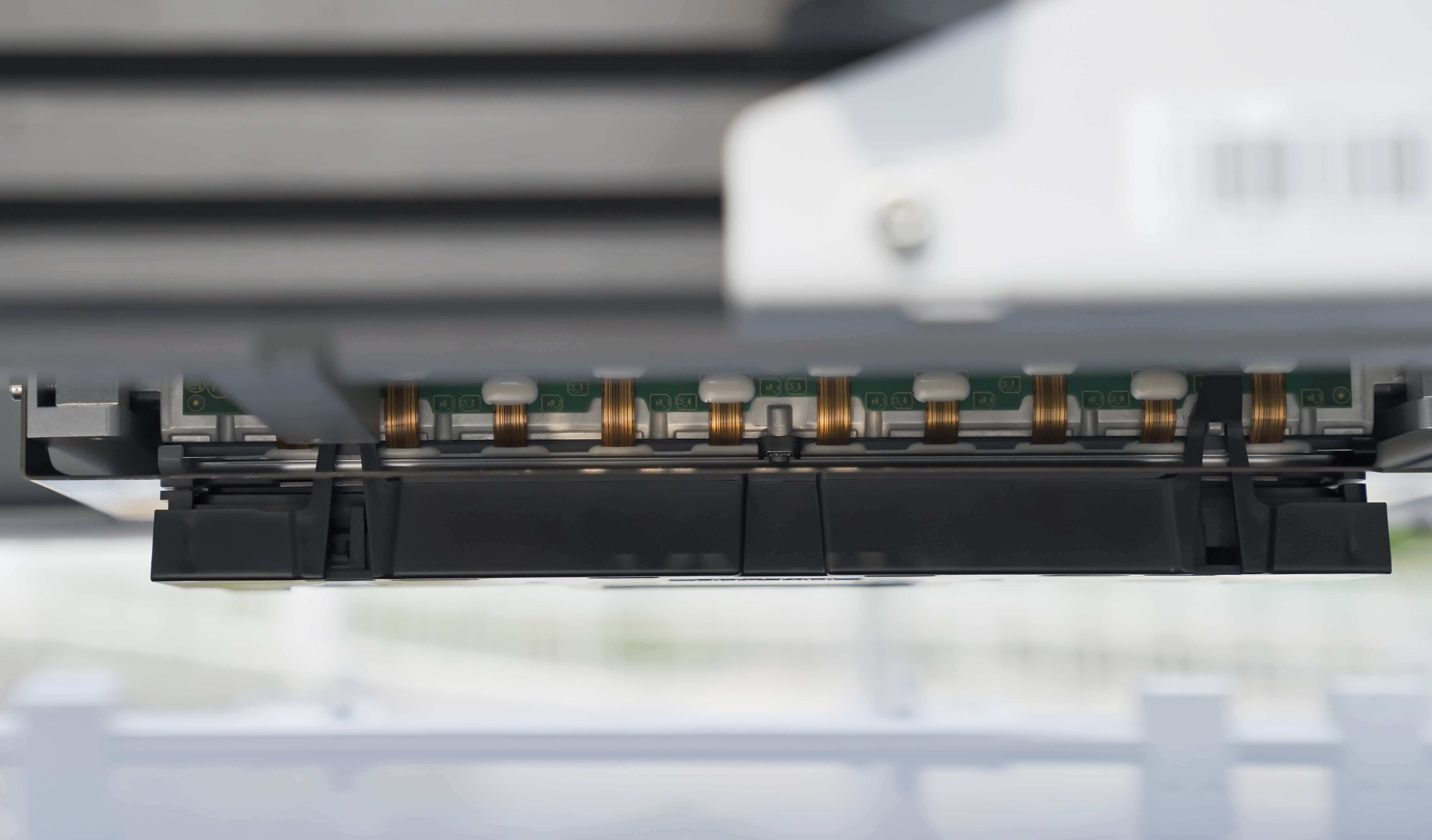

The fast snap-in ink stack effectively maintains the print head to prevent clogging

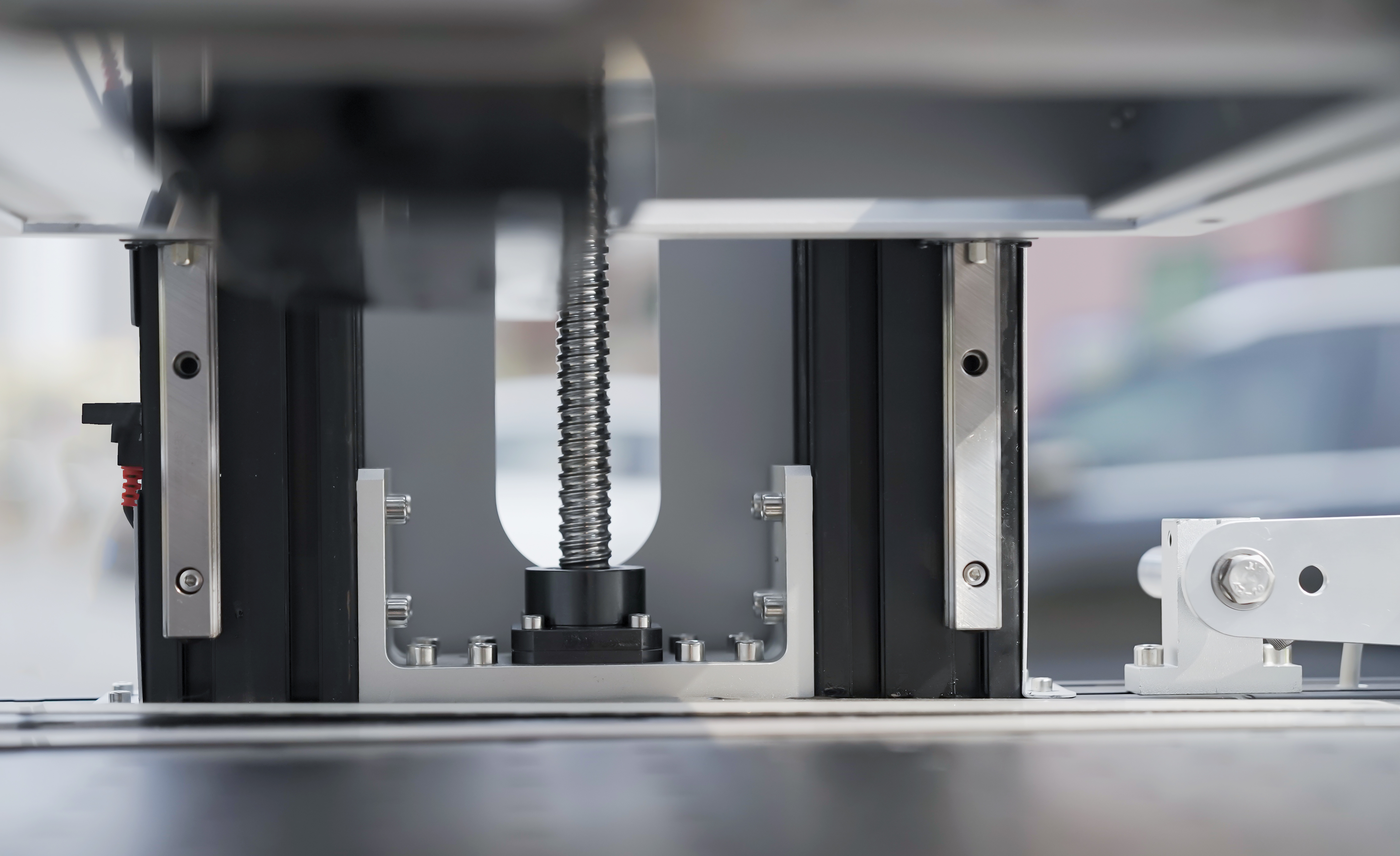

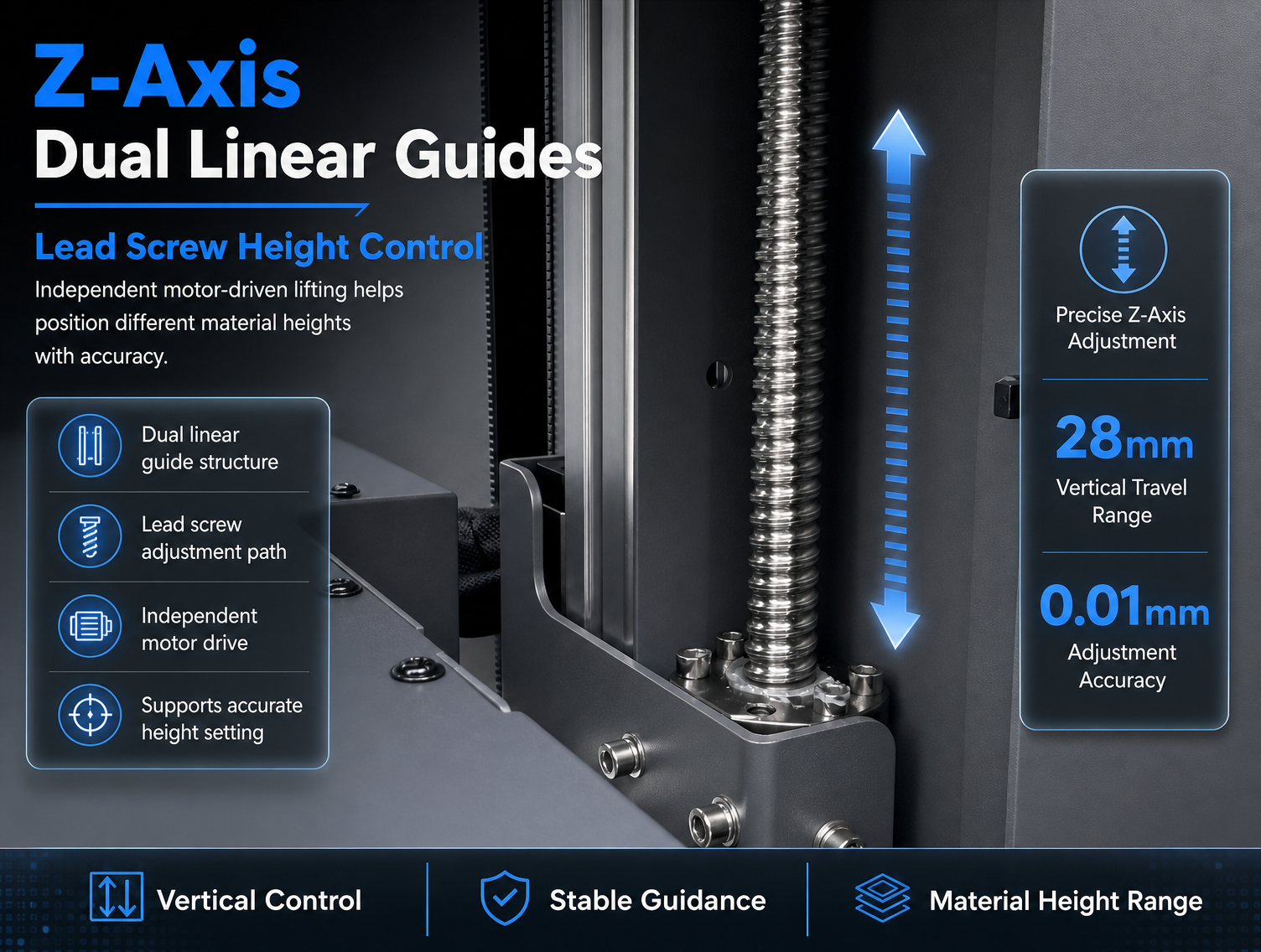

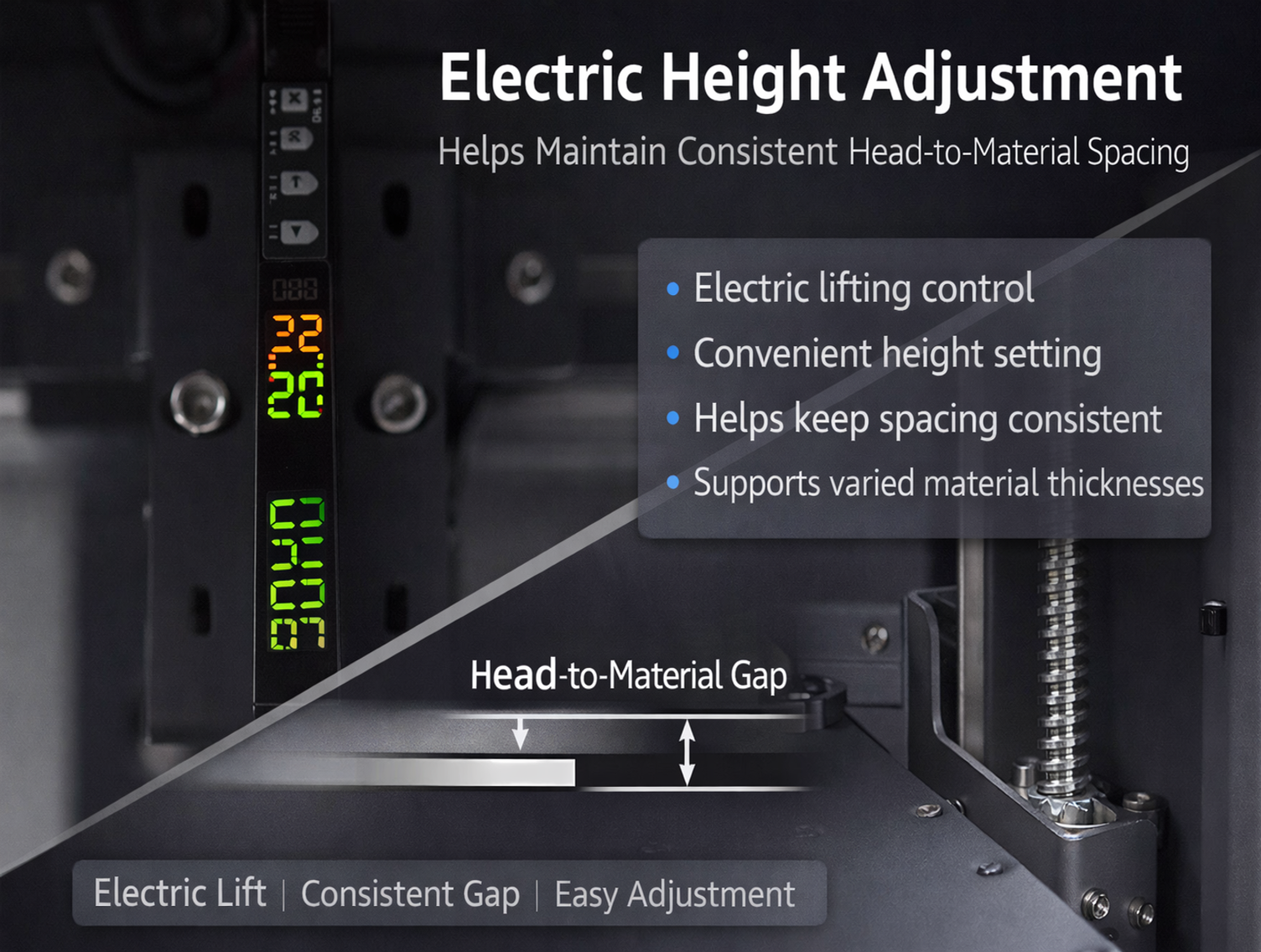

The electric lift control ensures the gap of the print head is consistent with the distance between the print head and the material

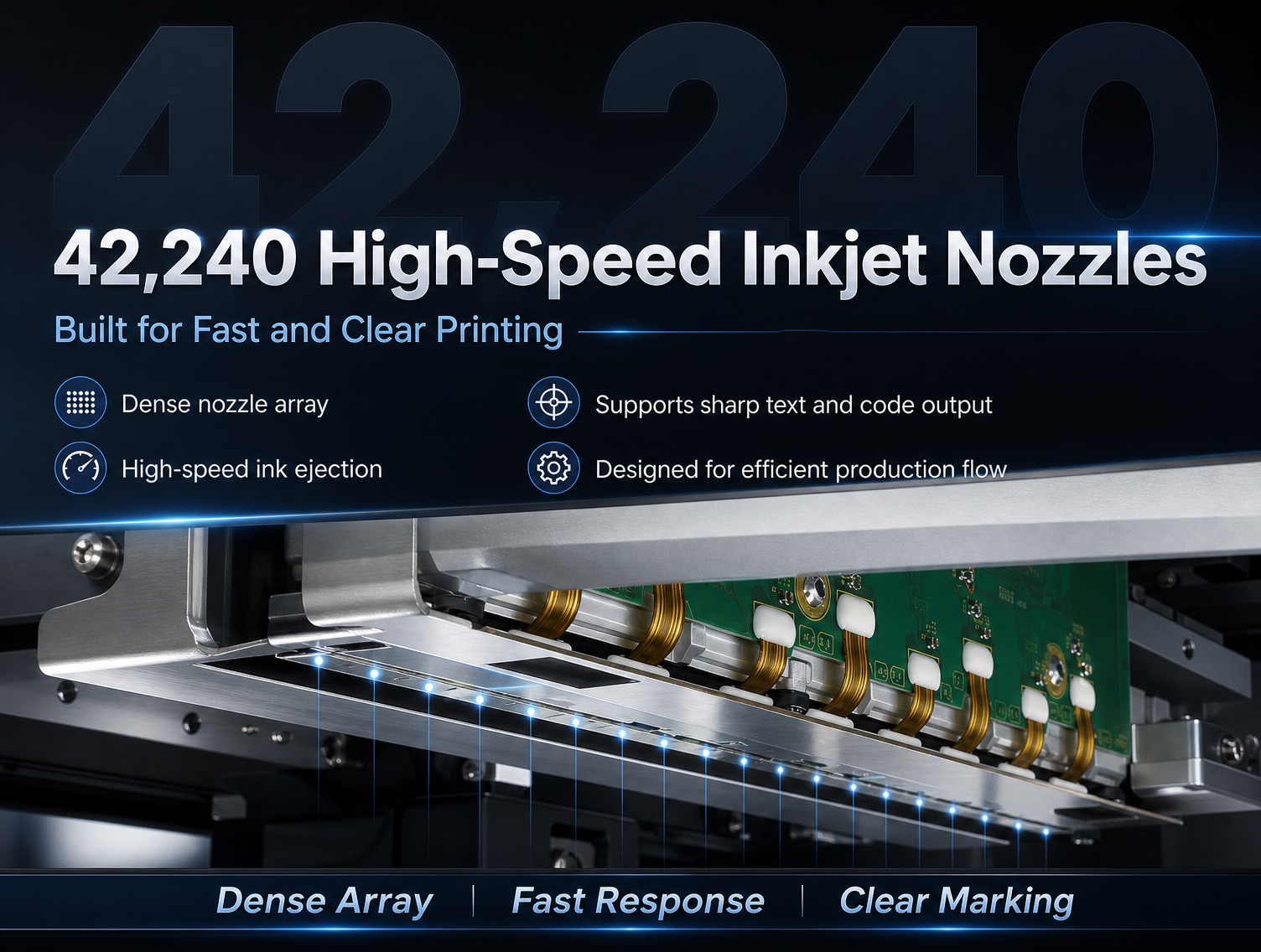

42240 ammount of high-speed inkjet nozzles enable high-speed and high resolution printing

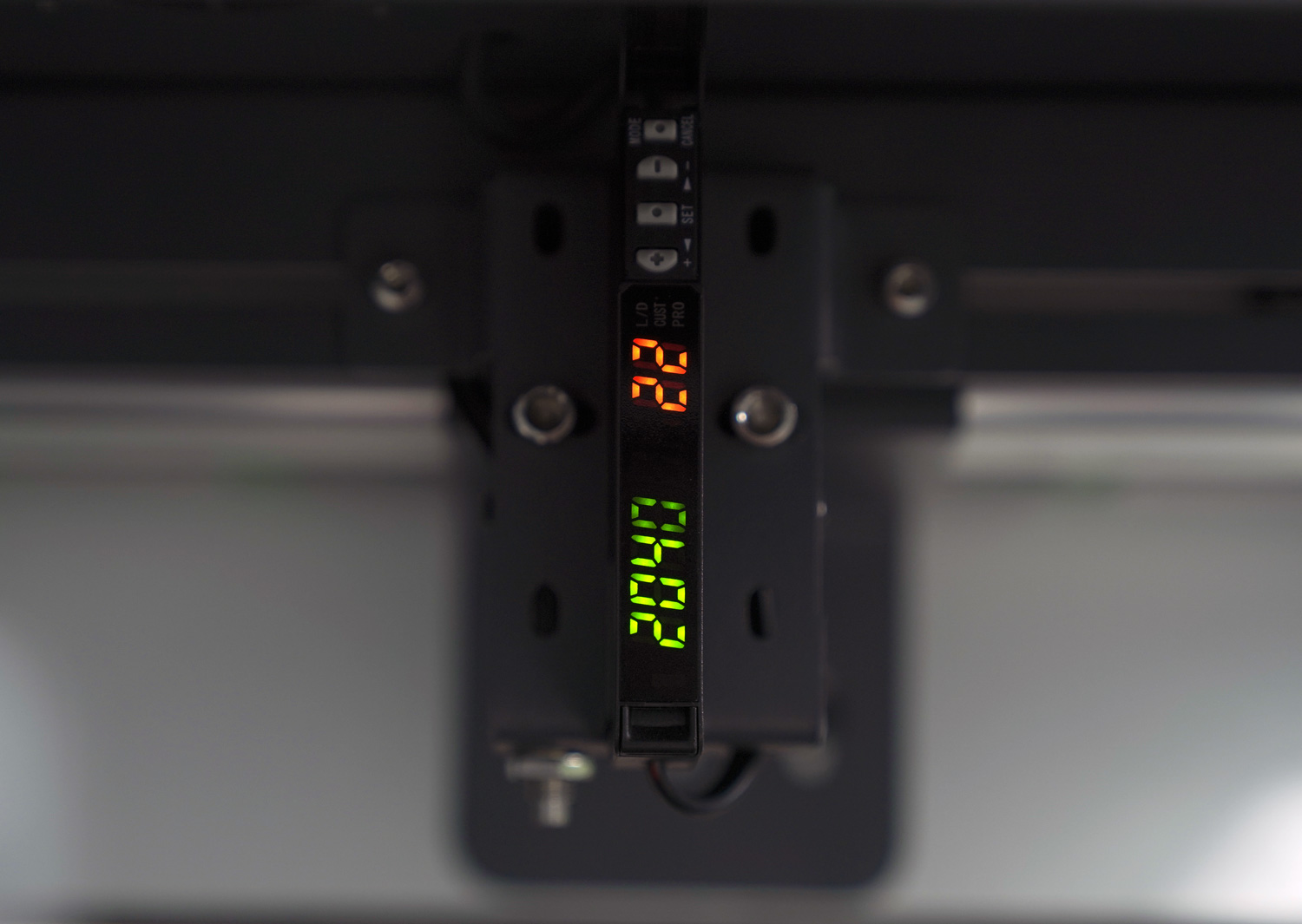

High-precision self-learning material feeding laser sensor can automatically sense and judge the background color of print material
Transparent waste ink pad easy to maintain and clean

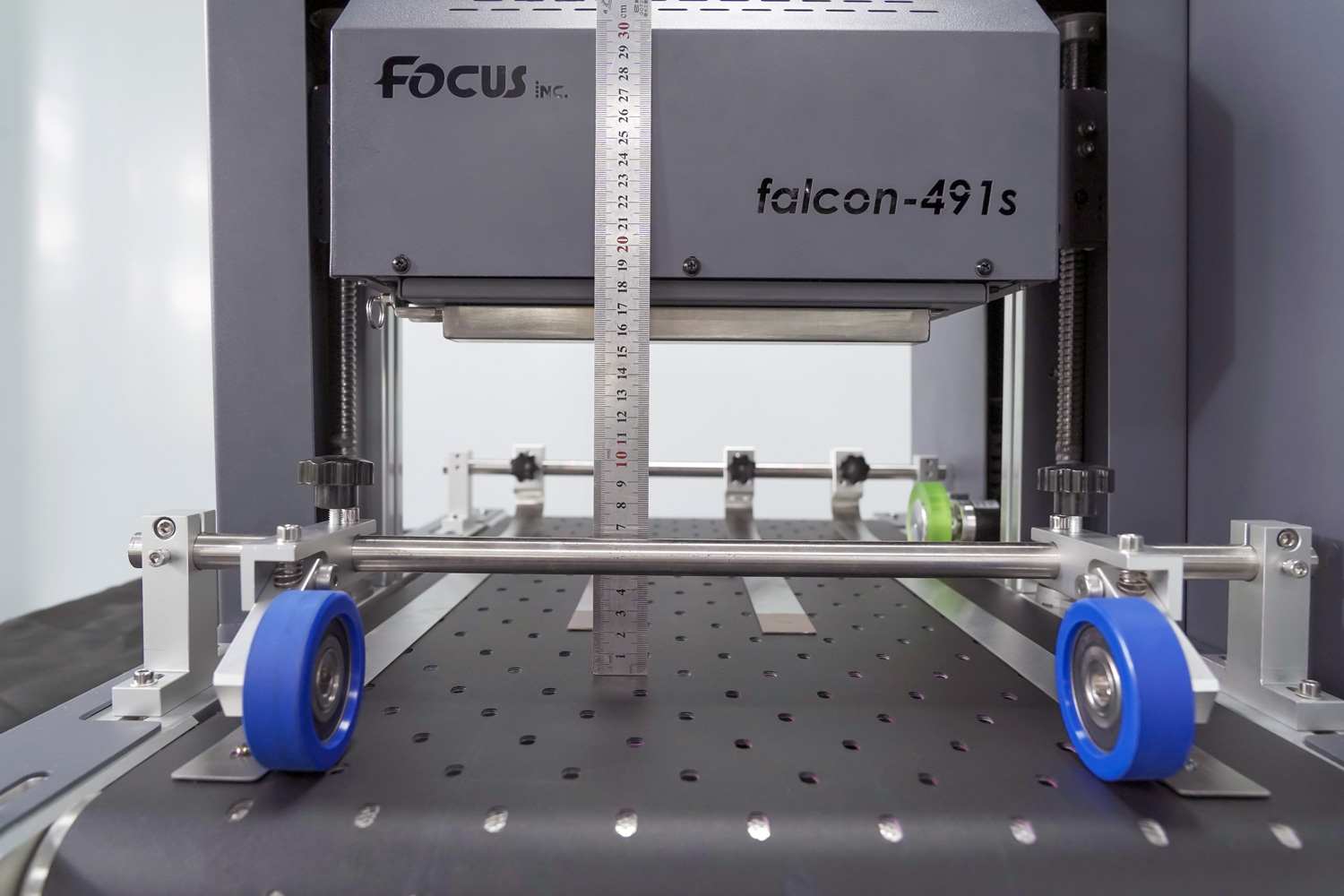

The maximum height of material is designed to be 180mm, which can achieve high-speed and high-definition printing for different material

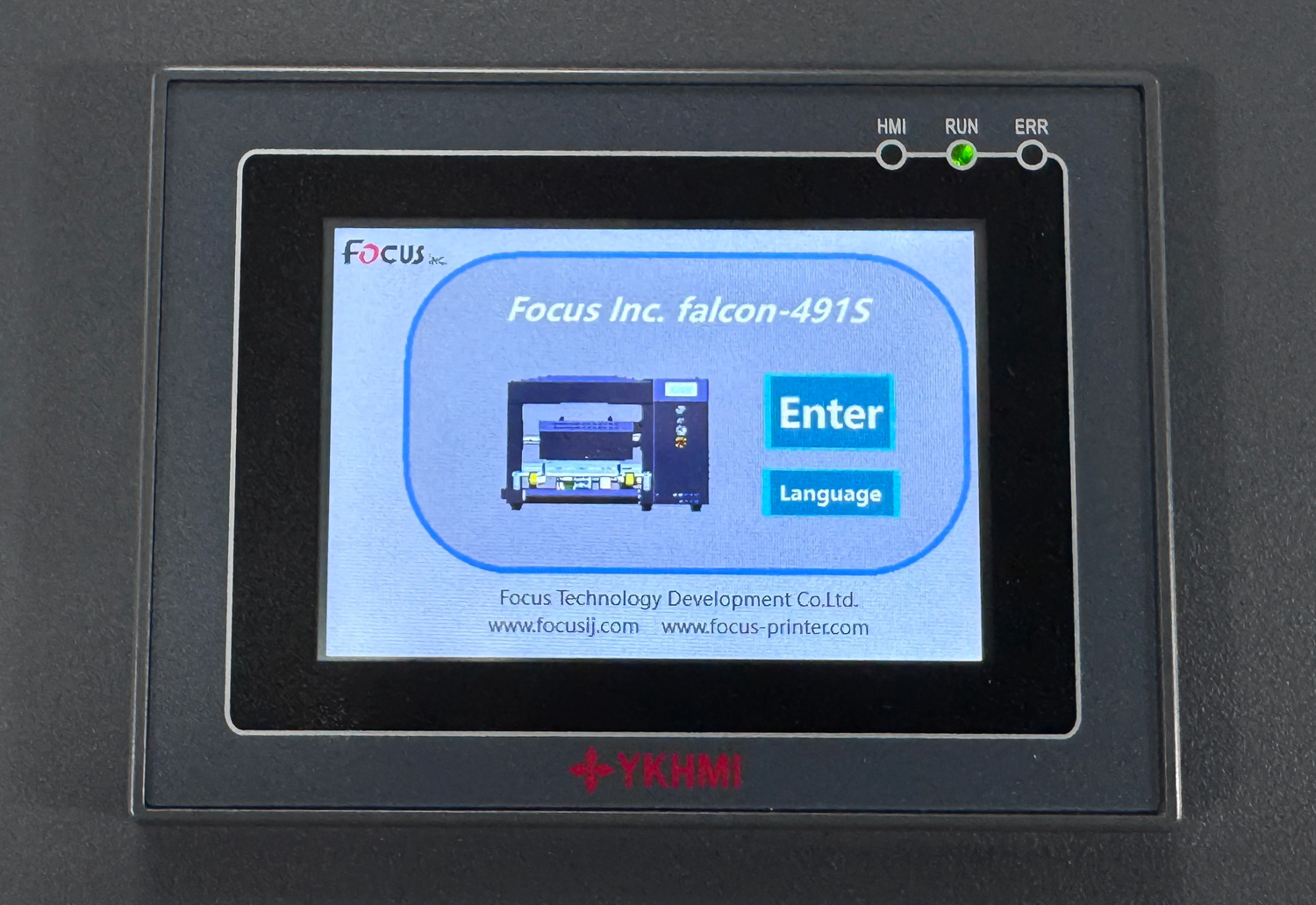

extra-large LED touch screen with integrated function design, convenient for machine operation and maintenance

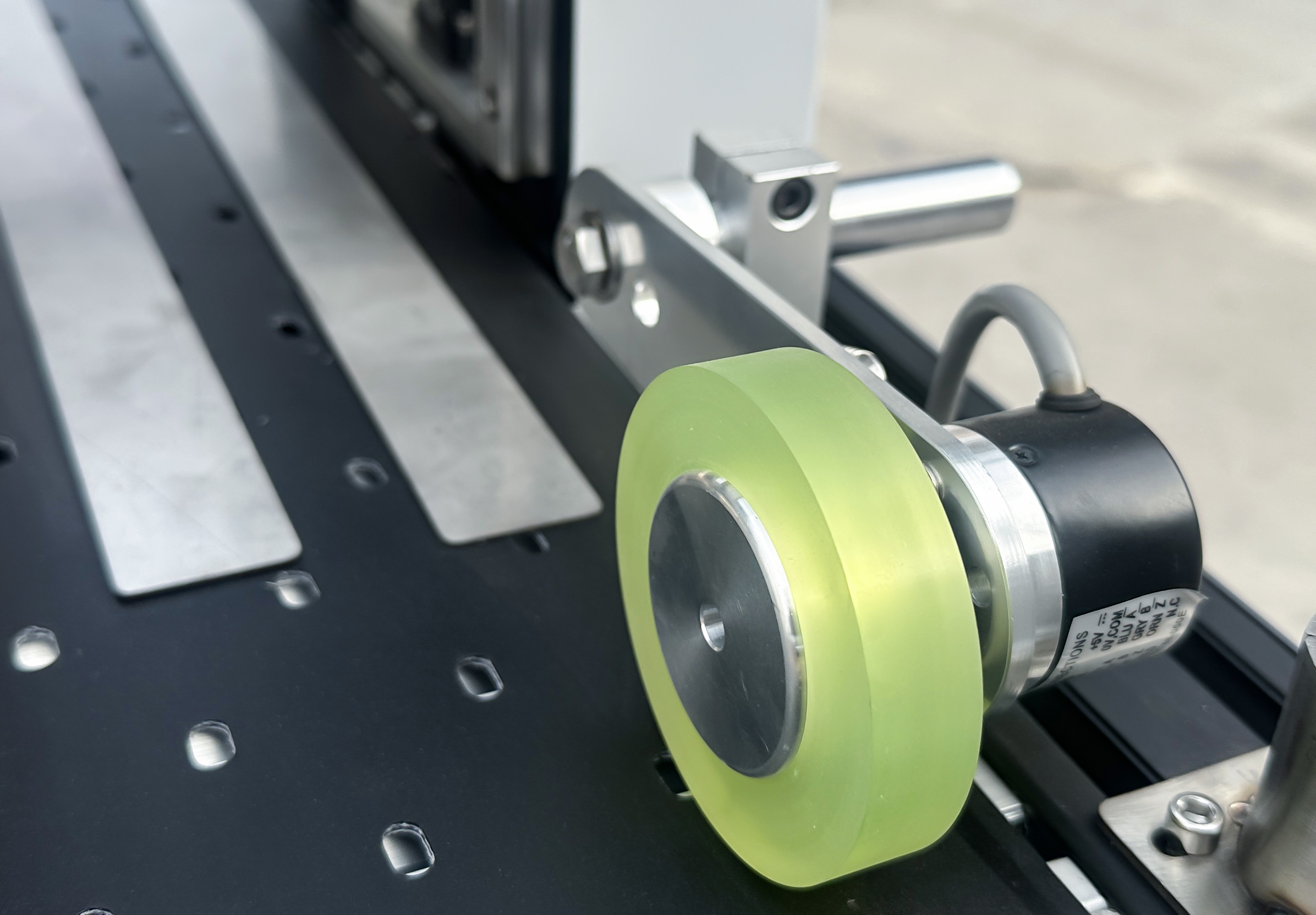

1200dpi high-precision real-time encoder reading of conveyer belt running speed

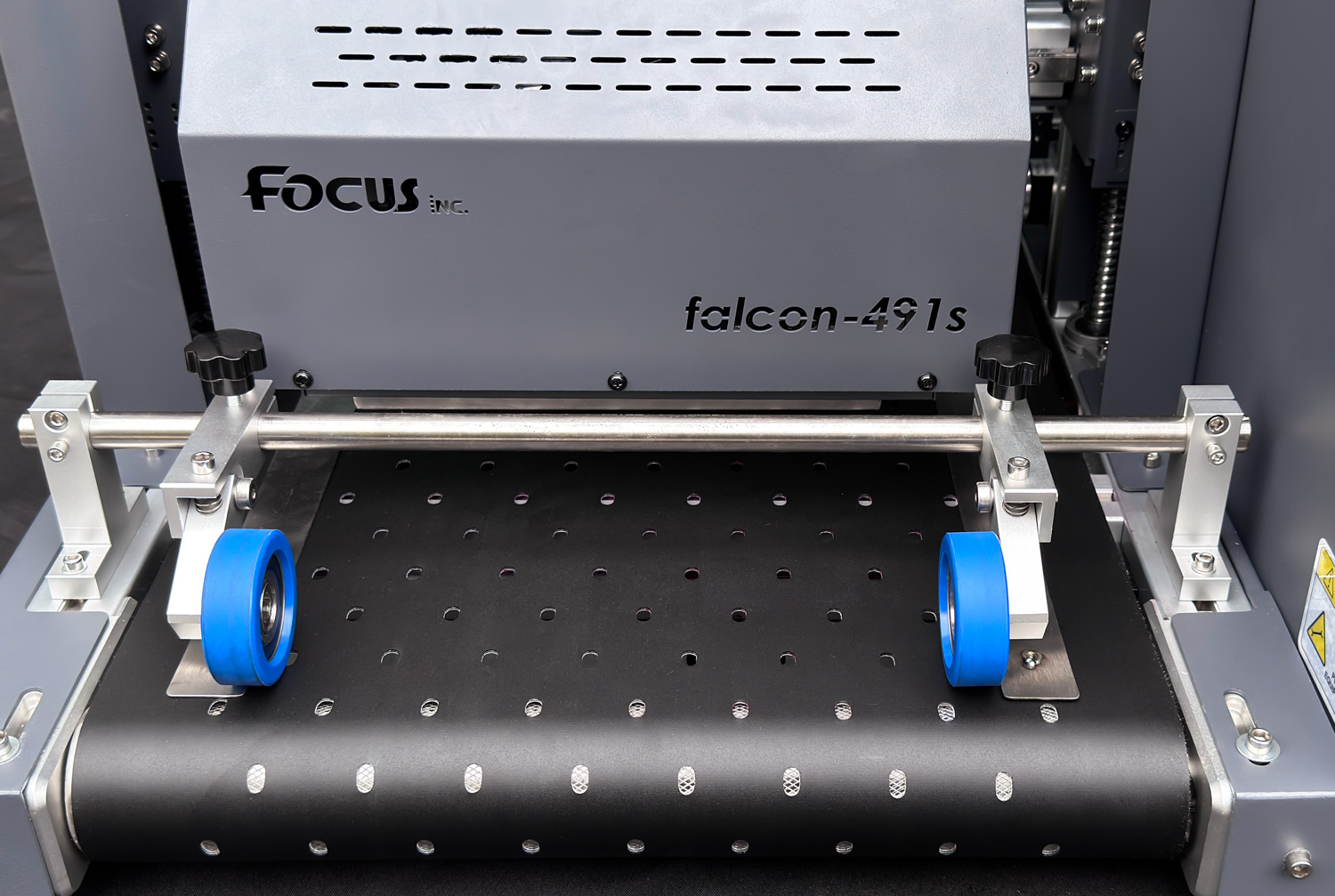

The design of two front elastic pressure paper sun gears enables easy integration of printing materials with the next production process

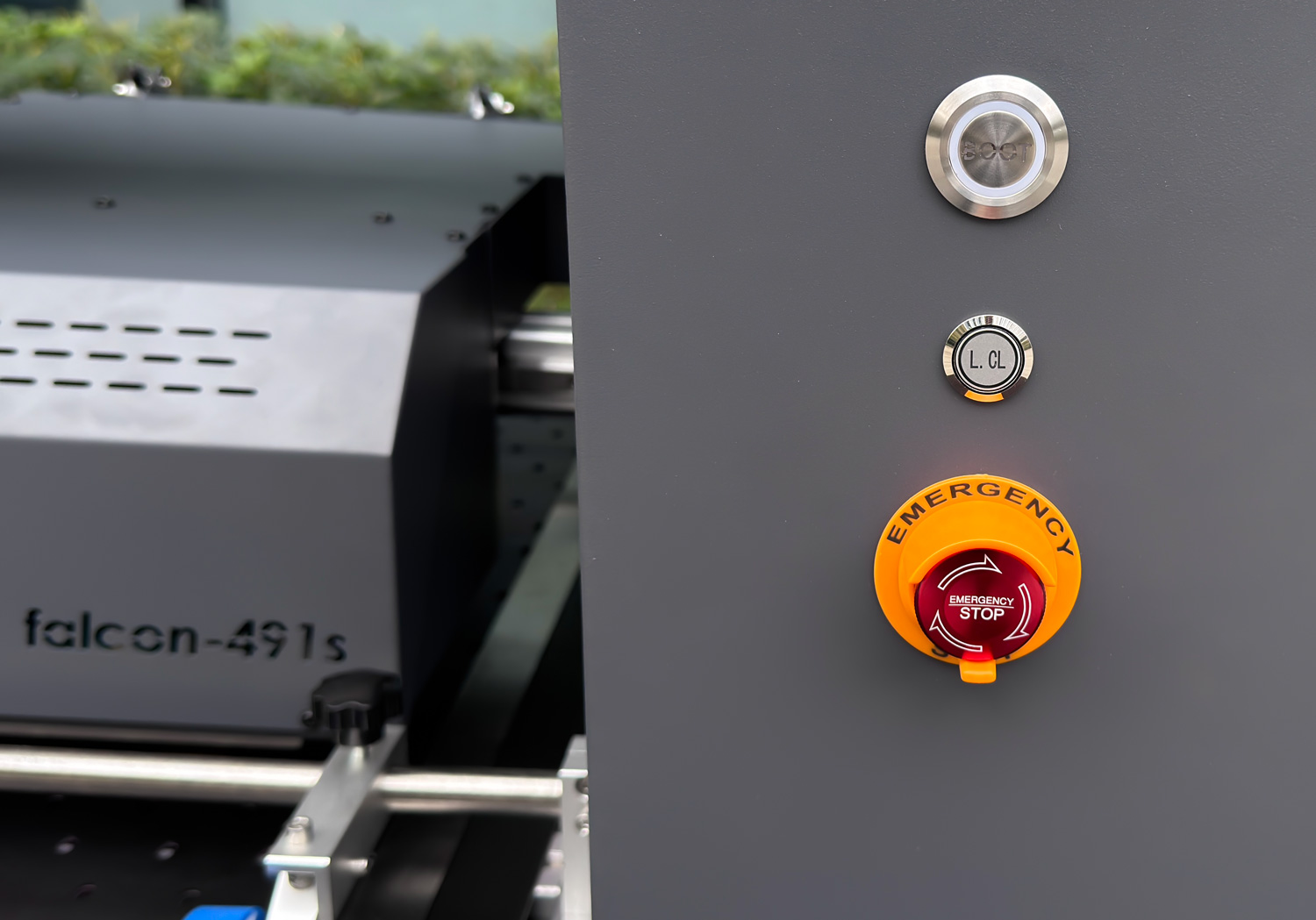

The metal emergency stop switch can quickly stop the machine to ensure the safety of both the equipment and the operator

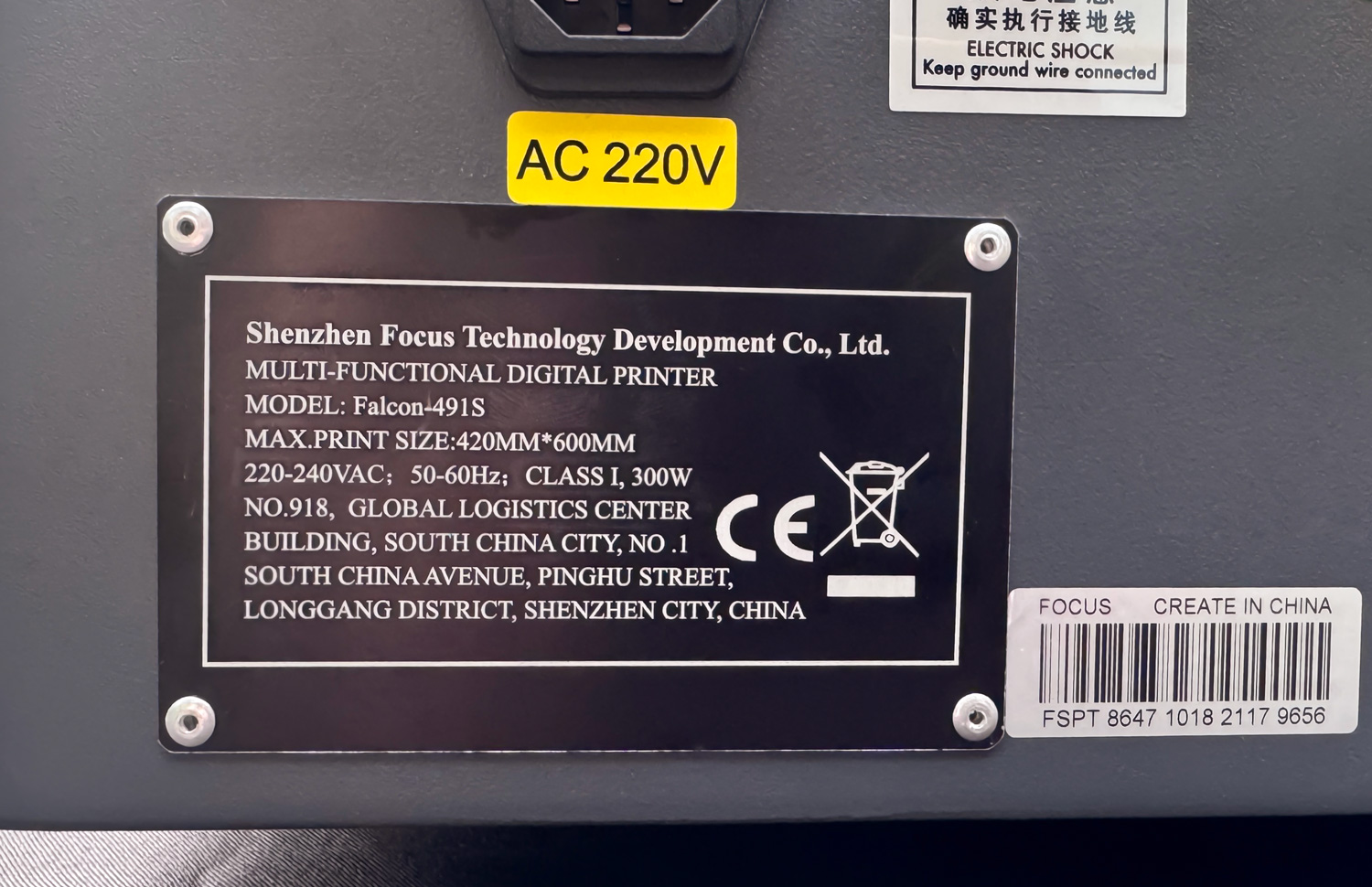

Factory serial number tracking enables convenient customer maintenance and after-sales support monitoring
Powerful control board assume high speed and high quality inkjet printing
Original cap station keep wet and waste ink pad with foam make head maintain job easier
Clean button with relay can clean and maintain print head easier
1200dpi PageWide technology can achieve 210mm or 300mm wide-format printing

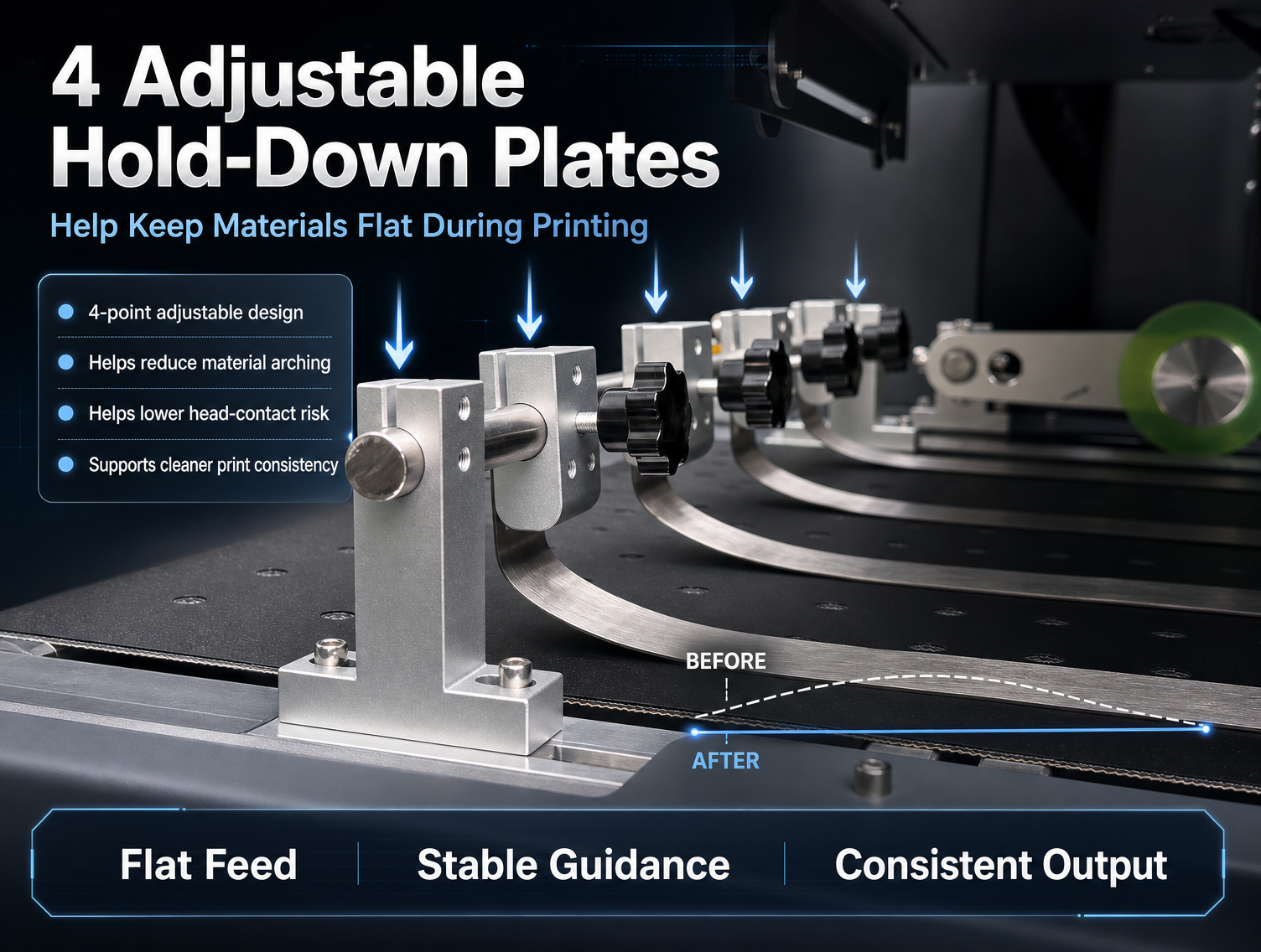

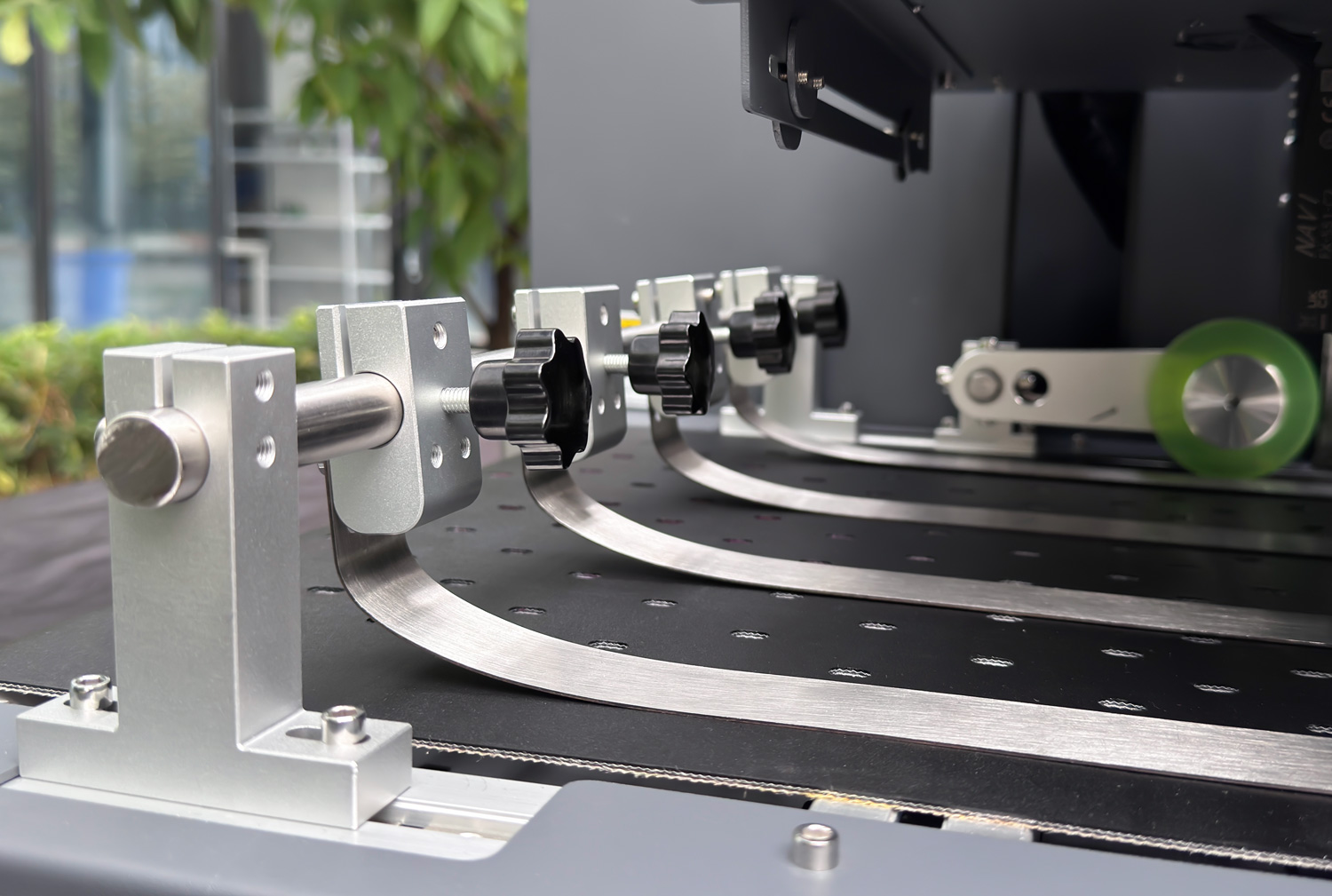

Four adjustable pressure plates prevent printing materials from curling up and scraping the printhead, thereby improving printing quality

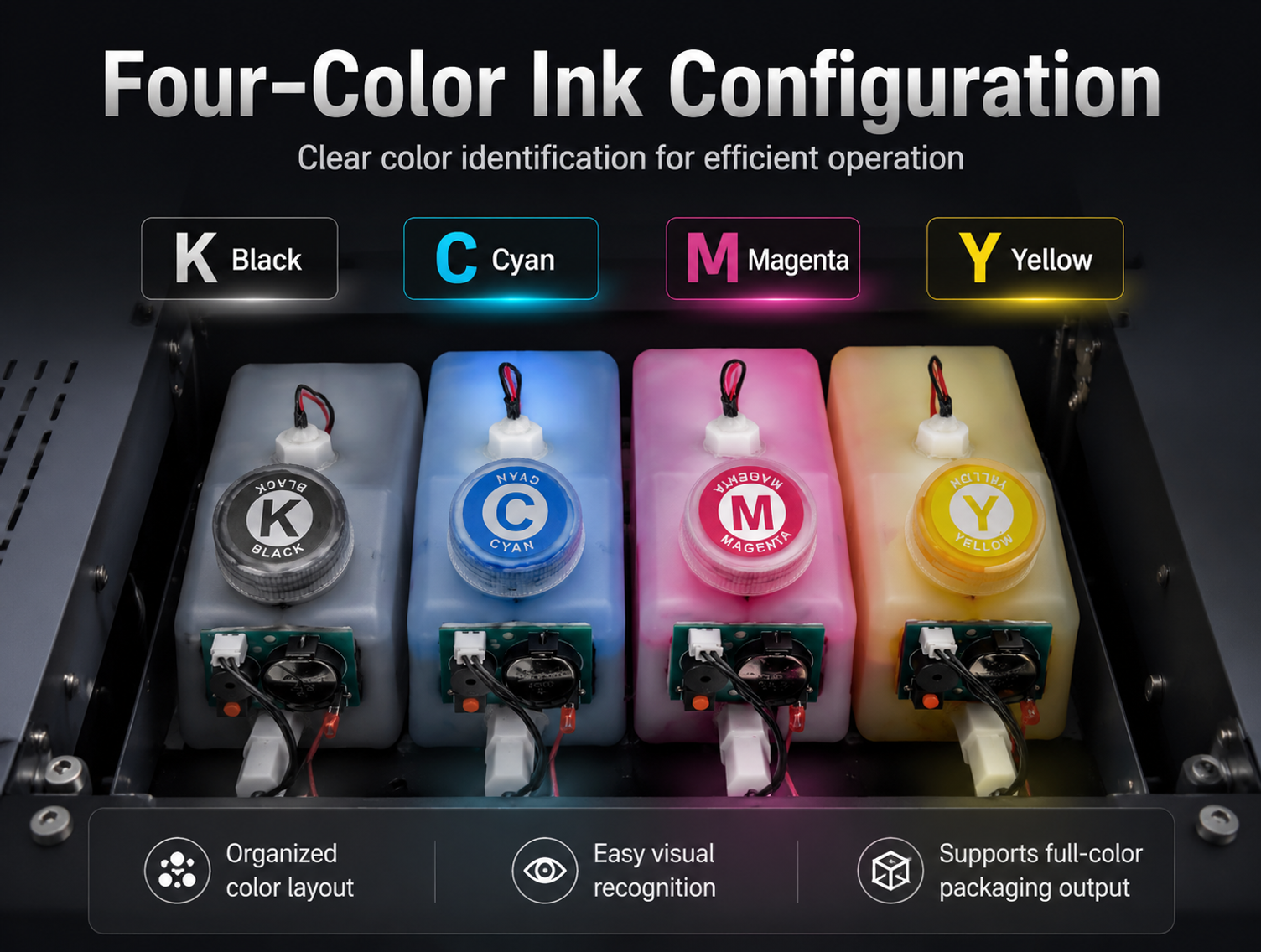

The 500ml large-capacity refillable ink tank with ink shortage alarm ensures continuous high-speed printing of materials
Installed degassing sub tank can degass air on ink supply system to achieve stable printing
