Product Specification
| Type | industrial level uv single pass printer system | Model | Acaleph-891S-i |
| Params | Focus Inc. Acaleph-891s-i Industrial Serier UV Single Pass Printer Specification
Maximum effective printing area：53mm~500mm (Depend on Print Head Ammount)
Print head：SEIKO-RC1536, 2560 / RICOH G5 / RICOH G6 / XAAR2002 / TOSHIBA CF3 CF6
Print Nozzle Ammount ：Depend upon print head model
Printing method：Micro Piezo Inkjet Print Technology
Print resolution (dots per inch)：600DPI*300DPI / 600DPI*600DPI / 600DPI*1200DPI （According to different print head)
Print Head protection technology：Head anti-scratch kit
Print speed ： 10~40meter/min (According to different print model and ink type)
RIP software ：FocusRIP & Others Optional
Accepted image data ：Tiff, Jpeg, Bmp, Pdf...
Control interface ： Touch screen go with PLC
Media type：Bags, Carton, Plastic, Glass, Ceramic, Metal...
Media Pre-process ：Plasma / Flame / Corona Depend upon needs
Media size：Maximum load size 600mm * Y no limited
Maximum thickness：9.05" in. (300mm)
Media margin aligment：Laser aligment： 4~6pcs Automatic Laser guideline margin
Media height control：Electronic Touch screen control electronic up down motion
Auto media Feeder ：Electronic Automatic Frection Feeder For Normal soft and hard rigid media such as corrugated board, carton, card etg. feeding; Optional
Electronic Automatic Air vacuum Feeder：For extra soft material such as plastic film, soft bags etg. feeding
Ink supply method：Negotive pressure management with dual filt system
Type： UV curing ink / Aqueous ink
Color：Primer, Black, Cyan, Magenta, Yellow + Spot color White, Glossy Depend upon needs
Ink tank capacity： 1500ml per each color
UV curing system：Curing technology LED UV Curing, 405nm, Sectional curing type
Cooling technology ：Water circulation cooling
Media vacuum system：Vacuum power 850W with 4 independent area
Vacuum control： Touch screen control
Main Printer system Size ：147.7" (L) × 44.6" (W) × 77.3" (H) in. (3,752 × 1132 × 1,963 mm) Main printer
Frection Feeder Size：28.3" (L) × 33.7" (W) × 45.0" (H) in. (721 × 858 × 1,145 mm)
Air vacuum Feeder Size ：36.4" (L) × 46.5" (W) × 39.2" (H) in. (926 × 1,181 × 998 mm)
Packing size ： 143.9" (L) × 52.9" (W) × 90.9" (H) in. (3,655 × 1,345× 2,310 mm) Main printer
49.2" (L) × 45.3" (W) × 43.7" (H) in. (1,250 x 1,150 x 1,110mm) UV System
Net weight： 3,322 lb (1,510kg) Main printer with UV System
Gross weight ： 4,158 lb (1,890 kg) Main printer with UV System
Working Temperature： 51 to 86 °F (18 to 30 °C)
Working Humidity：35% ~ 75%
Compressed air supply ：Minimum 80psi 6bar, 60L volume /Each Plasma required
Included items ： Print cable, cleaning kit, Fliter, USB Flash of technical data
Connectivity ： Ethernet cable
Power requirements： 42A Single-phase 220~240VAC, 50HZ/60HZ
Acoustic noise level： 75 dB (A) or less
Software System Requirements
Print control System Windows® 7/10/11 (64 bit) Recommend
(Bundled) CPU Intel® Core™ i5, 2.7 GHz or more
RAM 8 GB or more
Video card and monitor A resolution of 1,152 × 854 with 16 bit color or higher
HDD Install space 1 GB or more
Working space 300 GB | Material | Print beam: High-strength extruded aluminum alloy
Main machine frame: Thickened welded carbon steel
HP print head assembly: Heat-resistant industrial plastic + precision alloy metal parts
X/Y linear guide rail: High-hardness steel
Conveyor belt: Anti-offset PU/TPU/PET/PP rubber
Correction roller: Stainless steel with silicone coating
Ink tank & ink stack: Anti-corrosion modified PP plastic
Printhead protective cover: Aluminum alloy
Side wing & outer housing: Galvanized steel sheet
Drive motor shell: Cast aluminum alloy
Transmission gear: Quenched alloy steel
Ink pipeline: Fluorine rubber
Touch screen shell: Impact-resistant ABS plastic |
| Applicable Industry | industrial special demand material fast uv single pass printing manufacturing, pvc sheet panels manufacturing, non-woven bags manufacturing printing industry | |

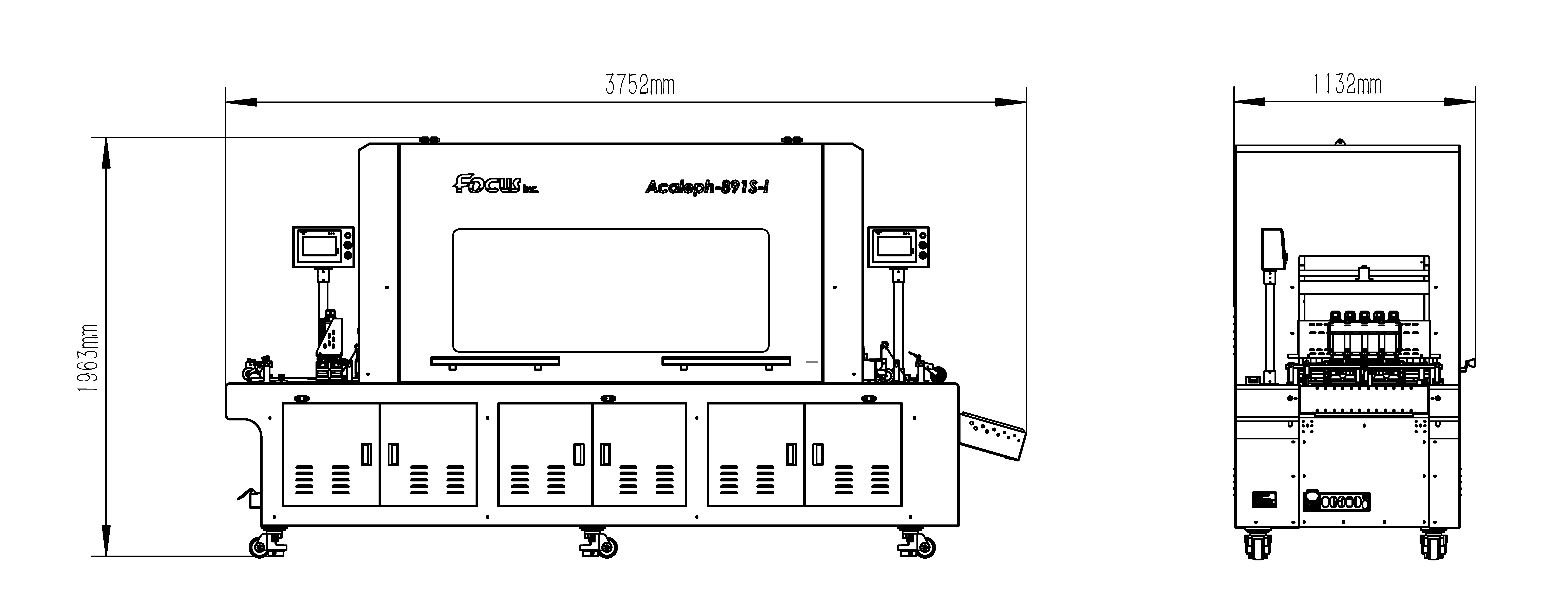

Focus Acaleph-891s-i Industrial high-spec model size diagram
uv single pass printer series factory Showroom banner
Aceleph 891s Seiko printer advantages

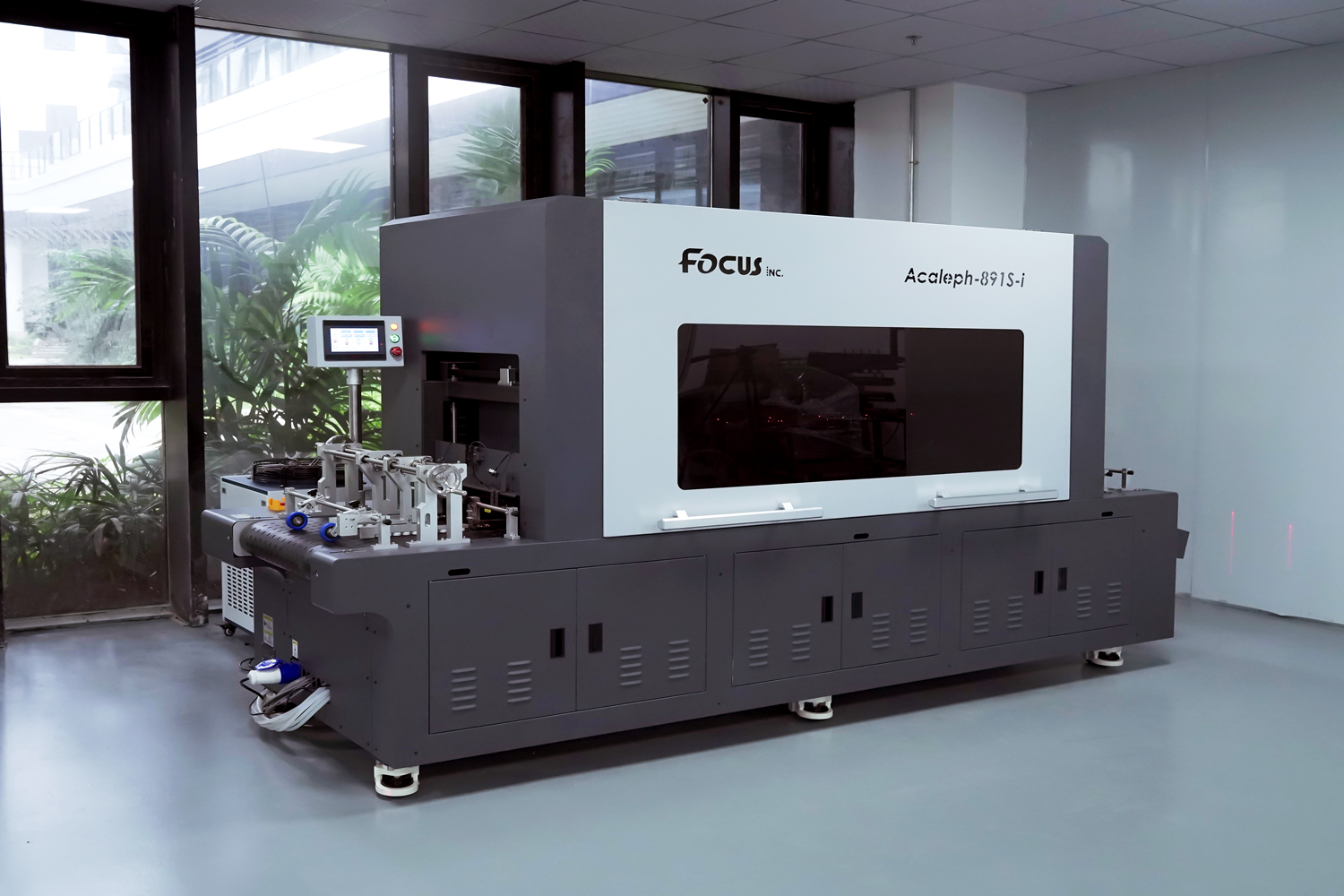

Ricoh inkjet uv single pass printing machine for pvc sheet decoration panels printing system

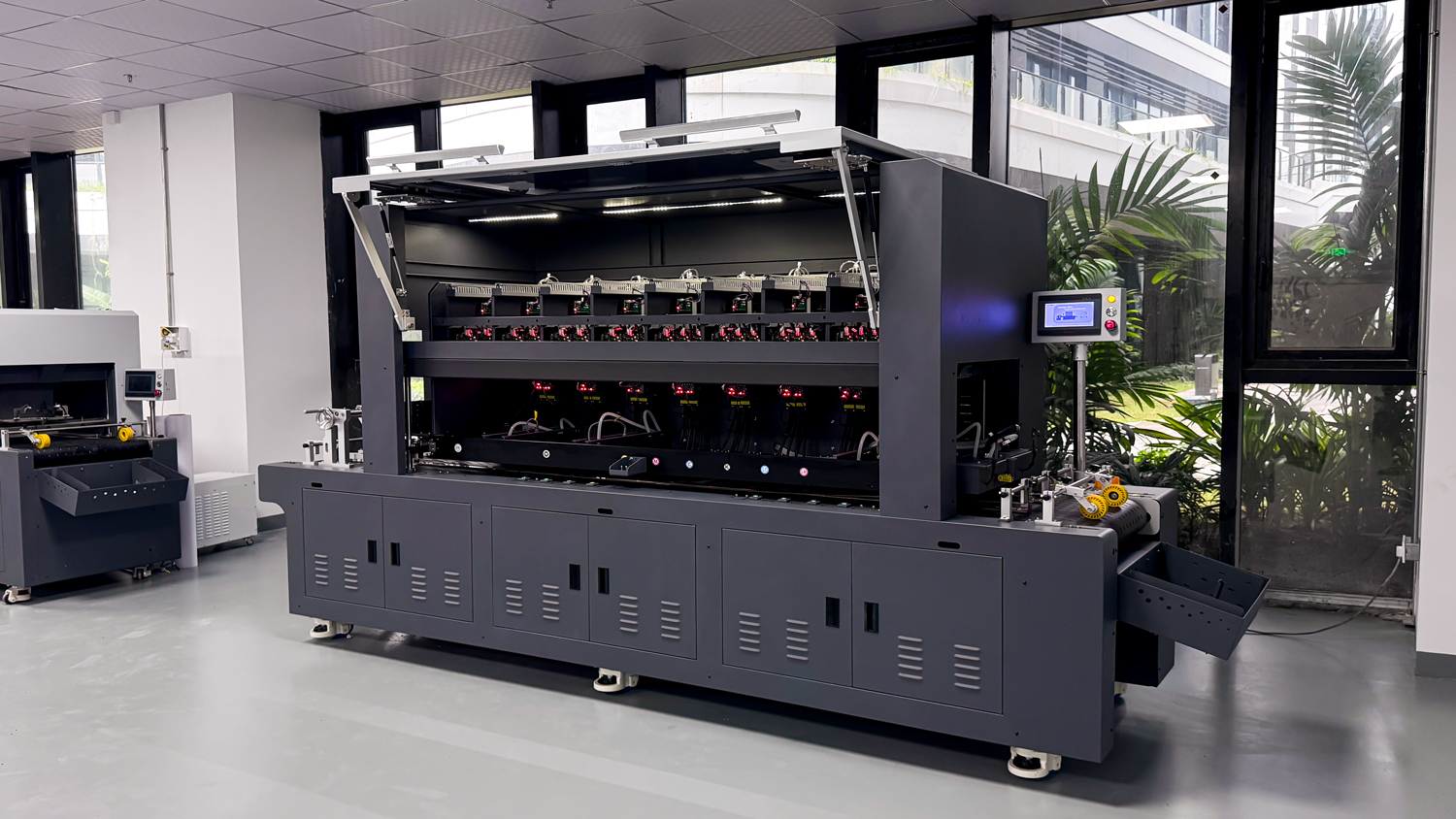

single pass printer can print on demond in fast speed, digital inkjet printing machine

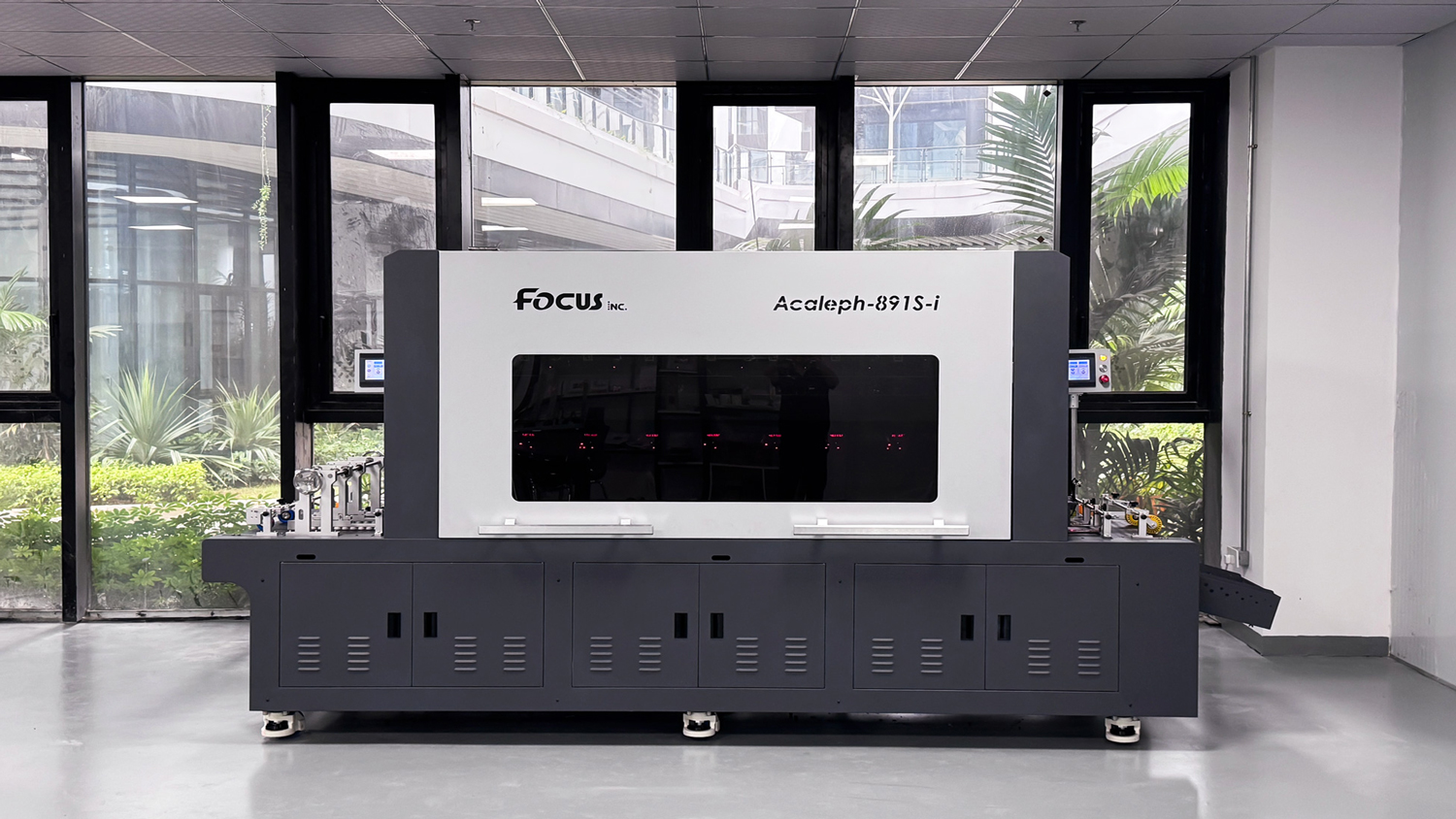

front view of Acaleph-891S-i industrial level fast printing single pass inkjet digital printer system

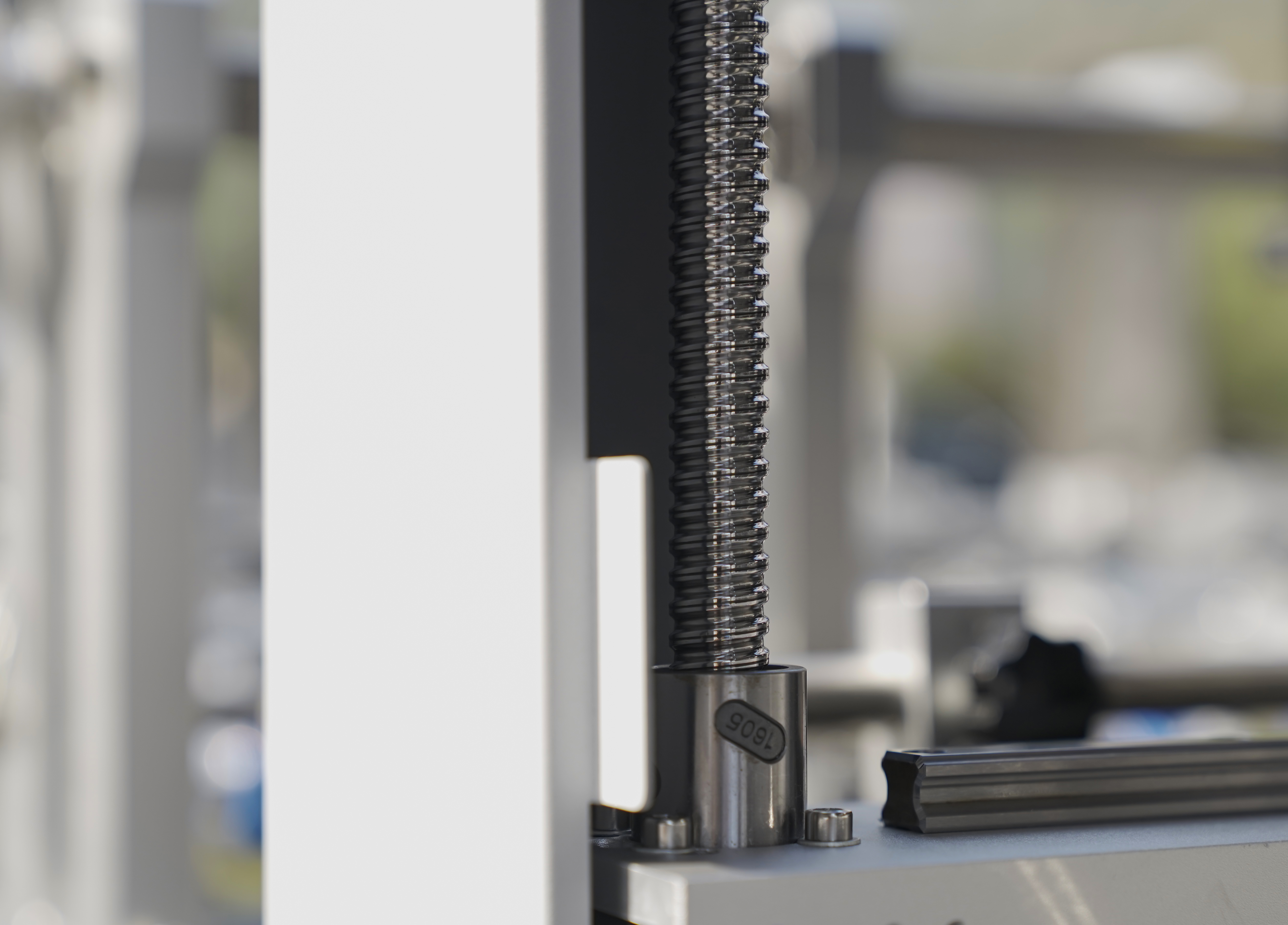

The four-axis lead screw lifting mechanism of the printing platform greatly improves printing accuracy.

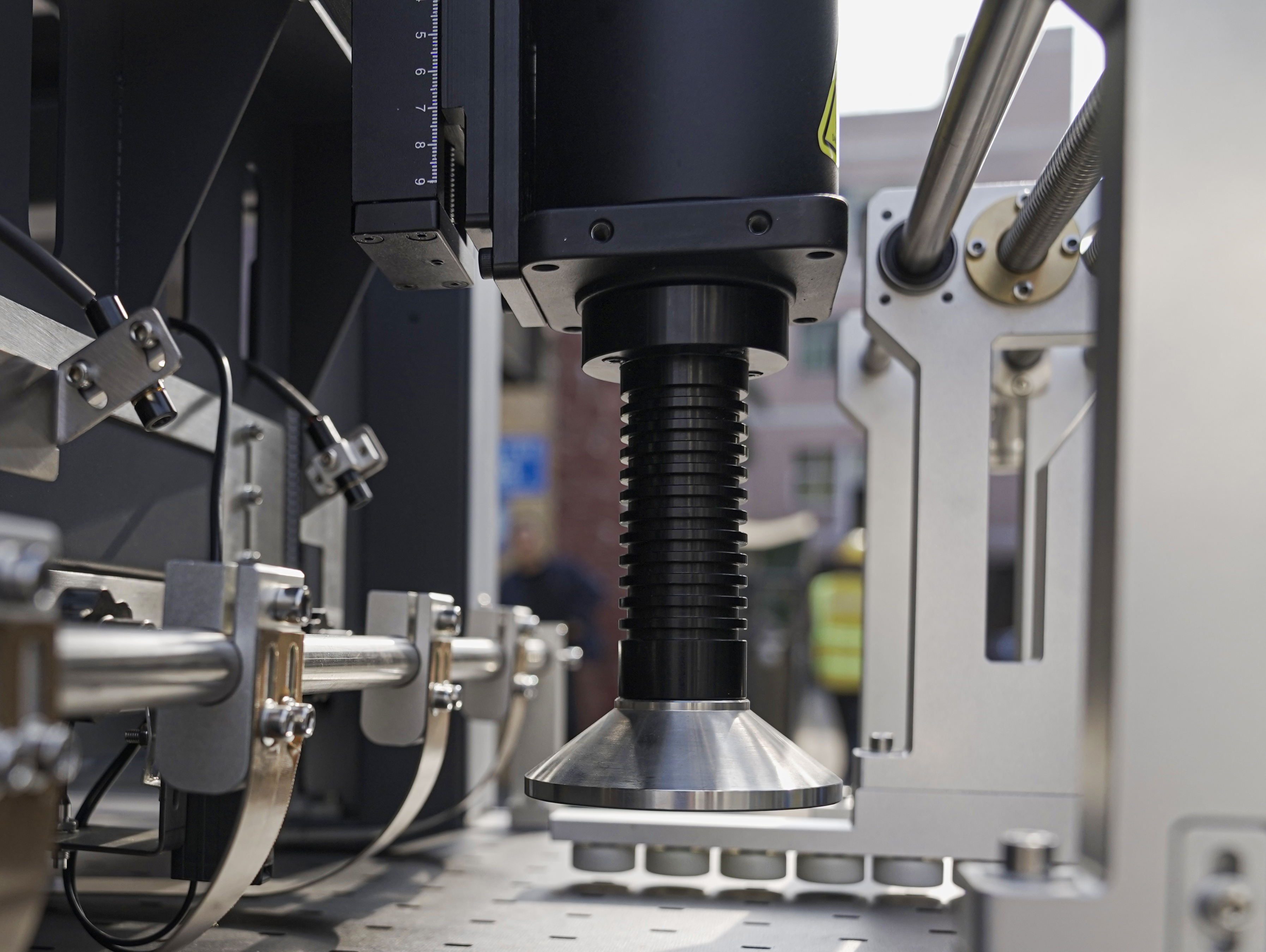

Equipped with a paper clamping strip, it facilitates printing of materials with arched or curled edges.

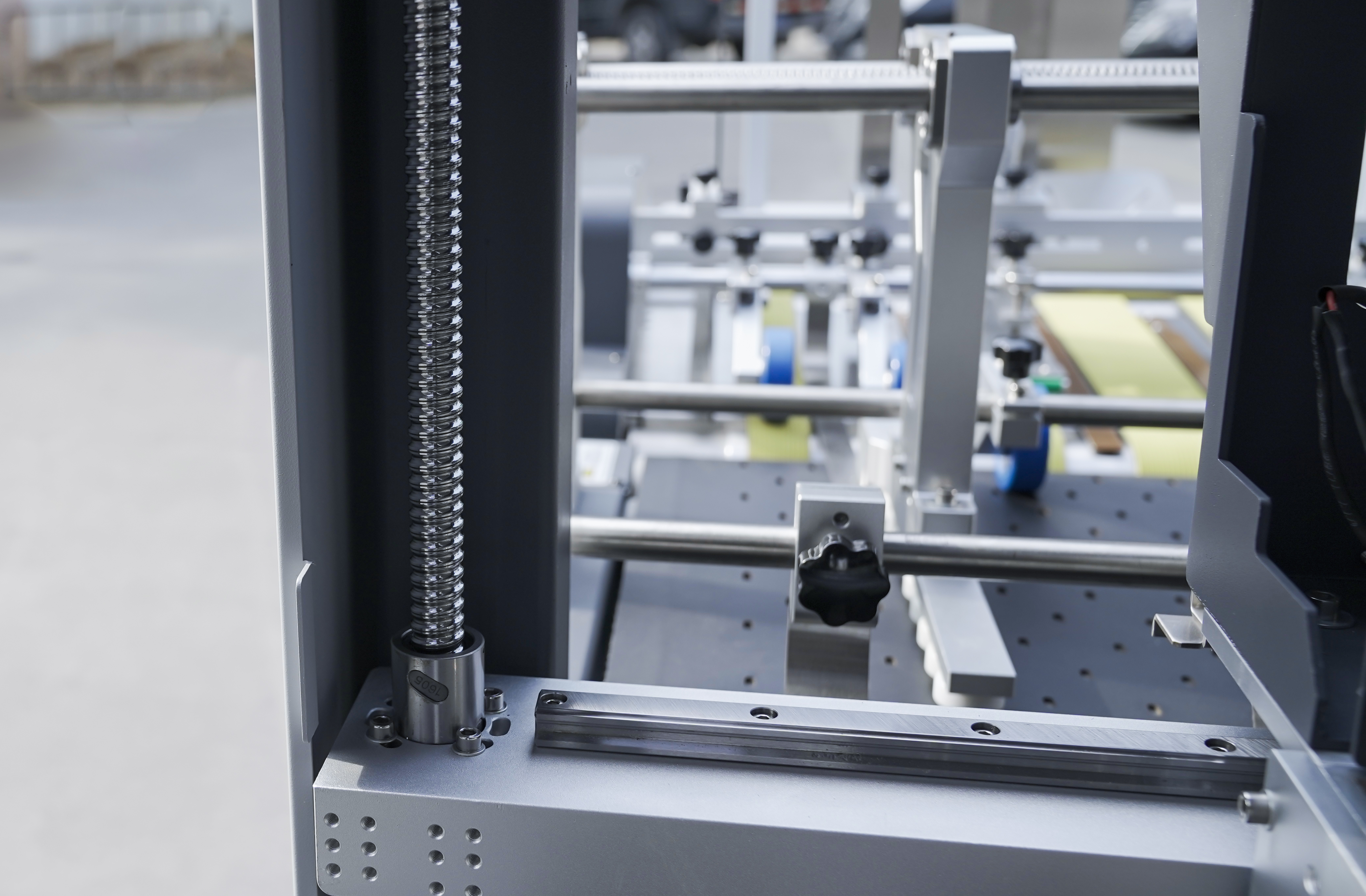

Supports a maximum lifting height of 300mm - compatible with printing materials of various heights.
The knurled surface finish on the motion rollers ensures smooth and slip-free material feeding.

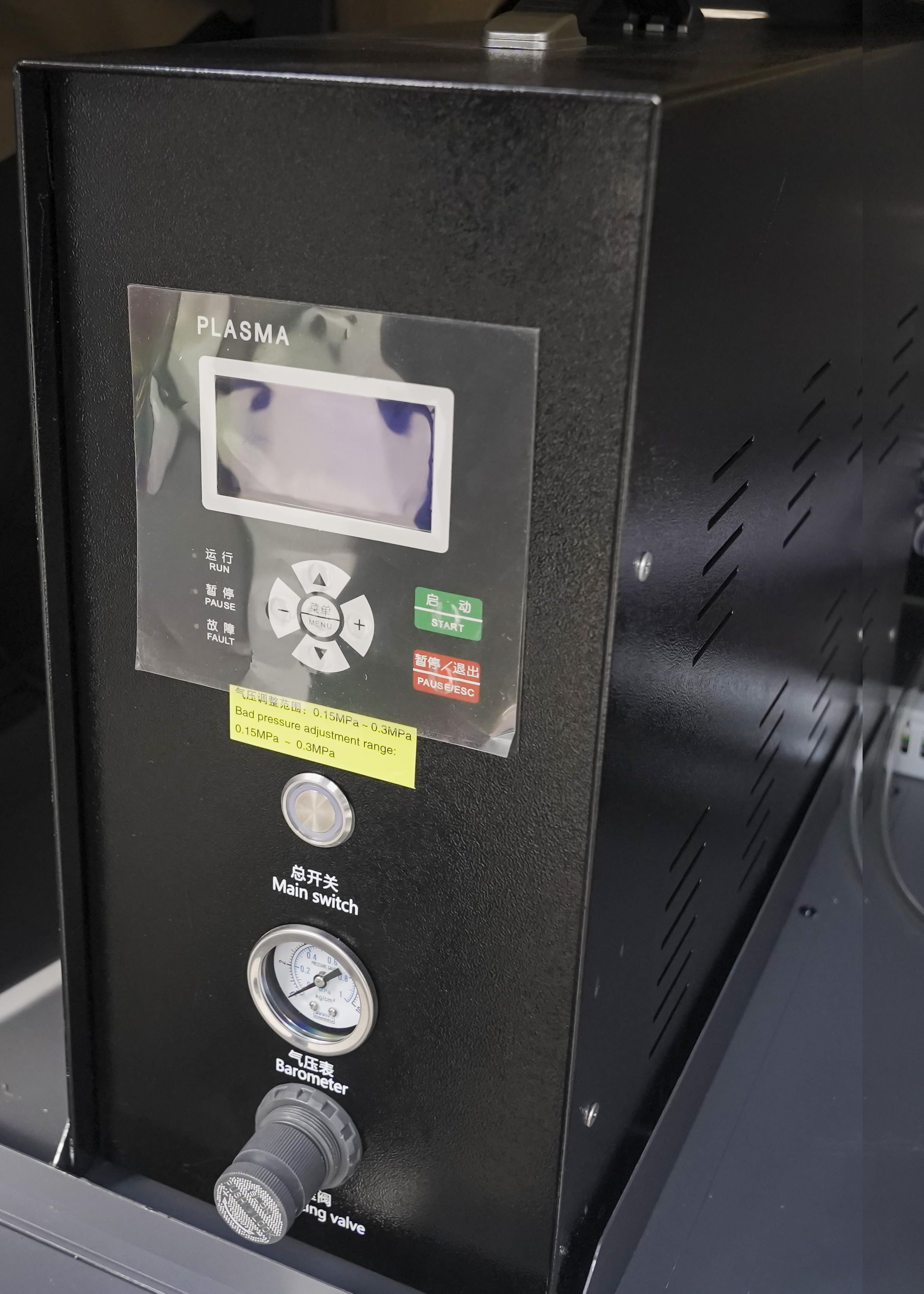

The integrated plasma generator can automatically adjust the plasma intensity to suit different materials.
2500PIR high-precision meter wheel-Y-axis high-precision running printing
Laser sensors are used to automatically sense the thickness of printing materials.
The 65-degree moderately hard paper feed sun wheel ensures safer, smoother, and more mark-free feeding.

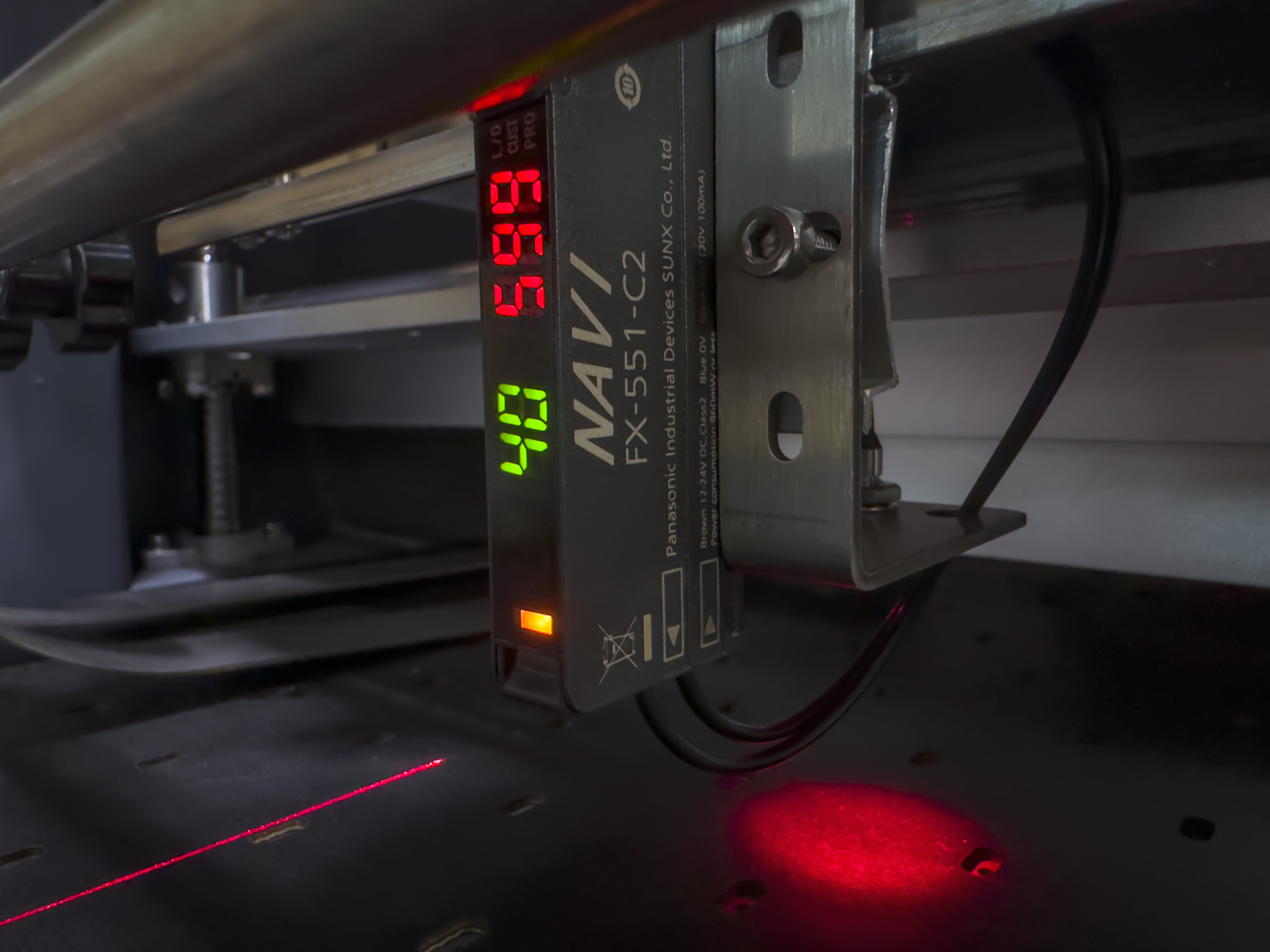

Highly sensitive paper feed sensor quickly detects printing materials
The feeding correction system is equipped with a high-brightness laser correction system, making feeding more precise.
Real-time PID ink circulation control box makes ink supply safer and more stable.
Can be used with advanced vacuum adsorption pleating machines

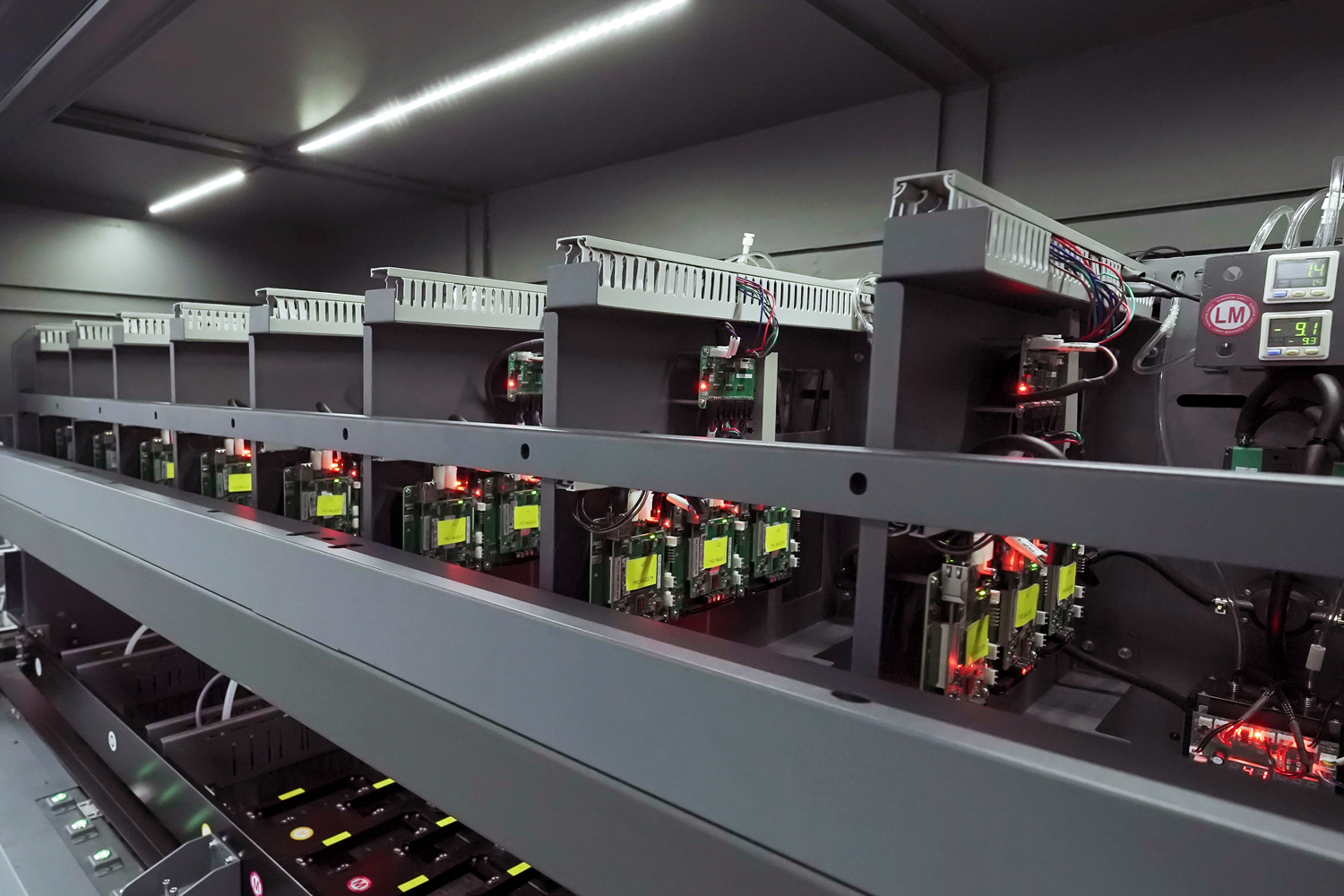

A powerful and stable printhead control unit drives high-precision, high-speed printing.
Multi-array printhead splicing printing enables high-precision printing of materials of different widths.

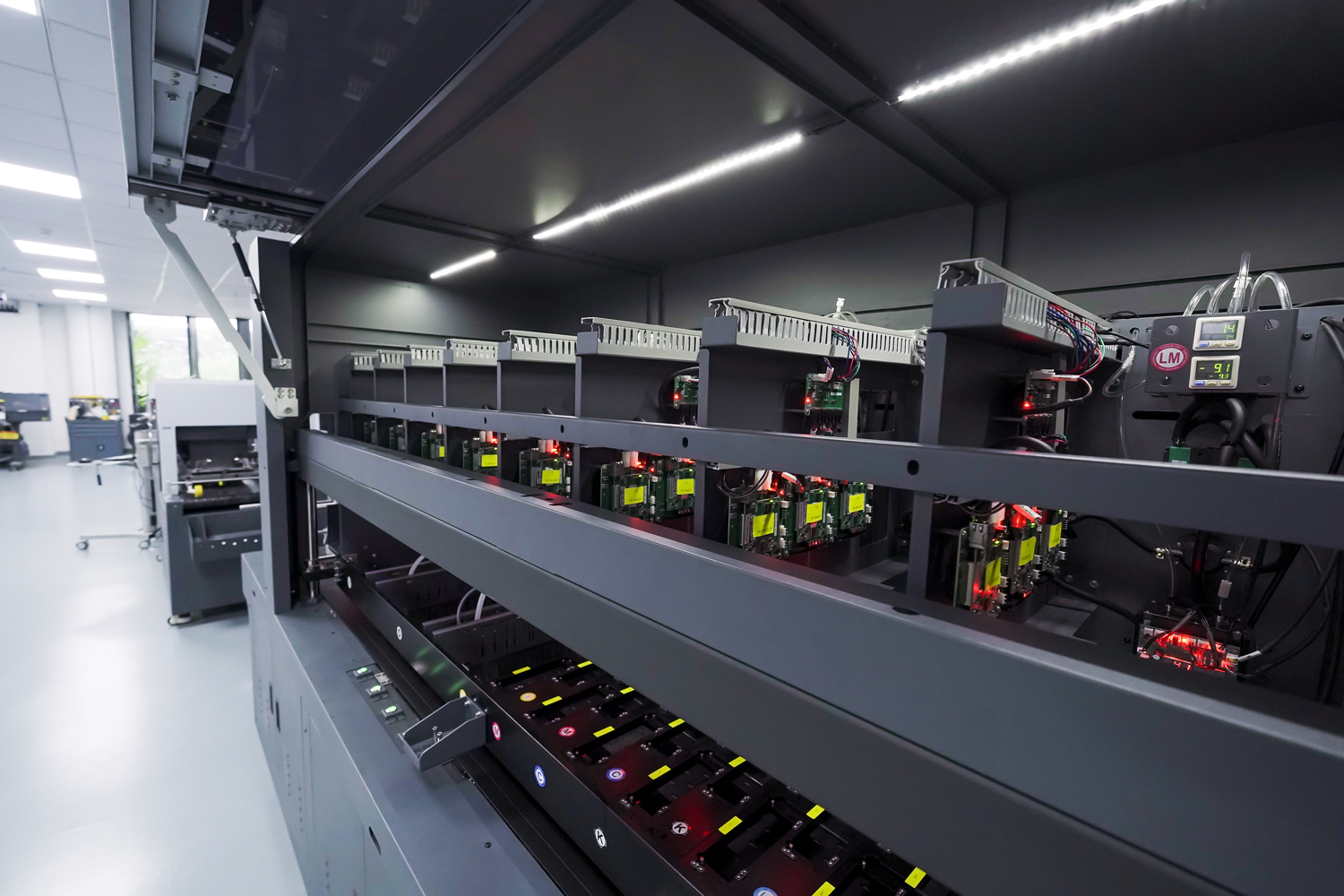

Supports printing with a maximum effective print width of 500mm and various printhead solutions including SEIKO, RICOH, TOSHIBA, and XAAR.
It can be equipped with several plasma pretreatment units to improve ink adhesion and printing accuracy.

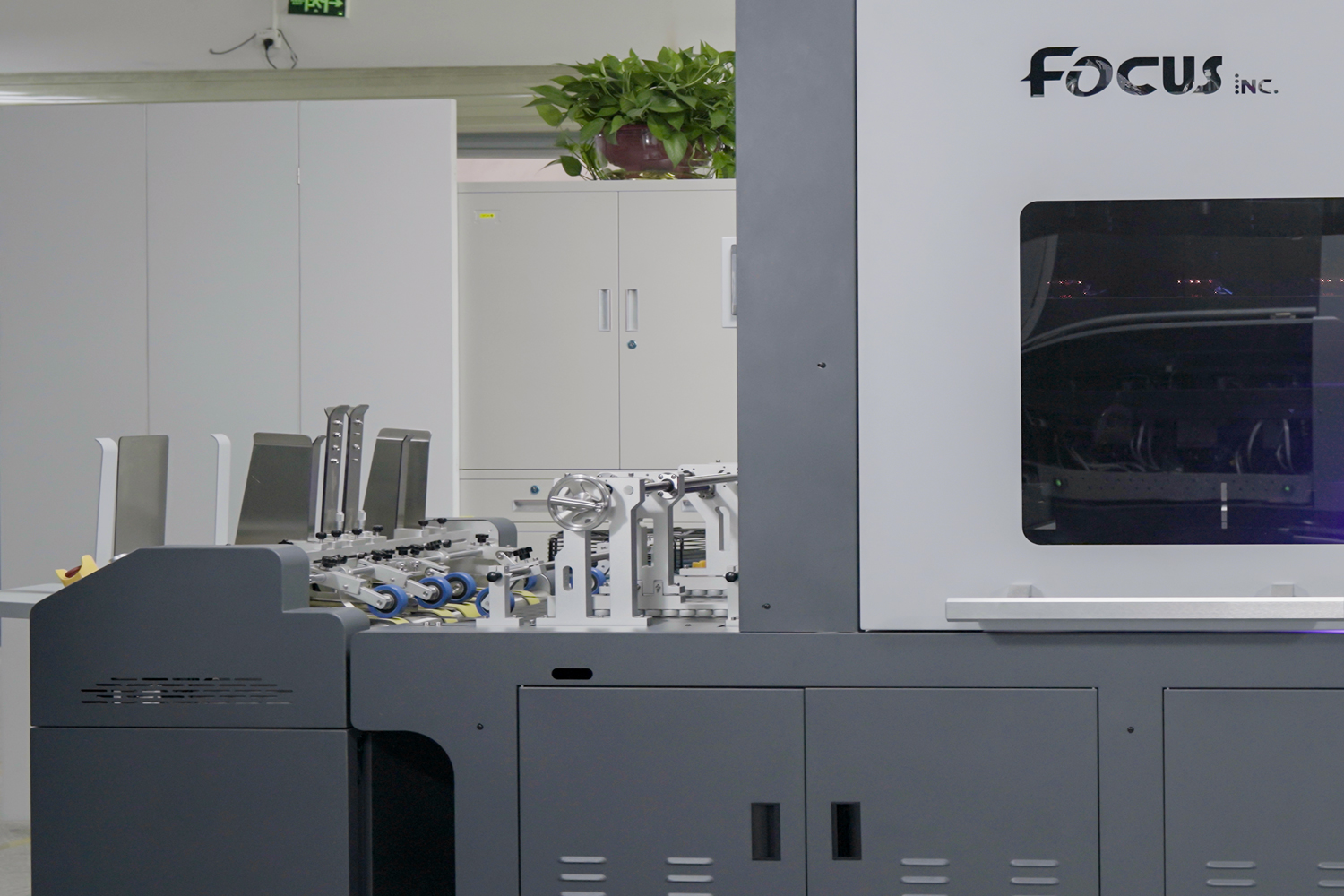

Can be used with advanced friction collating machines

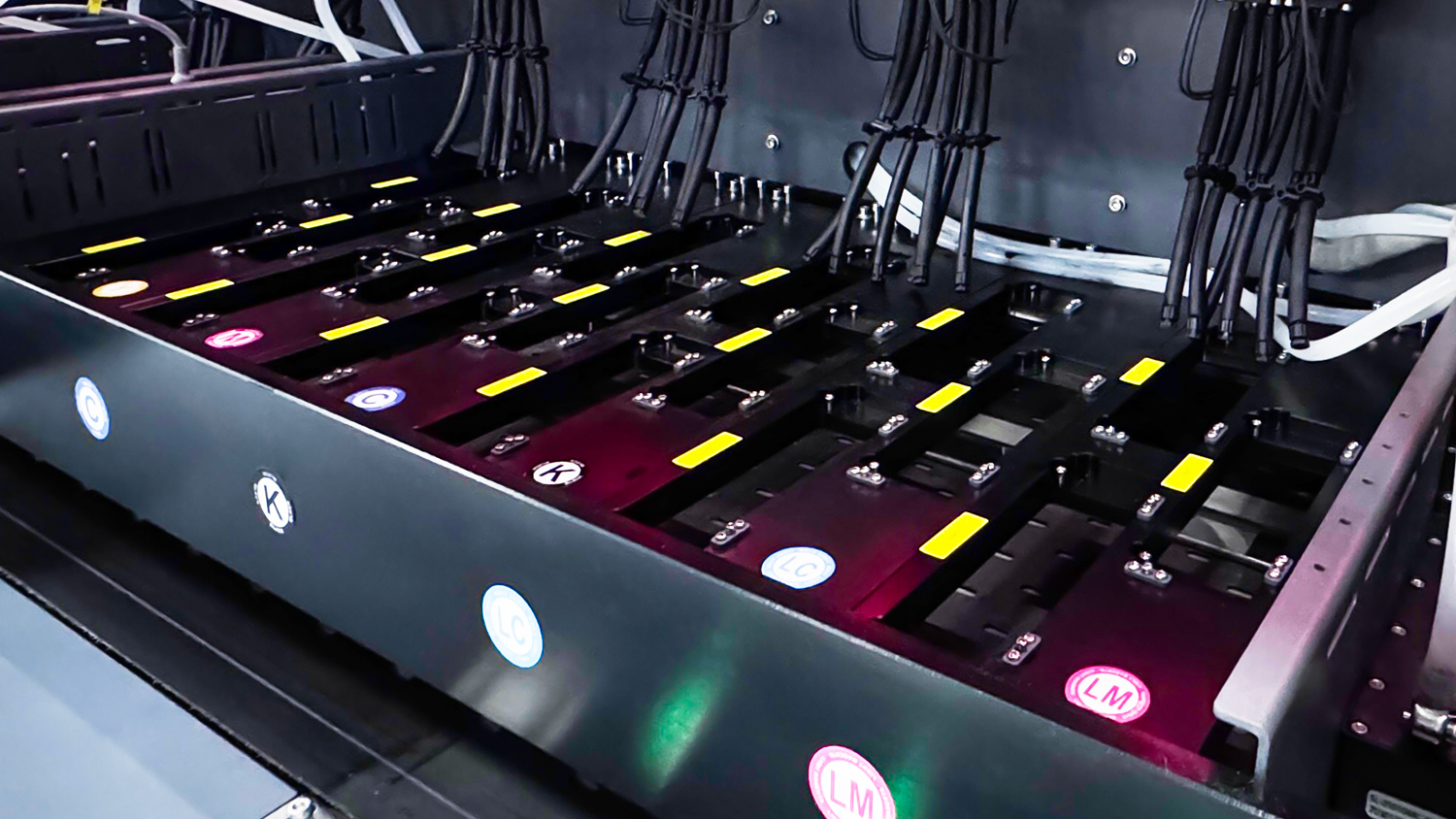

Supports simultaneous printing of base coat, white, color, and spot colors.
Adjustable feed guide head allows for more precise and faster material placement.

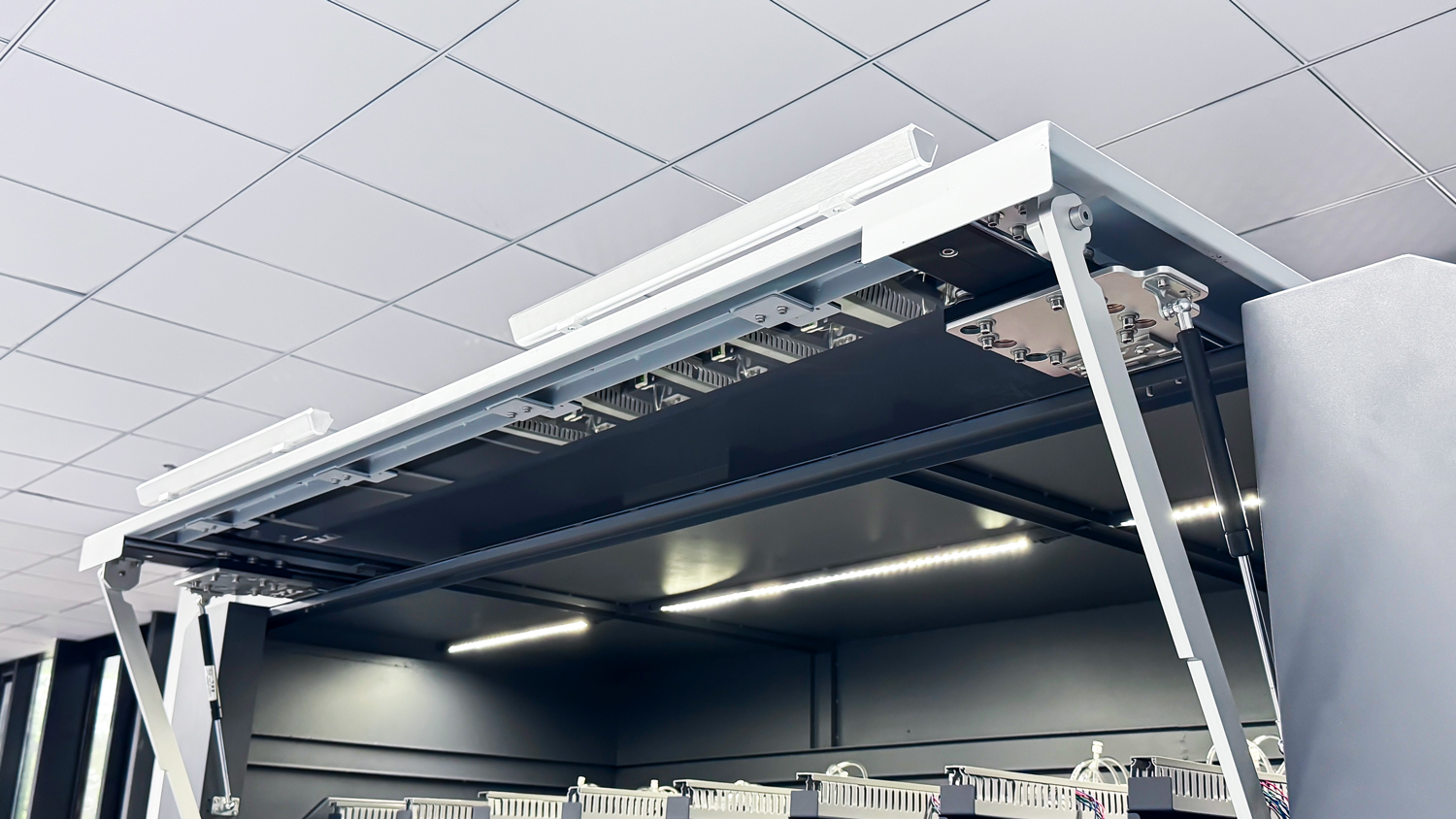

The gliding top cover design is easy to operate and greatly saves space in the equipment.

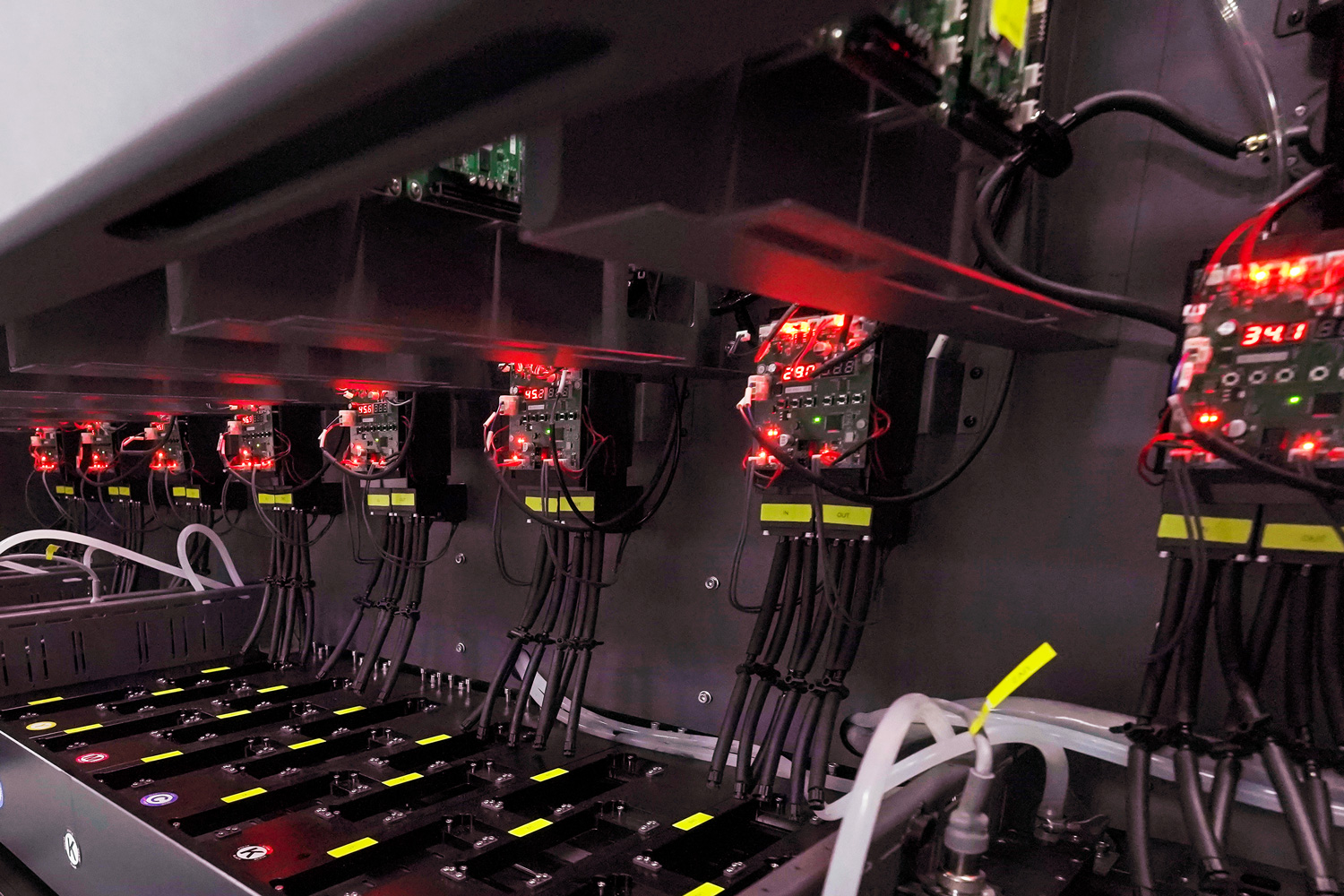

Real-time PID quantization gain ink path circulation control technology makes printing ink supply more stable and precise.
Modular quick-alignment nozzle mounting plate design - easy nozzle installation and commissioning

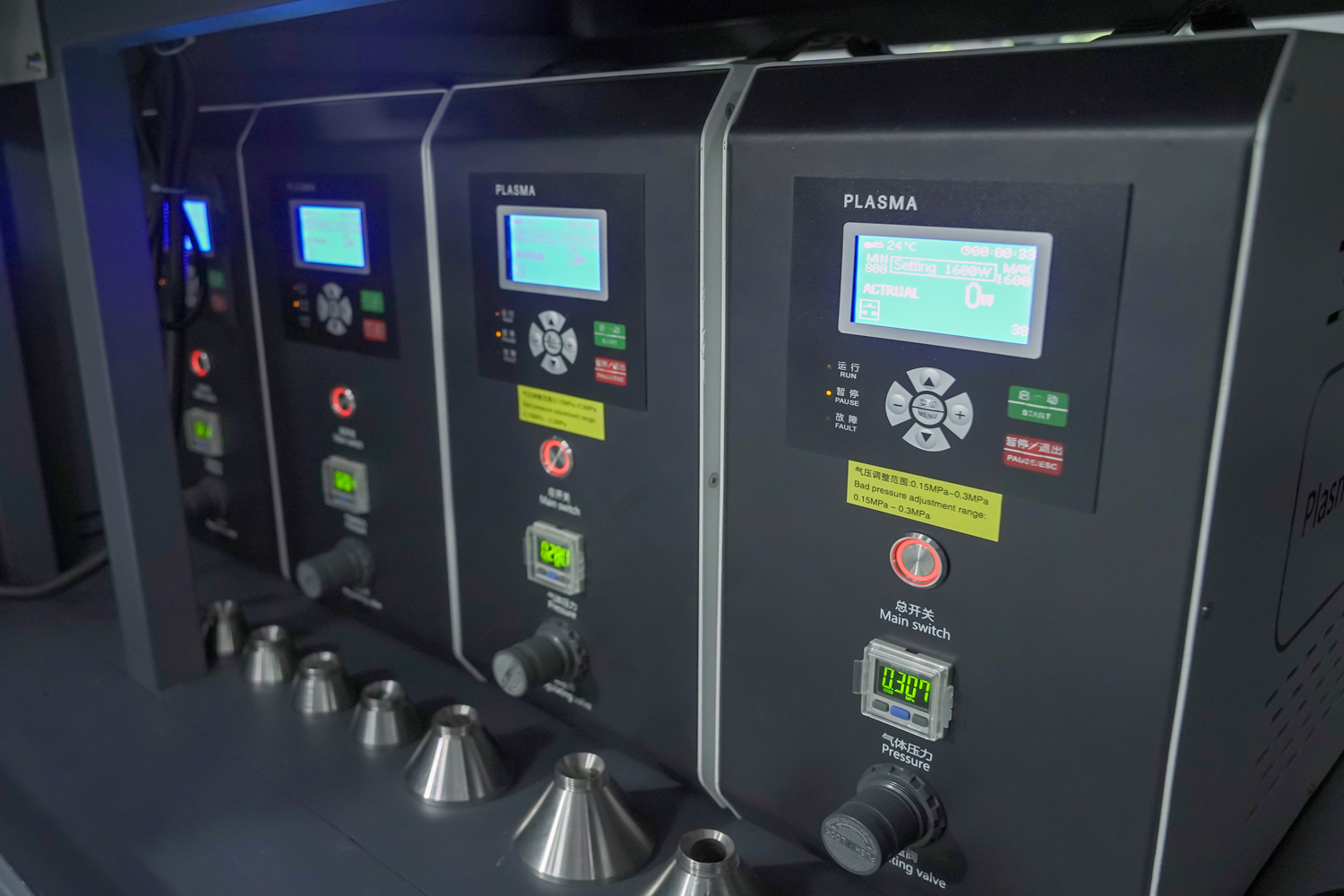

The 1600W high-power plasma processing control box can be used with flame nozzles of different sizes.
The segmented adjustable UV water-cooled circulating curing system enables curing, leveling, and drying of different color combinations.

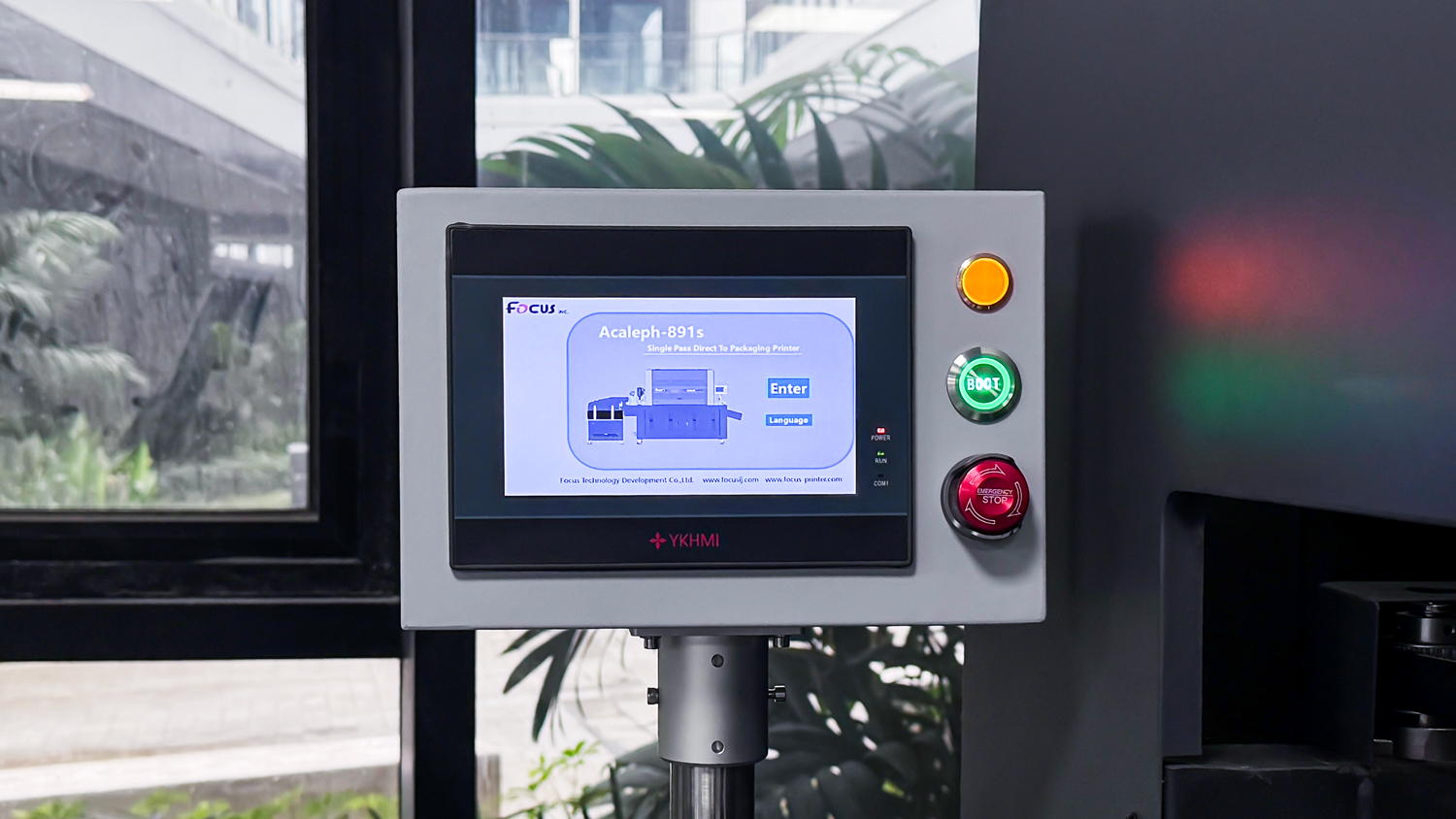

Touchscreen control makes the machine easy to operate and use.
High-power LED UV curing technology enables faster and more thorough curing after printing.

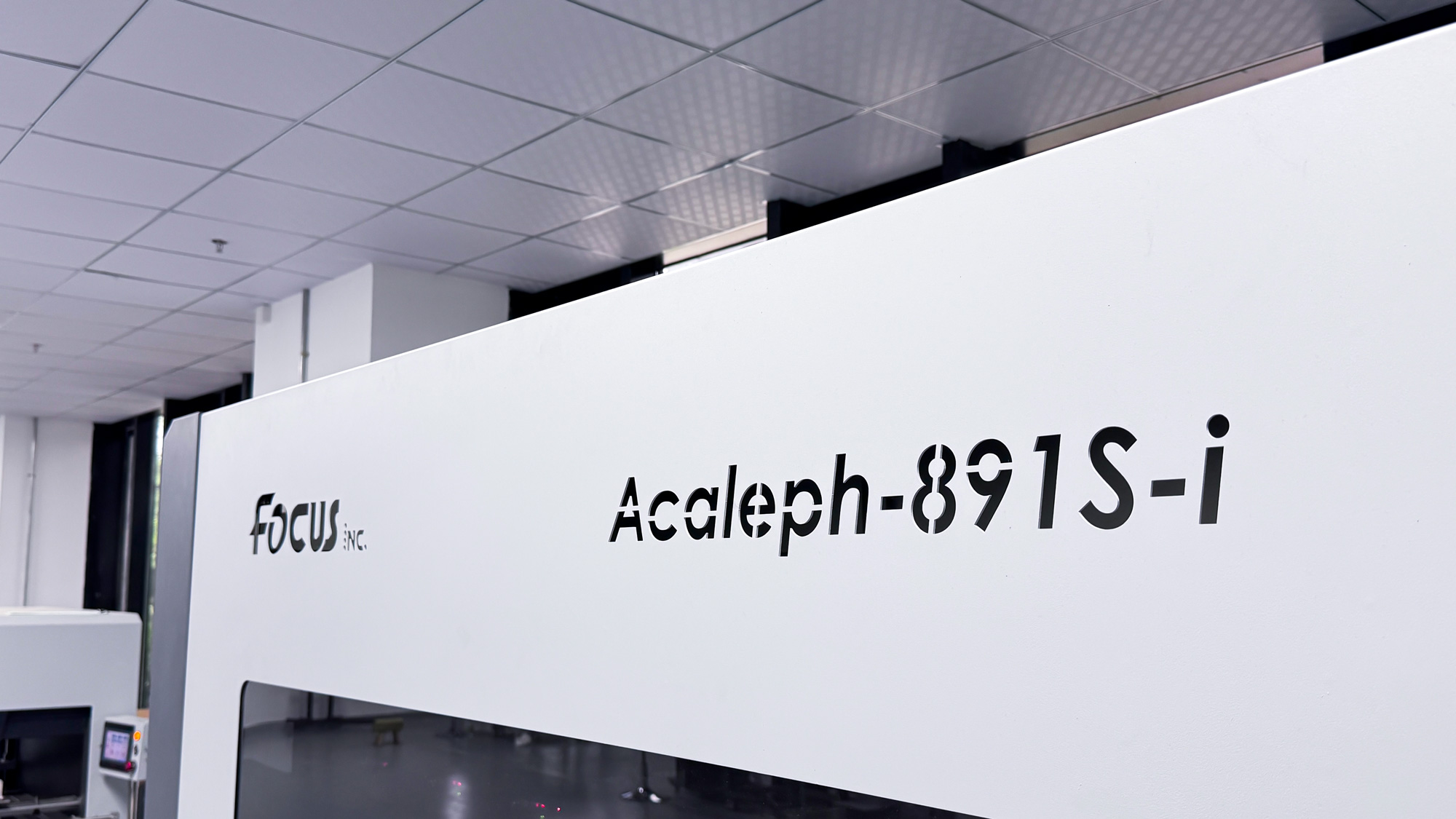

The whole-machine laser cutting and welding technology greatly improves the assembly precision of the whole machine.
Seiko 1536 high-speed inkjet printing technology - enables high-speed inkjet printing up to 26mm.
42mm ultra-thick vacuum partition adsorption platform for printing soft materials
