Cobra-1815S Single Pass QR Code Printer for Express Transit Boxes
Optimized for logistics and express delivery industries, this Cobra-1815S configuration is used by corrugated box manufacturers to print variable data such as QR codes, serial numbers, and shipping marks on turnover boxes. The friction-type automatic stack feeder handles bulk boards, enabling seamless one-pass printing without plate making.
Key Selling Points
- Variable data printing: dynamic QR codes and unique serial numbers require no plates and switch instantly.
- Automatic stack paging: one-time multiple cardboard sheets can be stacked and separated automatically.

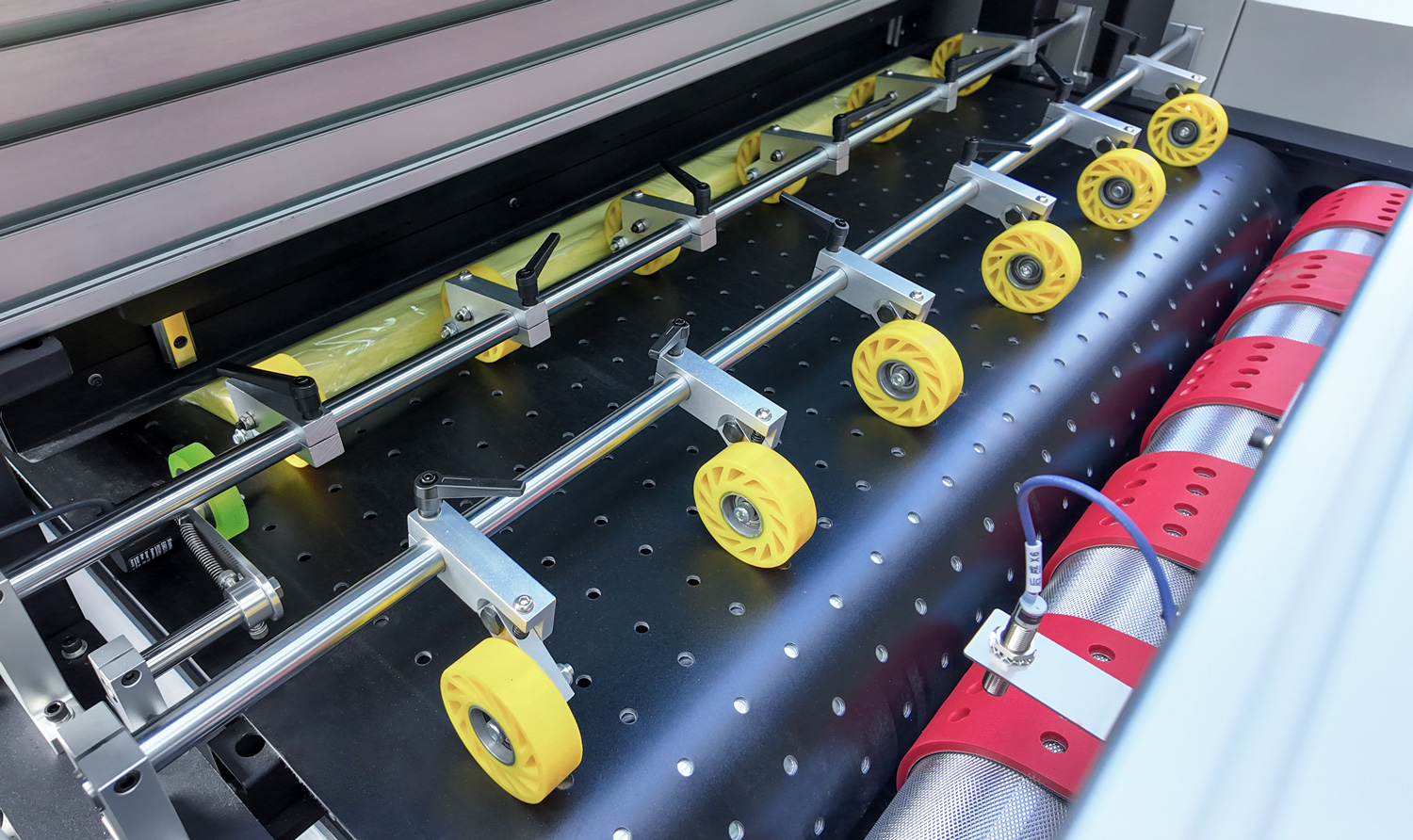

- Seamless feeding unit: front-feed separation unit integrates smoothly with the printing unit to prevent jams.
- High precision: 1200x1200dpi max resolution ensures scannable barcodes and QR codes on rough surfaces.
- Cost-effective: no plate-making, reduced waste, supports small-batch on-demand orders.
Technical Specifications
| Parameter | Value |
|---|
| Max feed width | 1800mm (70.86") |
| Max material thickness | 60mm |
| Print head | HP A3/A4 Pagewide, up to 5 heads |
| Resolution | up to 1200x1200dpi |
| Speed | 10–35 m/min |
| Ink | CMYK, 1500ml per color, aqueous/pigment |
| Feeding | Friction automatic stack feeder |
| Control | Touch screen + PLC |
| Machine size | 3180×2200×1820 mm |
| Weight | 1650 kg net |
Models and Options
Available with 1–5 A3 heads. Optional rear conveyor, counting and stacking module, and industrial voltage stabilizer.
Materials and Structure
Knurled roller design increases guide belt friction, preventing slippage and deviation for accurate feeding. Multi-stage vacuum ensures flat material during printing.
Applications
Ideal for express delivery industry transit totes, turnover boxes, shipping marks, and small-batch personalized packaging with variable data.
Customization
Can customize front/rear conveyors, material stacking modules, and specific QR code software integration.
FAQ
Can it print QR codes on dark colored boxes?
Yes, with pigment ink options, and it can print on kraft paper and colored corrugated board with proper ink configuration.
How many boxes per hour can it produce?
At 35 m/min, it can print thousands of boxes per hour depending on size, without plate change delays.
Does it require a dedicated operator?
The machine is automated; one operator can manage feeding and monitoring. Touchscreen control and PLC reduce labor.
What is the MOQ?
1 unit. Flexible delivery terms EXW/FOB/CIF/DDU/DDP/DAP available.
Is after-sales support available?
Yes, pre-shipment testing, video instructions, and remote support are provided.
Can it print variable serial numbers?
Yes, the integrated variable data printing system module supports unique serial numbers for each box.
Inquiry Information
Contact: Linda Tang, info@focusdgt.com, +86 177 6513 2139
