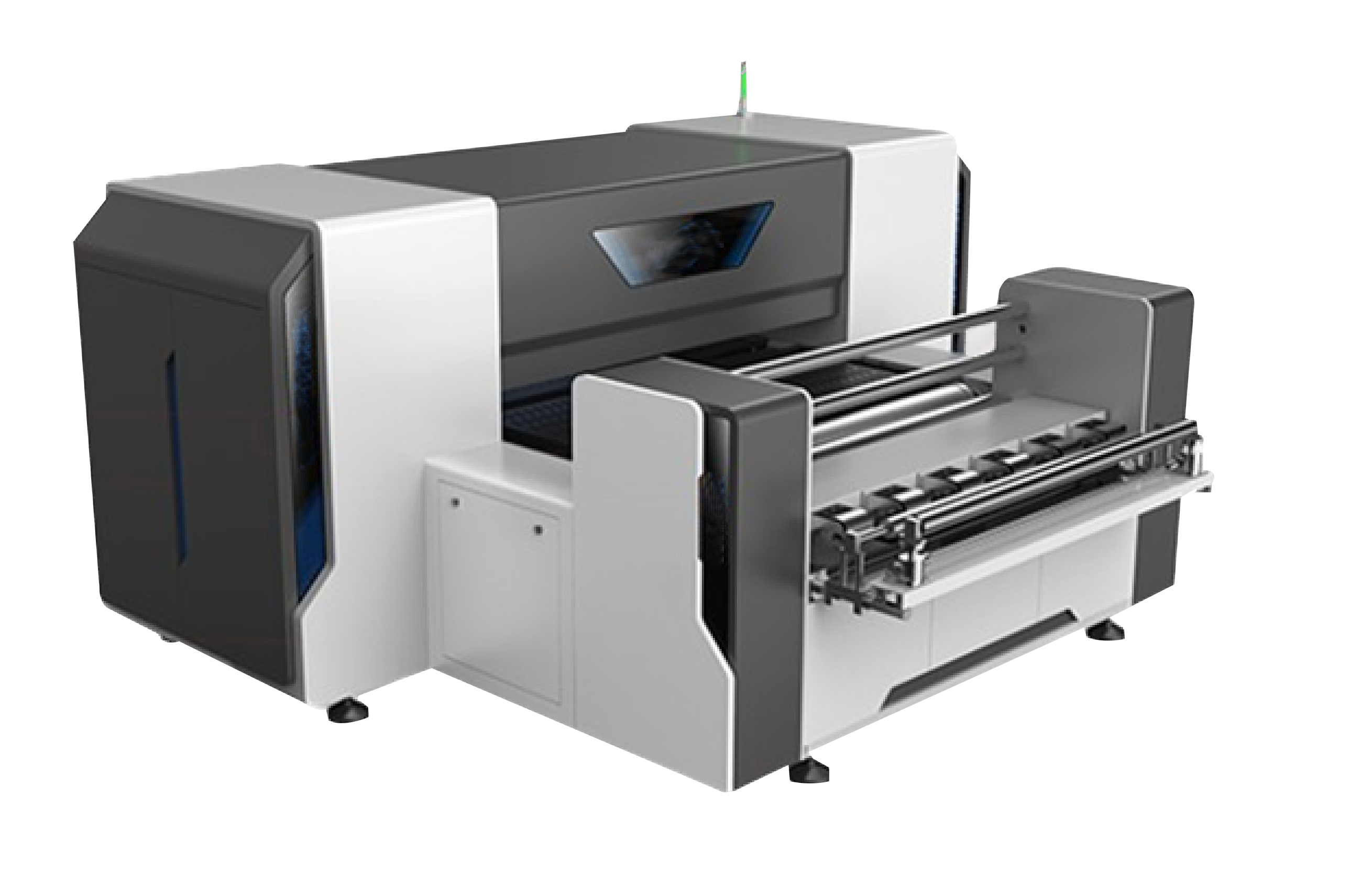

Cobra-1815S 1800mm Single Pass Corrugated Box Digital Printer
Cobra-1815S is a single pass digital inkjet printer engineered for corrugated board, cardboard, Kraft paper, and honeycomb panel printing. It combines HP A3 Pagewide print head technology with a maximum width of 70.86" (1800mm) and a maximum thickness of 2.36" (60mm), delivering high-speed production from 10 to 35 meters per minute.
The machine integrates an electronic automatic media feeder, touchscreen-controlled vacuum transport, and a PLC-based circuit system for stable, long-hour inline production.
Key Selling Points
- 1800mm ultra-wide printing: Load size 70.86" width with Y-axis unlimited length, suitable for large corrugated sheets and honeycomb panels.
- High-speed single pass: 10–35 m/min depending on resolution and configuration, supporting 1200x300 to 1200x1200 dpi.
- 59136 nozzles per head: HP A3 Pagewide print head delivers precise, consistent output with fine text and QR codes.
- 1500ml refillable ink cartridges: Aqueous, dye, pigment, and edible ink options reduce production costs.
- Built-in front-feed separation: Automatic paging of stacked boards improves feeding efficiency and enables seamless inline production.
Technical Specifications
| Parameter | Value |
|---|
| Model | Cobra-1815S |
| Maximum printing area | 35.43" (900mm) × Y no limit, 1~5pcs A3 heads |
| Load size | 70.86" (1800mm) width × Y no limit |
| Maximum thickness | 2.36" (60mm) |
| Print head | HP A3/A4 Pagewide |
| Nozzle count | 59,136 per A3 head (4224 × 14 rows) |
| Resolution | 1200×300, 1200×400, 1200×600, 1200×1200 dpi |
| Print speed | 10–35 m/min |
| Ink type | Aqueous, dye, pigment, edible |
| Ink capacity | 1500ml per color (CMYK) |
| Media types | Corrugated paper, cardboard, cellulose paper, Kraft paper, pizza boxes, carton board |
| Vacuum system | Adsorption vacuum, touchscreen control |
| Machine size | 125.2 × 86.6 × 71.7 in (3180×2200×1820 mm) |
| Net / gross weight | 3630 lb (1650kg) / 4136 lb (1880kg) |
| Power | 20A single-phase 220V, 50Hz |
Models and Options
Cobra-1815S is available with 1 to 5 HP A3 print heads. Optional ink types include aqueous, dye, pigment, and edible ink. The feeding system is automatic with electronic touchscreen control.
Materials and Structure
The machine features a high-strength extruded aluminum alloy print beam, thickened welded carbon steel main frame, anti-offset PU/TPU/PET/PP rubber conveyor belt, and a multi-stage high-power vacuum adsorption system for stable material transport. The hinged front cover prevents dust from entering the printing space, extending equipment lifespan.
Applications
Ideal for corrugated honeycomb cardboard printing manufacturing, including color-printed corrugated boxes for home appliances, digital products, express delivery transit totes, small gift boxes, shoe boxes, pizza boxes, and variable data QR code printing on turnover boxes.
Customization
Focus Inc. offers custom machine width and configuration to meet specific production requirements. Factory capacity: 800 units/year, with R&D team of 6 engineers.
FAQ
What is the maximum printing width of Cobra-1815S?
The maximum load width is 1800mm (70.86"), and the maximum printing area width is 900mm per pass with optional multiple heads.
Can Cobra-1815S print on honeycomb panels?
Yes, it supports corrugated paper, cardboard, cellulose paper, Kraft paper, and carton board, including honeycomb board packaging.
What is the minimum order quantity and delivery terms?
MOQ is 1 unit. Delivery methods include EXW, FOB, CIF, DDU, DDP, DAP. Payment terms are 50/50.
Does the machine support variable data and QR code printing?
Yes, the single-pass digital printer supports real-time variable data, serial numbers, and dynamic QR codes without plate making.
What certifications does the machine have?
The machine complies with CE (LVD & MD) and the factory holds certifications including CE, WEEE, and trademark registration.
Is installation and training provided?
Focus Inc. provides pre-shipment testing, video instructions, and can customize tooling. Contact our team for full after-sales support.
What is the acoustic noise level?
The noise level is 75 dB(A) or less.
